LS & Mustang

To calculate ride height, measure and record dimension "C". See Fig 1, Fig 2, Fig 3, Fig 4 and Fig 6 See RIDE HEIGHT SPECIFICATIONS . If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.

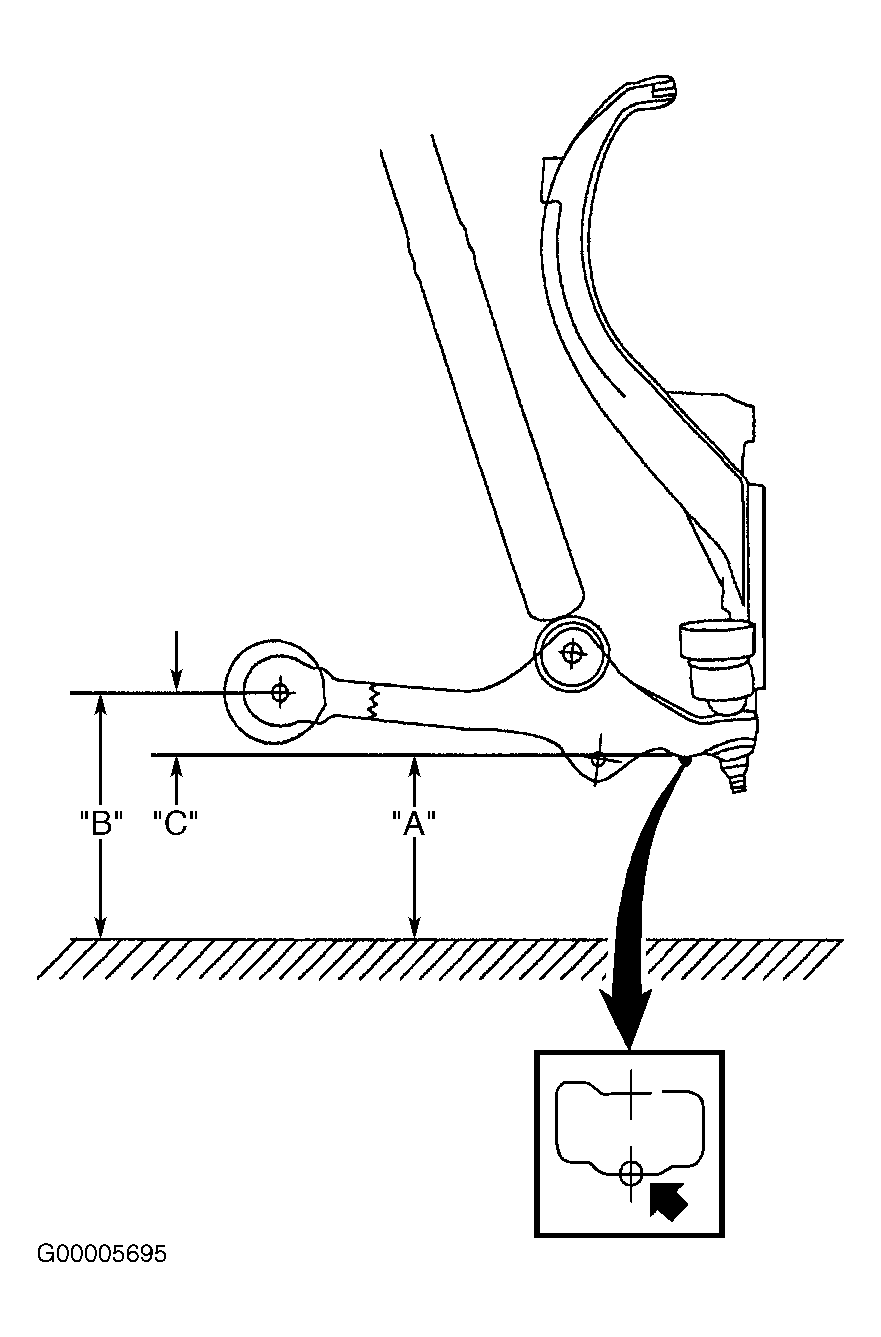

Fig 1: Front Ride Height Measurement (LS)

Courtesy of FORD MOTOR CO.

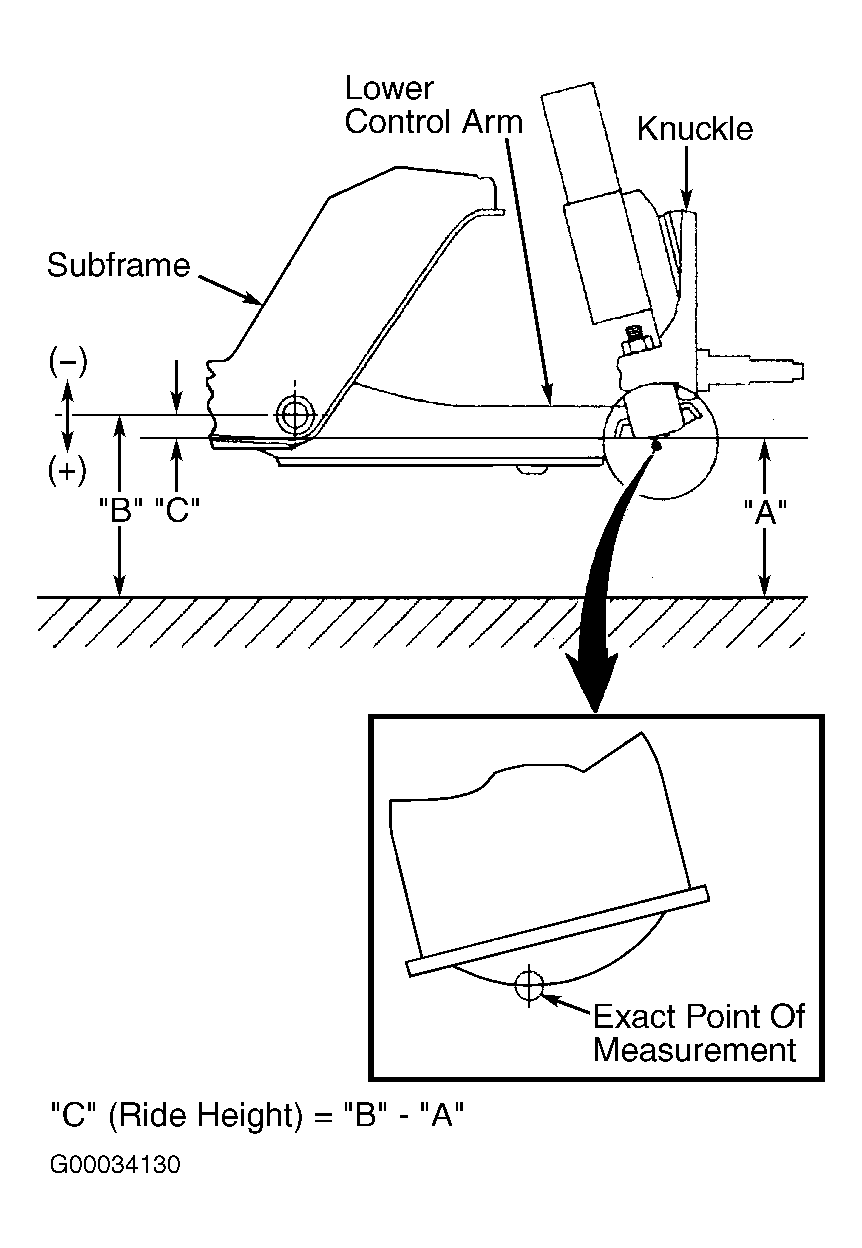

Fig 2: Front Ride Height Measurement (Mustang Shown; Continental, Crown Victoria, Grand Marquis & Town Car Are Similar)

Courtesy of FORD MOTOR CO.

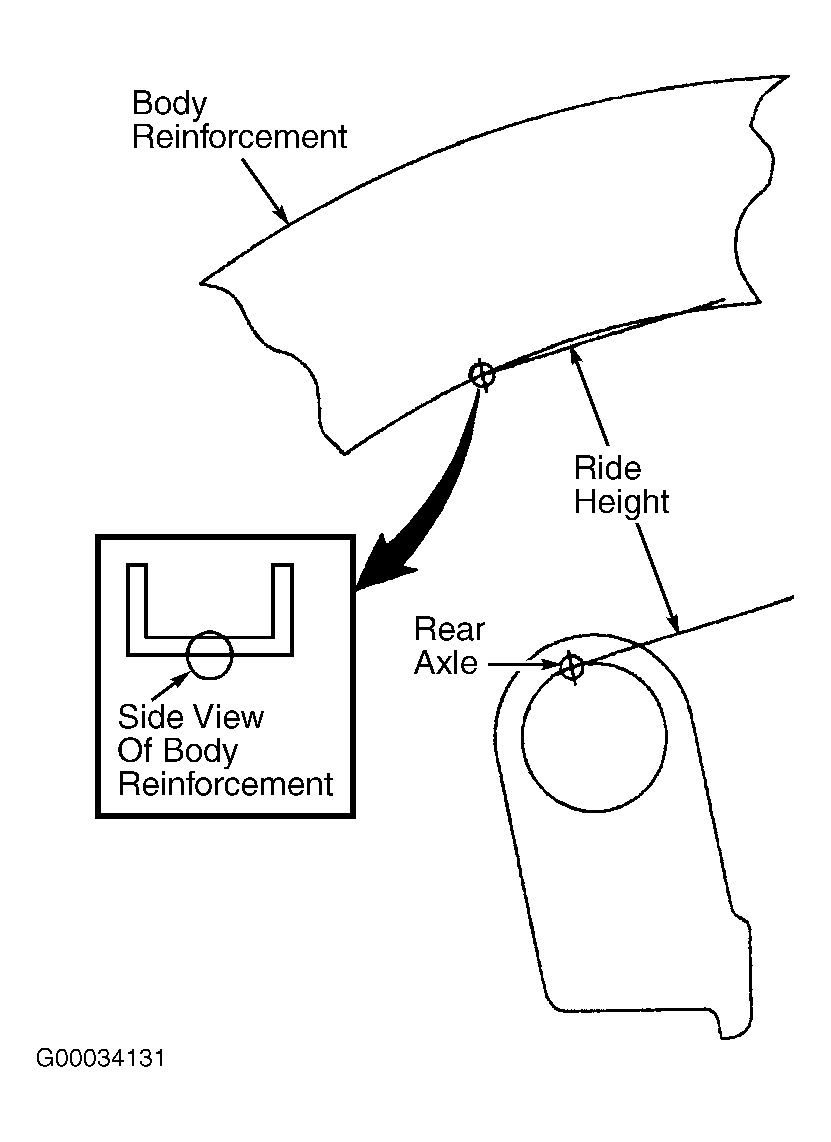

Fig 3: Rear Ride Height Measurement (LS)

Courtesy of FORD MOTOR CO.

Fig 4: Rear Ride Height Measurement (Mustang Cobra Shown; Continental Is Similar)

Courtesy of FORD MOTOR CO.

Fig 5: Rear Ride Height Measurement (Crown Victoria, Grand Marquis & Town Car)

Courtesy of FORD MOTOR CO.

Fig 6: Rear Ride Height Measurement (Mustang GT & Base)

Courtesy of FORD MOTOR CO.
