Shock Strut & Spring: Installation

Position the strut and spring assembly and install new nuts. Do not tighten the nuts at this time.

Fig 1: Identifying Strut & Spring Upper Mount-To-Body Nuts
Courtesy of FORD MOTOR CO.
Partially raise the vehicle.
Position the spindle on the strut and install a new pinch bolt.

NOTE: Make sure the cupped side of the washer is facing away from the bushing.

Position the tension strut in the spindle and install the bushing, the washer and a new nut.
Position the rear wheel brake hose and install the bolt.

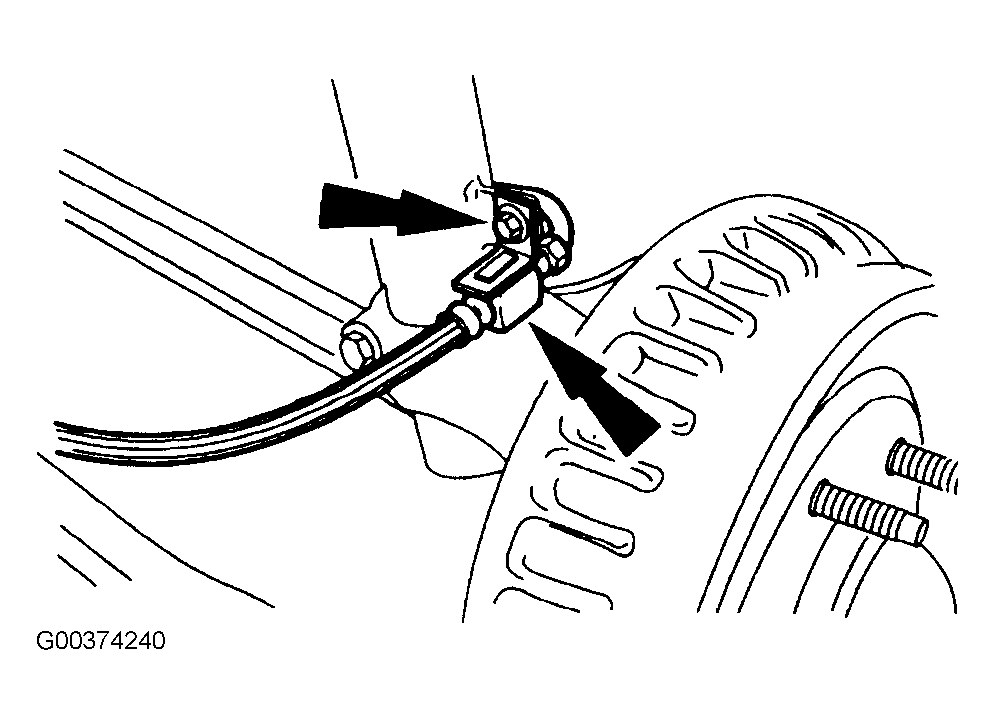

Fig 2: Identifying Brake Hose Retainer Bolt
Courtesy of FORD MOTOR CO.
Install the stabilizer bar, if so equipped. For additional information, refer to STABILIZER BAR .
Install the wheel and tire assembly.
Tighten the nuts.
Install the parcel tray.
