Removal & Installation (CII Pump)

Remove the drive belt. See DRIVE BELT .
Disconnect coolant reservoir bottle coolant return hose. Block hose to prevent coolant loss. See Fig 1.

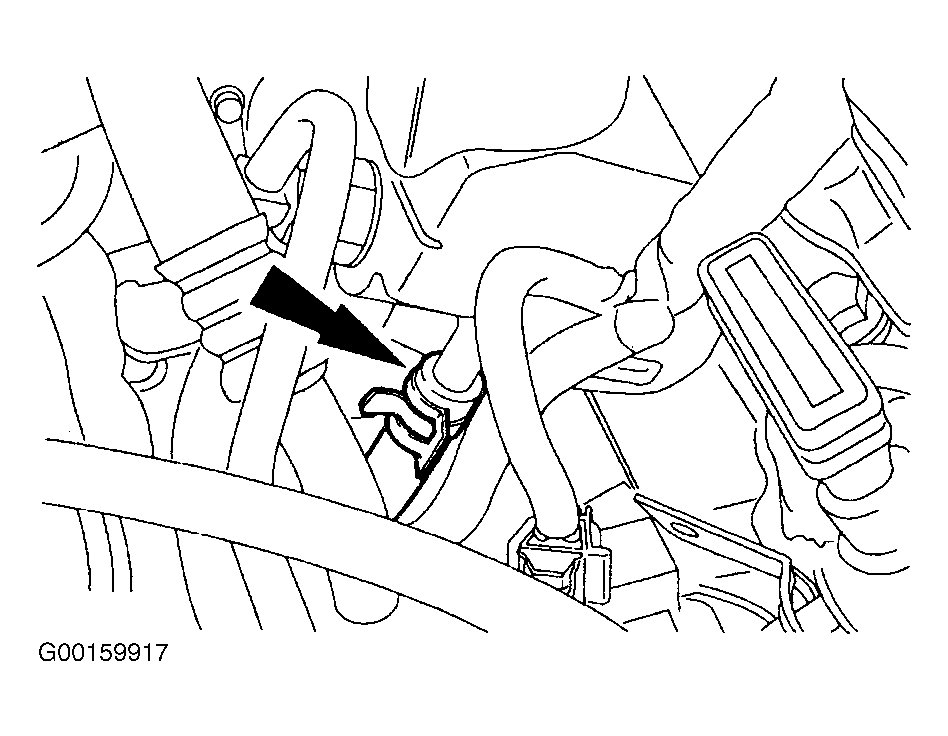

Fig 1: Disconnecting Coolant Reservoir Bottle
Courtesy of FORD MOTOR CO.
Loosen the fitting and disconnect the power steering pressure hose. See Fig 2.
Disconnect the electrical connector. See Fig 3.

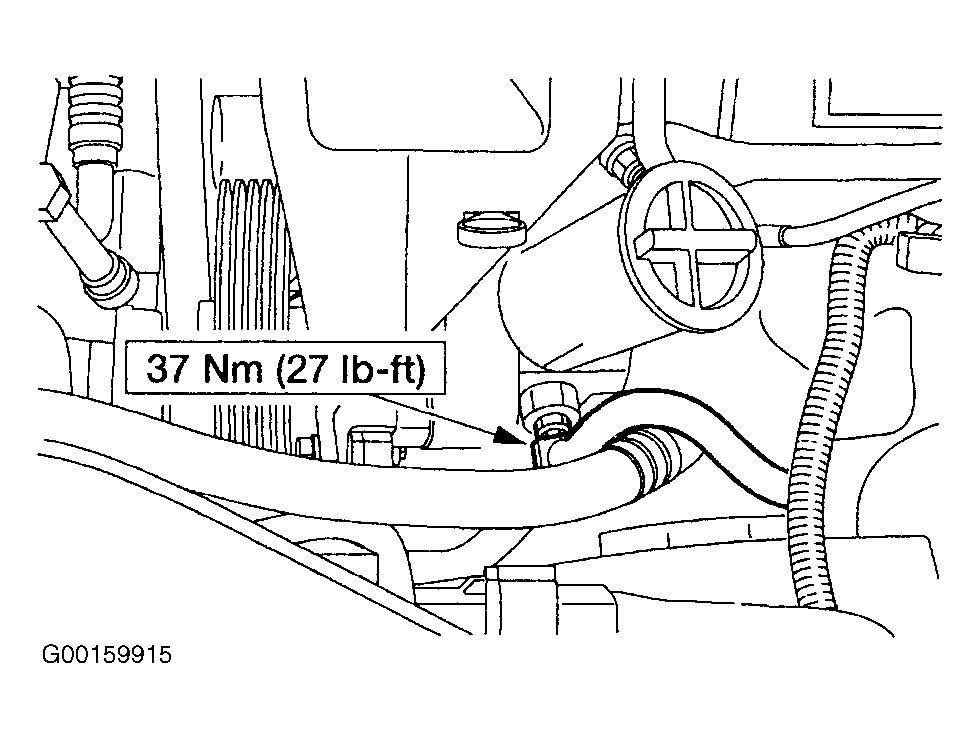

Fig 2: Locating Pressure Hose Connections (CII Pump)
Courtesy of FORD MOTOR CO.

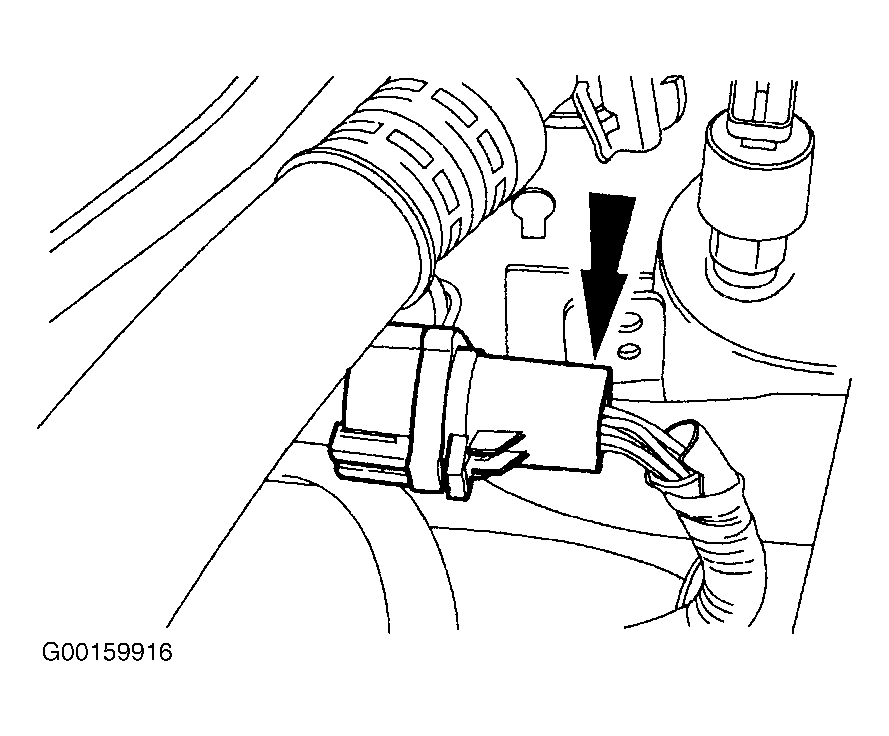

Fig 3: Locating Power Steering Pump Electrical Connector (CII Pump)
Courtesy of FORD MOTOR CO.
Disconnect the power steering return line. See Fig 4.

Fig 4: Locating Power Steering Pump Return Line (CII Pump)
Courtesy of FORD MOTOR CO.
Using the Power Steering Pump Pulley Remover (211-016), see Fig 5, remove the power steering pump pulley. See Fig 6.

Fig 5: Identifying Power Steering Pump Pulley Remover & Replacer Tools
Courtesy of FORD MOTOR CO.

Fig 6: Removing Power Steering Pump Pulley (CII Pump)
Courtesy of FORD MOTOR CO.
Remove the power steering pump mounting bolts and the pump. See Fig 7.

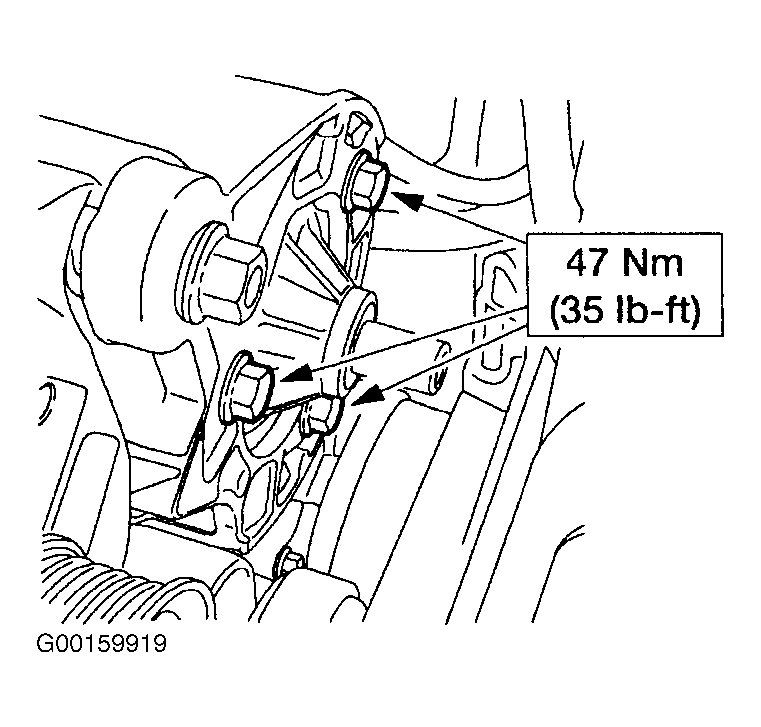

Fig 7: Locating Power Steering Pump Mounting Bolts (CII Pump)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure. Using the Power Steering Pump Pulley Installer (211-009), see Fig 5, install the power steering pump pulley. See Fig 8. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .
Install a new seal on the power steering pressure hose fitting. See HOSES .
Fill and leak check the system. See SYSTEM FILL under LUBRICATION.

Fig 8: Installing Power Steering Pump Pulley)

Courtesy of FORD MOTOR CO.
