Removal & Installation: Hoses: Notes
NOTE:

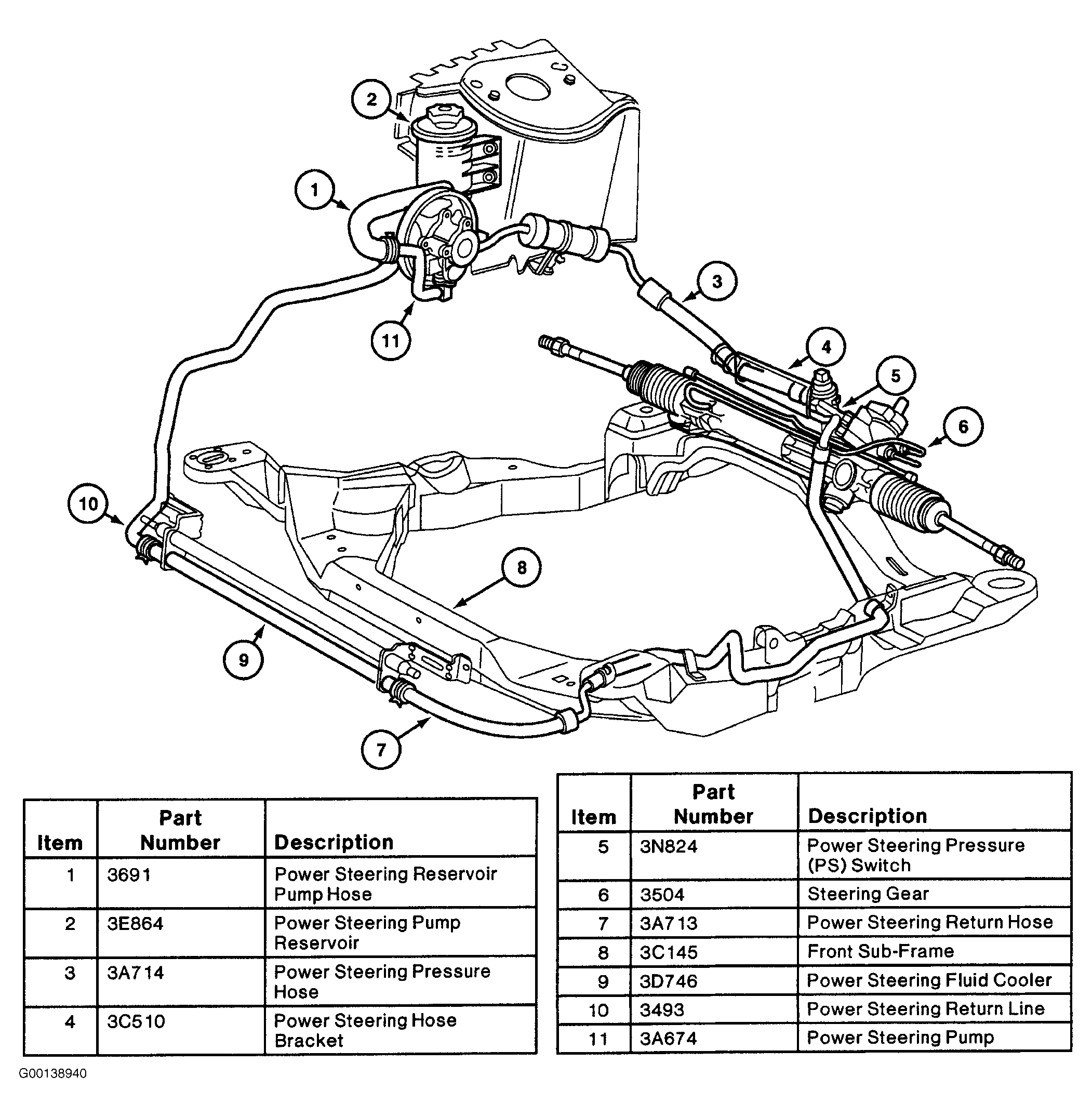

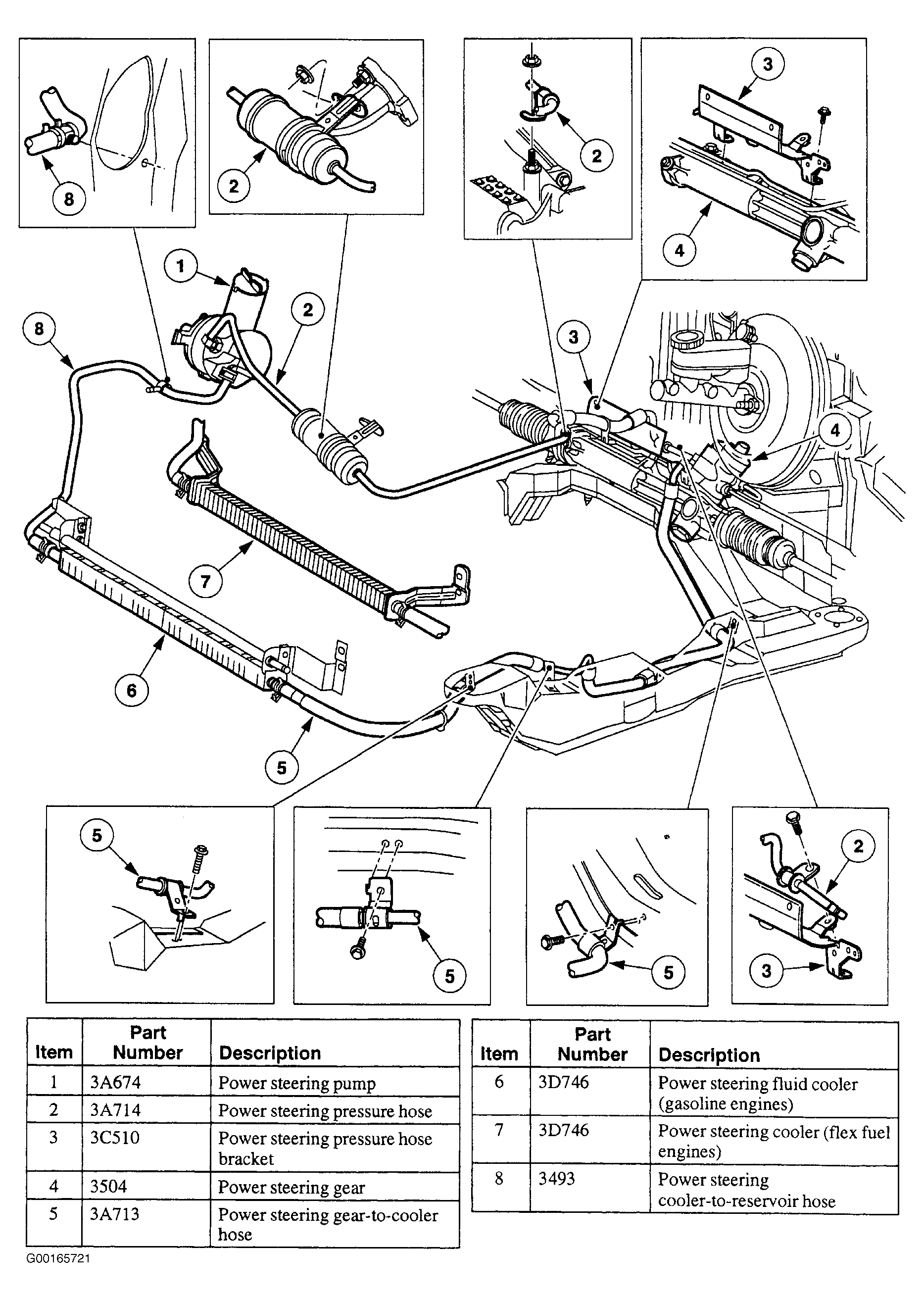

Removal information for pressure and return hoses not available from manufacturer. Refer to appropriate system illustration for routing information. See Figure or Figure
. Whenever a hose fitting with a seal is disconnected, a new seal must be installed.
