Steering Gear: Disassembly

Remove the bolts using a plastic or rubber mallet. See Fig 1.
Mount the steering gear on the Holding Fixture (307-003). See Fig 2.

Fig 1: Removing & Installing Steering Gear Mounting Bolts
Courtesy of FORD MOTOR CO.

Fig 2: Securing Steering Gear
Courtesy of FORD MOTOR CO.
Clean the exterior of the steering gear with solvent. If necessary, drain any excess power steering fluid.
Inspect the steering gear housing for cracks and other damage. If necessary, install a new steering gear.
Verify the power steering gear input shaft bearing rotates freely. If necessary, install a new steering gear.
If necessary, remove the bolts and the power steering hose bracket. See Fig 3.

Fig 3: Removing & Installing Hose Bracket
Courtesy of FORD MOTOR CO.

CAUTION: Use care not to damage the tie-rod bellows. Damaged tie-rod bellows will allow contamination into the steering gear and can cause leaks.

Remove the nuts and the tie-rod bellows outer clamps. Discard any clamps that are damaged or excessively corroded. See Fig 4.
Remove and discard the bellows inner clamps. See Fig 5.

Fig 4: Removing & Installing Bellows Clamp & Tie-Rod End Jam Nuts
Courtesy of FORD MOTOR CO.

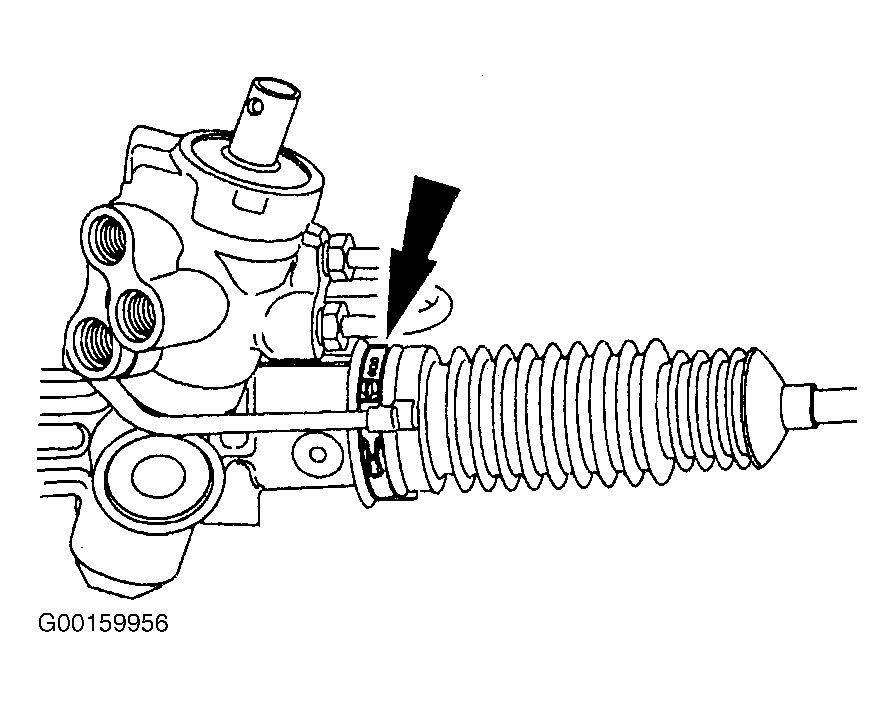

Fig 5: Removing Bellows Inner Clamps
Courtesy of FORD MOTOR CO.
Remove both tie rod bellows and the air tube. See Fig 6.

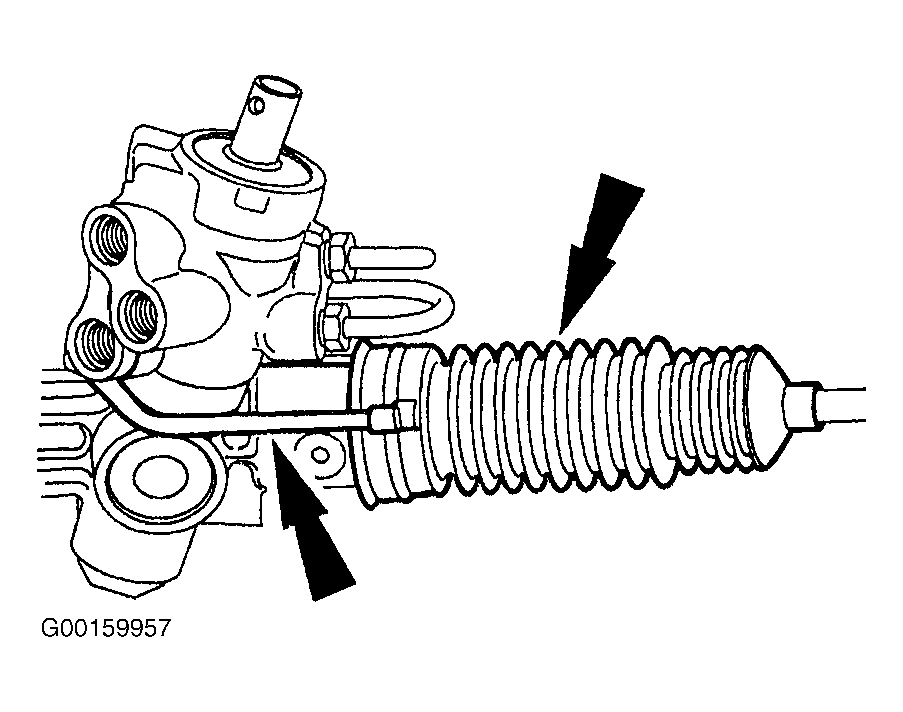

Fig 6: Removing & Installing Bellows & Air Tube
Courtesy of FORD MOTOR CO.

CAUTION: Hold the steering gear rack with an adjustable wrench when removing the tie-rod to absorb the rotational force. Damage to the steering gear can result.

Remove the inner tie-rods. See Fig 7.
If a new steering gear is being installed, remove the gear from the holding fixture.

Fig 7: Removing & Installing Inner Tie-Rod Ends

Courtesy of FORD MOTOR CO.
