Steering Gear

The power rack and pinion steering gear is serviced as an assembly. If any service is required, the entire power rack and pinion steering gear must be replaced.

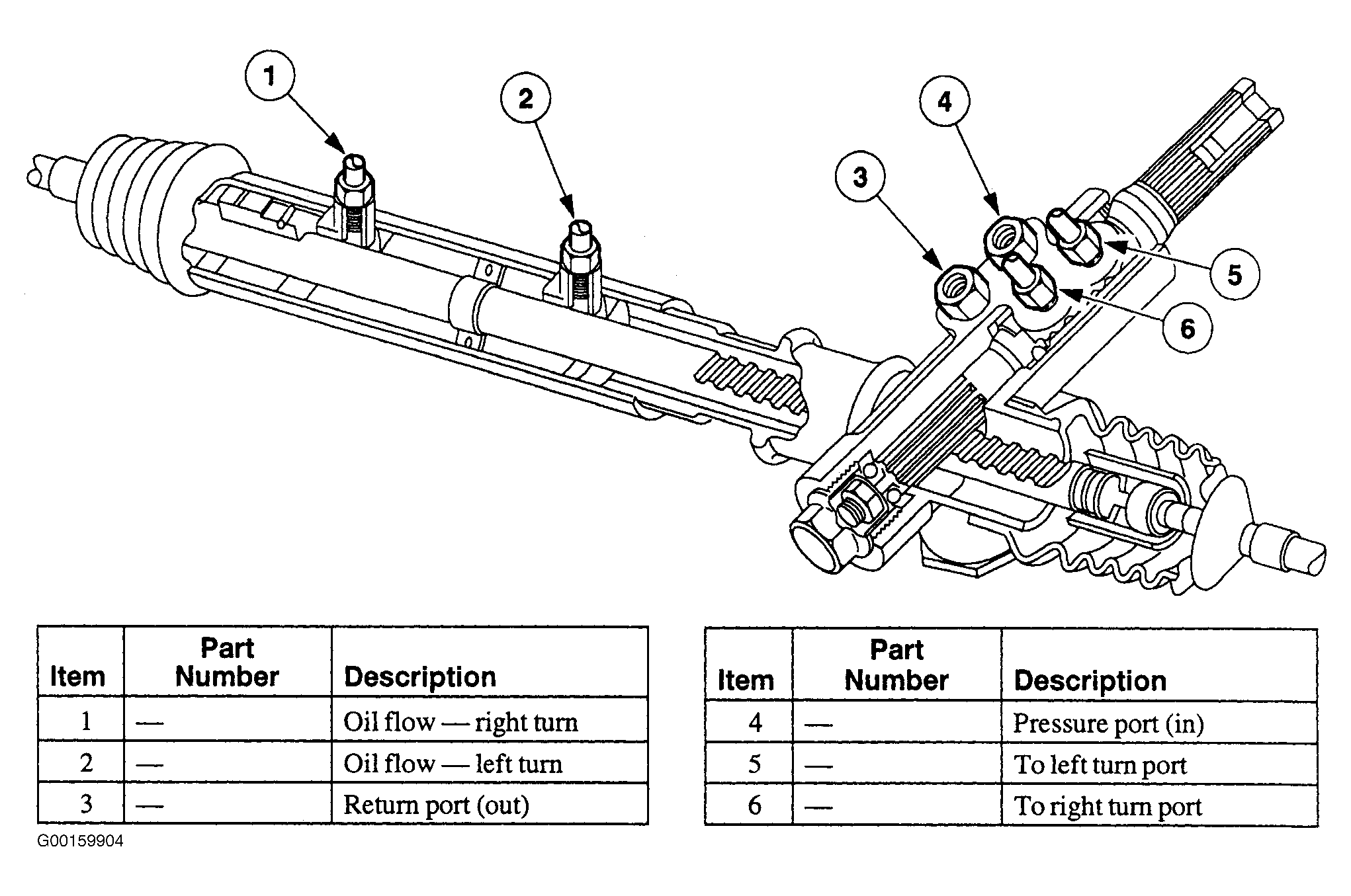

Fig 1: Identifying Steering Gear Components

Courtesy of FORD MOTOR CO.

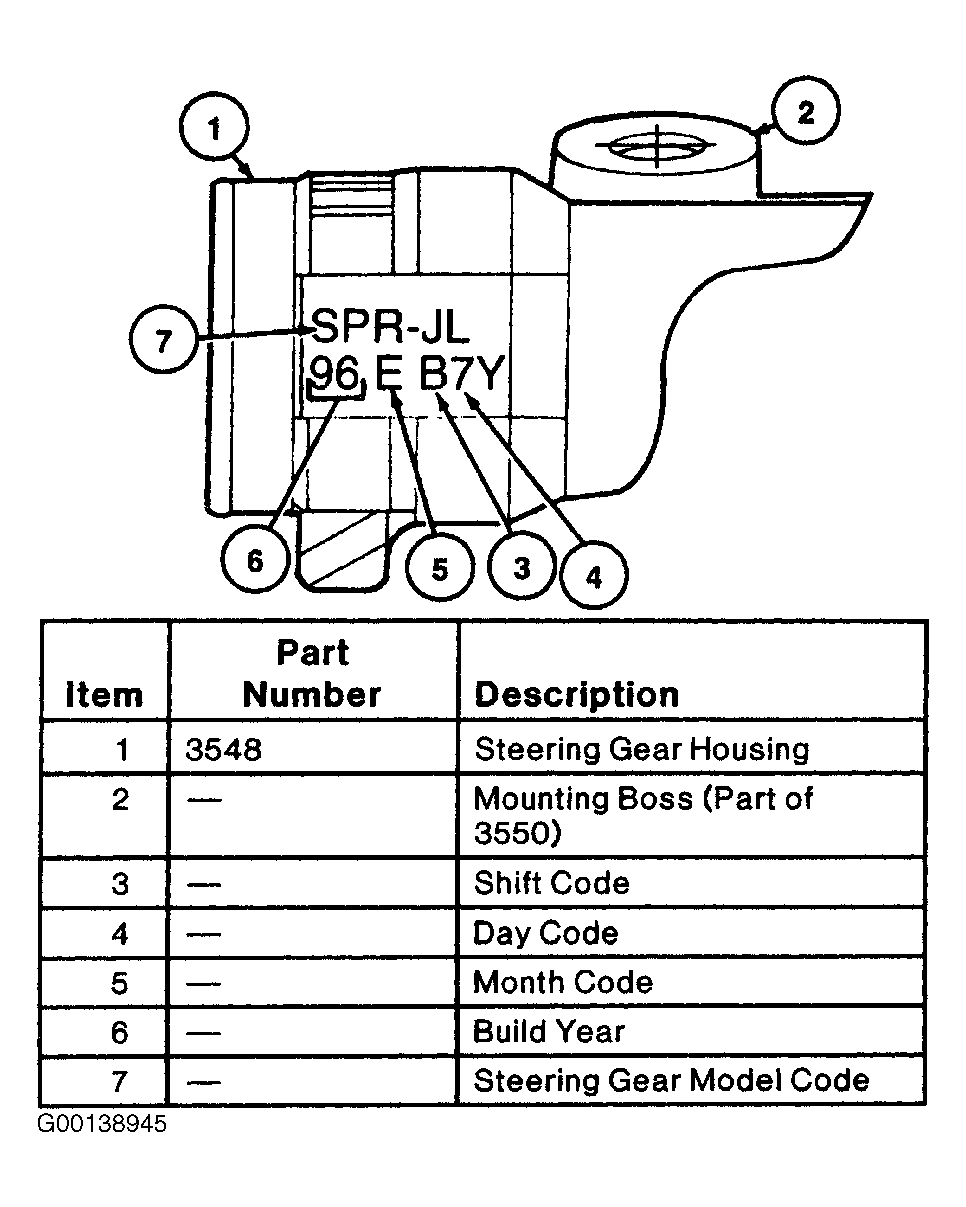

Fig 2: Identifying Power Steering Gear ID Tag

Courtesy of FORD MOTOR CO.
