Component Locations

Refer to illustration for component locations. See Fig 1 .

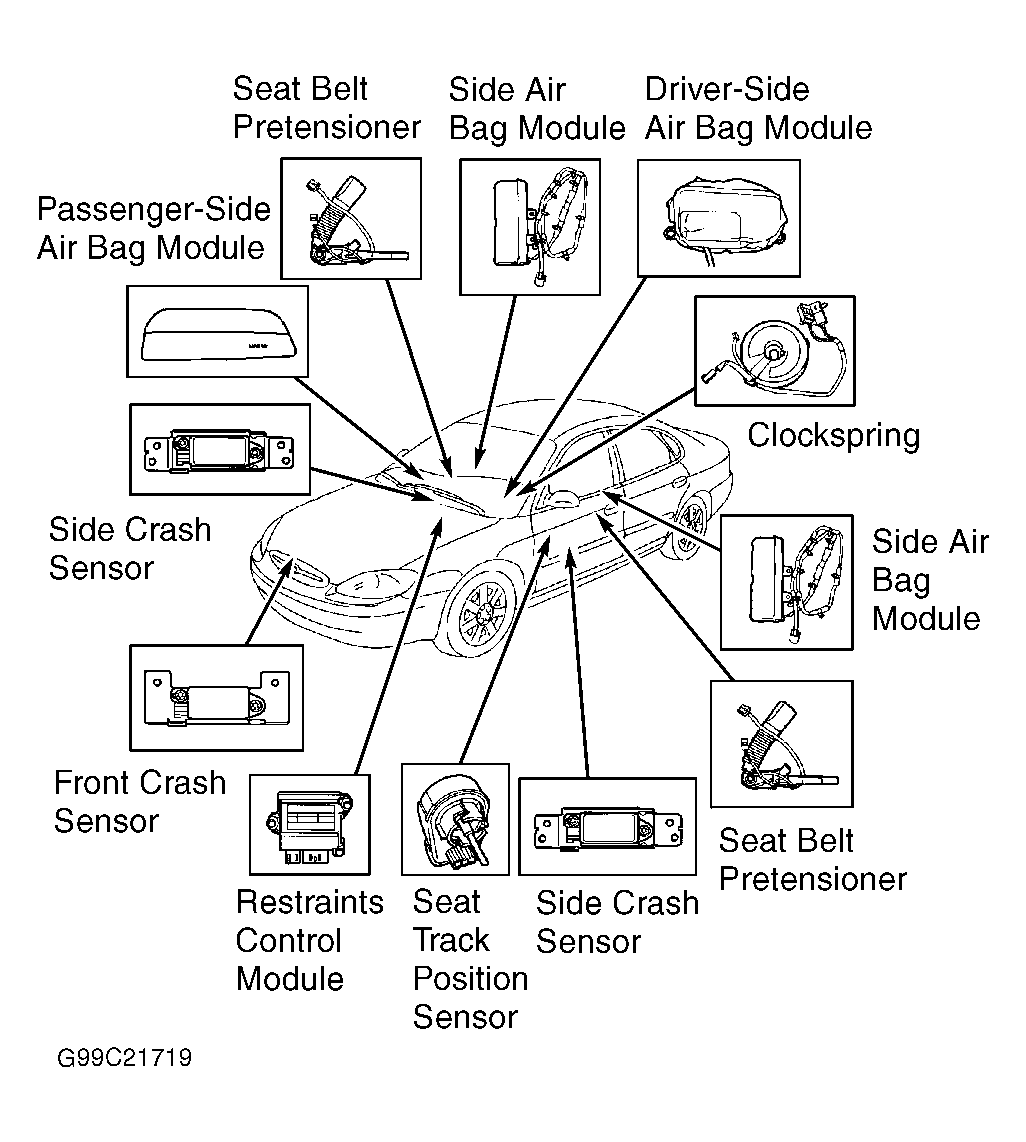

Fig 1: Locating Restraint System Components

G99C21719

Courtesy of FORD MOTOR CO.
