Taurus & Sable: Removal

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle.
Remove the front RH wheel.
Remove the RH front inner wheel splash shield.
- Remove the screws and the pin-type retainer.

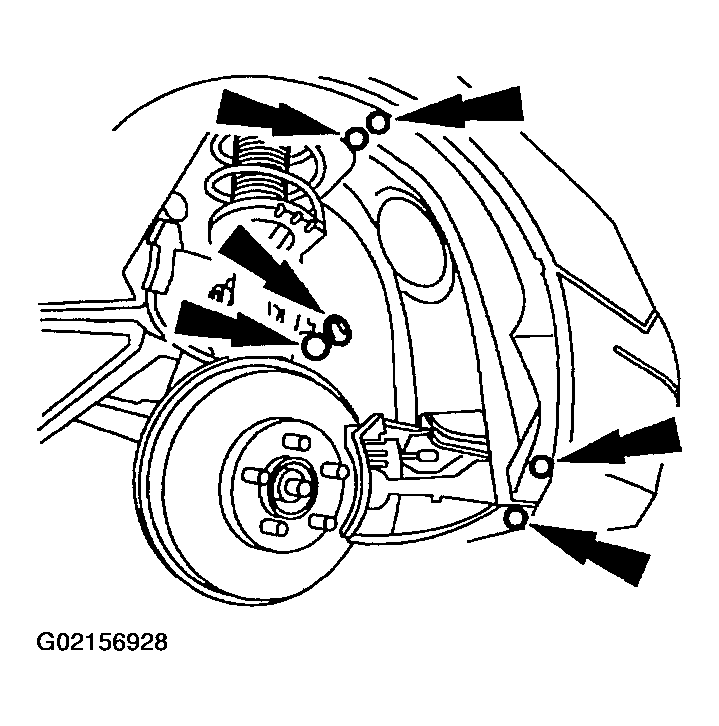

Fig 1: Removing Right Side Splash Shield
Courtesy of FORD MOTOR CO.
Remove the dual converter Y-pipe.
Secure the exhaust system and remove the jackstand.
Drain the engine oil.
- Install a new drain plug gasket and tighten the drain plug to 27 Nm (20 lb-ft).
Remove the bolts, nuts and the engine-to-transaxle bracket.

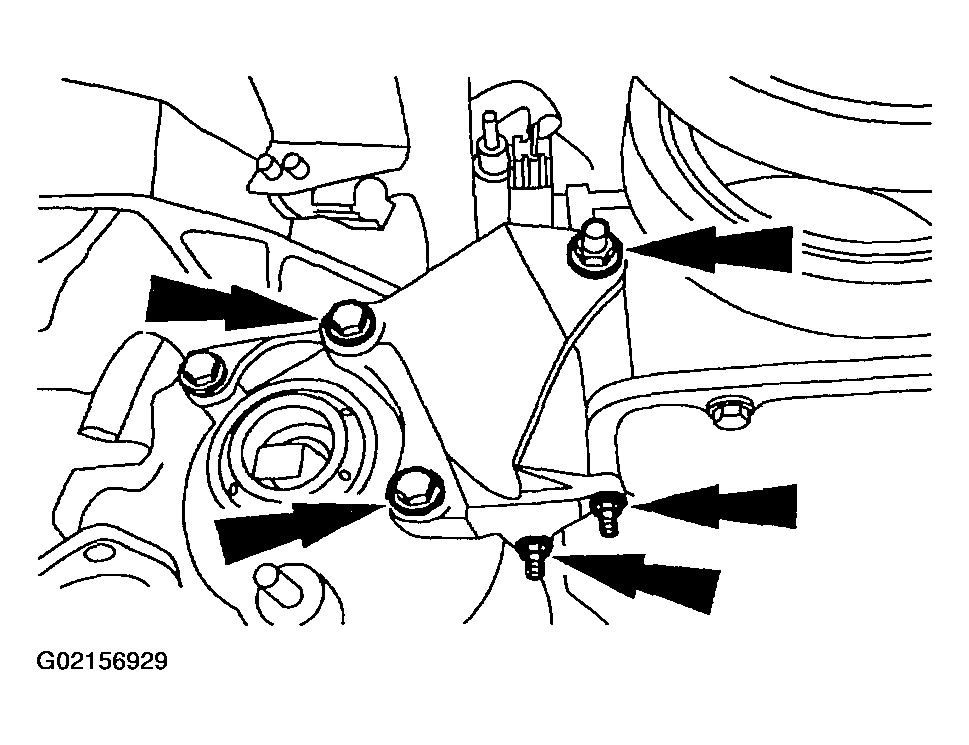

Fig 2: Removing Engine-To-Transaxle Bracket
Courtesy of FORD MOTOR CO.
Remove the torque converter inspection cover.

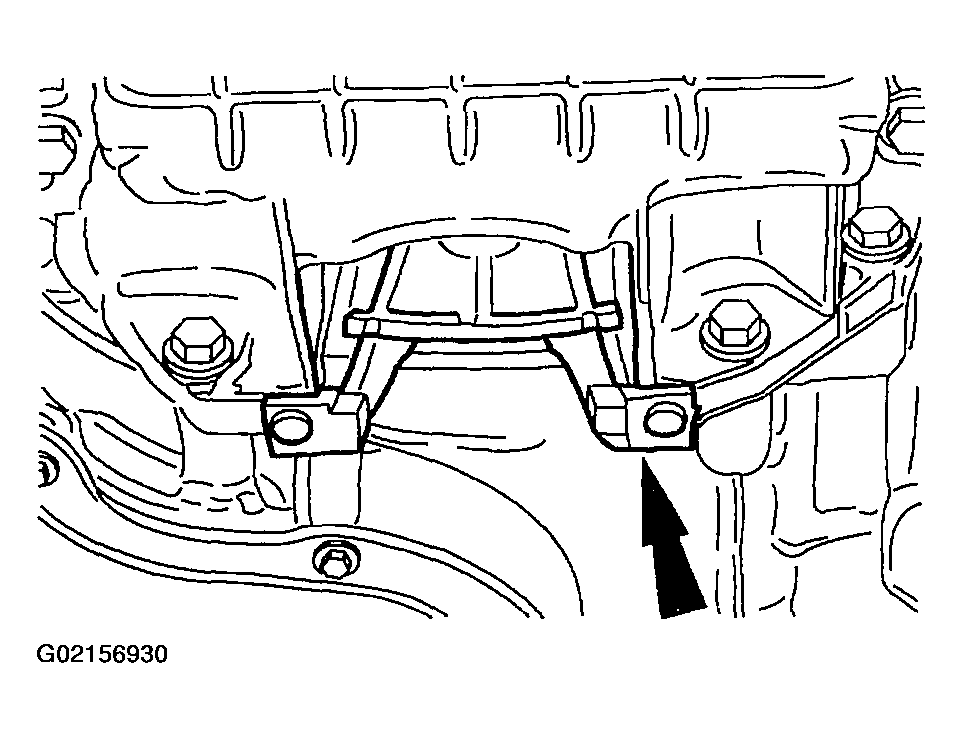

Fig 3: Removing Torque Converter Inspection Cover
Courtesy of FORD MOTOR CO.
Remove the 18 bolts and the oil pan.

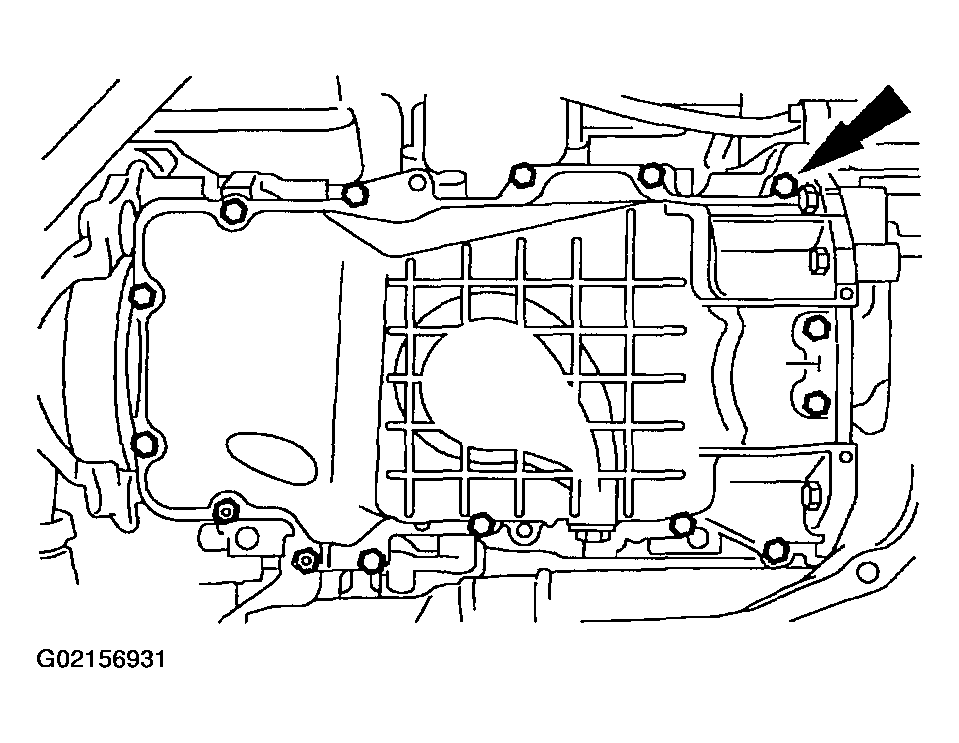

Fig 4: Removing Oil Pan
Courtesy of FORD MOTOR CO.
