Installation

WARNING: This page is about a different variant/trim than selected.
  1. Before installing front cover and NEW gasket, apply sealant at specified areas on cylinder block. See Fig 1. Install front cover bolts/studs in locations shown, and tighten 1/4 turn after front cover contacts cylinder block. Complete front cover bolt tightening procedure in sequence. See Fig 2. Tighten to specification. See TORQUE SPECIFICATIONS .
  2. To complete installation, reverse removal procedure. Use NEW A/C compressor mounting bracket bolts, (if equipped). Tighten remaining bolts/nuts to specification. See TORQUE SPECIFICATIONS . Fill crankcase with oil. Check all fluid levels. Start engine, and check for leaks.

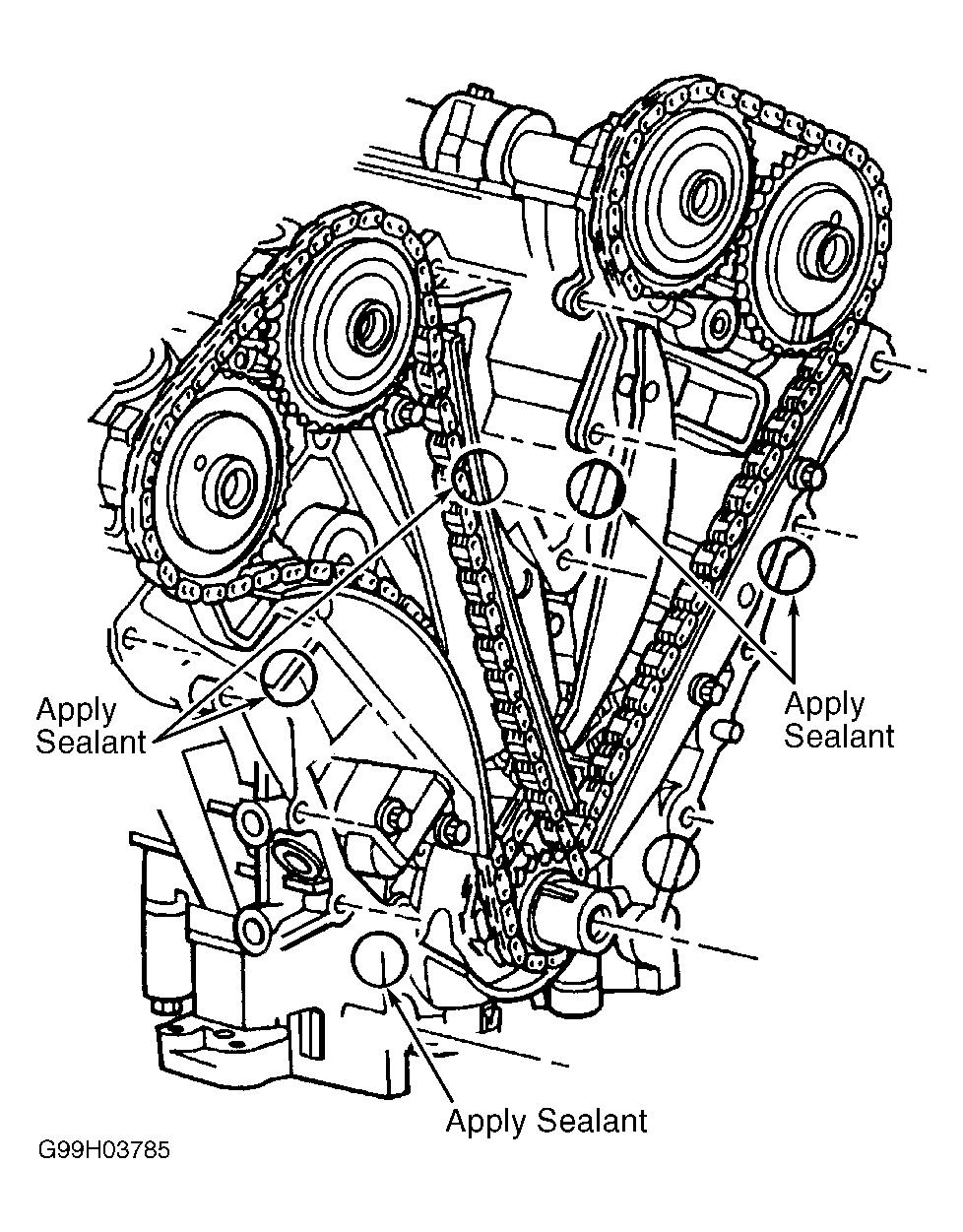

Fig 1: Applying Sealant To Cylinder Block
G99H03785Courtesy of FORD MOTOR CO.

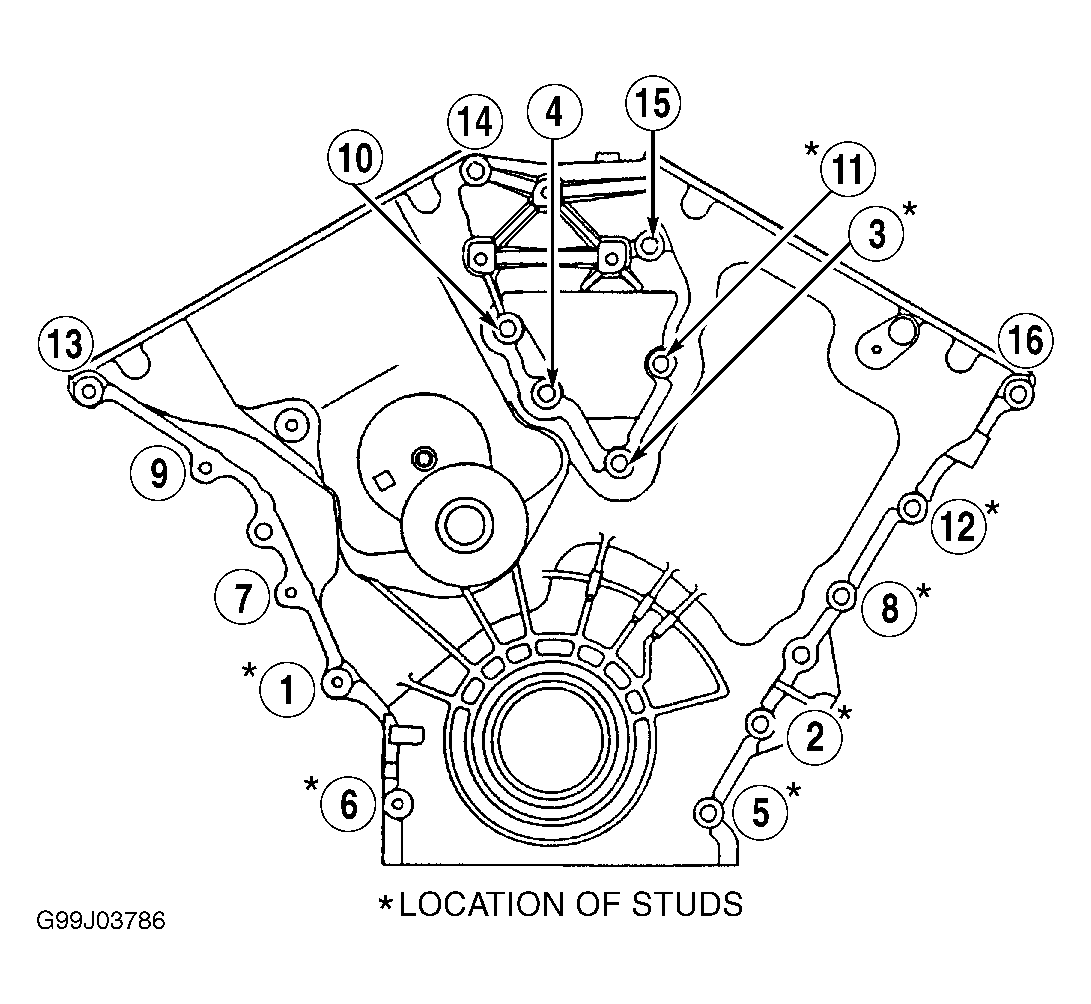

Fig 2: Front Cover Bolt/Stud Tightening Sequence
G99J03786Courtesy of FORD MOTOR CO.
