Mass Air Flow (MAF) Sensor - 6.8L: Notes

WARNING: This page is about a different car, the 2007 Ford Pickup, 2007 Ford F550 Super Duty, 2007 Ford F450 Super Duty, and 2007 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

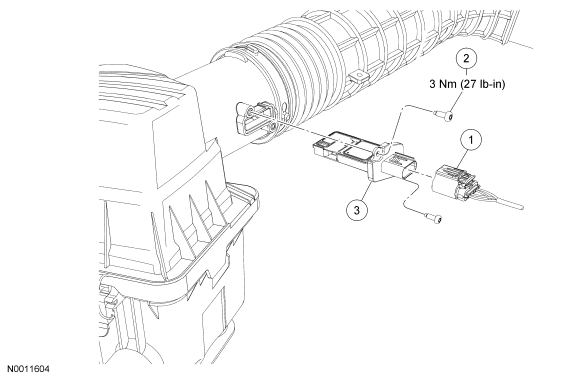

Fig 1: Identifying Mass Air Flow (MAF) Sensor Components - 6.8L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Mass air flow (MAF) sensor electrical connector (part of 12B637)
2	W505562	MAF sensor bolt (2 required)
3	12B579	MAF sensor
