Transmission Fluid Cooler Tubes: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Disconnect Tool, Transmission Cooler Line | 307-441 |
Material
| Item | Specification |
|---|---|
| MERCON® V Automatic Transmission Fluid XT-5-QM (or XT-5-QMC) (US); CXT-5-LM12 (Canada) |
MERCON® V |

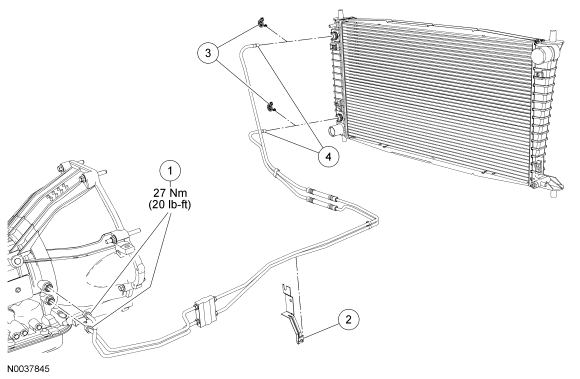

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H420 | Transmission fluid cooler tube nut fittings |
| 2 | 7N291 | Transmission fluid cooler tube bracket |
| 3 | 7J081 | Transmission fluid cooler tube secondary latches |
| 4 | 7H420 | Transmission fluid cooler tubes |

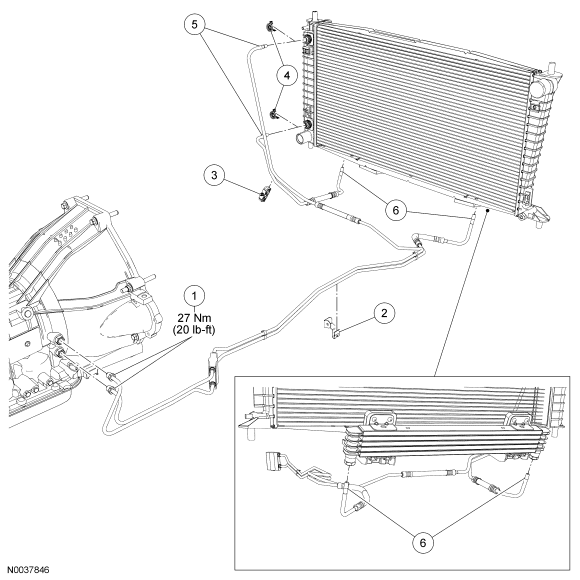

| Item | Part Number | Description |
|---|---|---|
| 1 | 7H420 | Transmission fluid cooler tube nut fittings |
| 2 | 7N291 | Transmission fluid cooler tube bracket |
| 3 | 7N291 | Transmission fluid cooler tube retainer |
| 4 | 7J081 | Transmission fluid cooler tube secondary latches |
| 5 | 7H420 | Transmission fluid cooler tubes |
| 6 | 7F113 | Transmission fluid cooler tubes |
