Removal & Installation - Rear Cable

WARNING: This page is about a different car, the 2002 Lincoln LS and 2002 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove console. Perform steps  1- 3 under REMOVAL & INSTALLATION - FRONT CABLE.

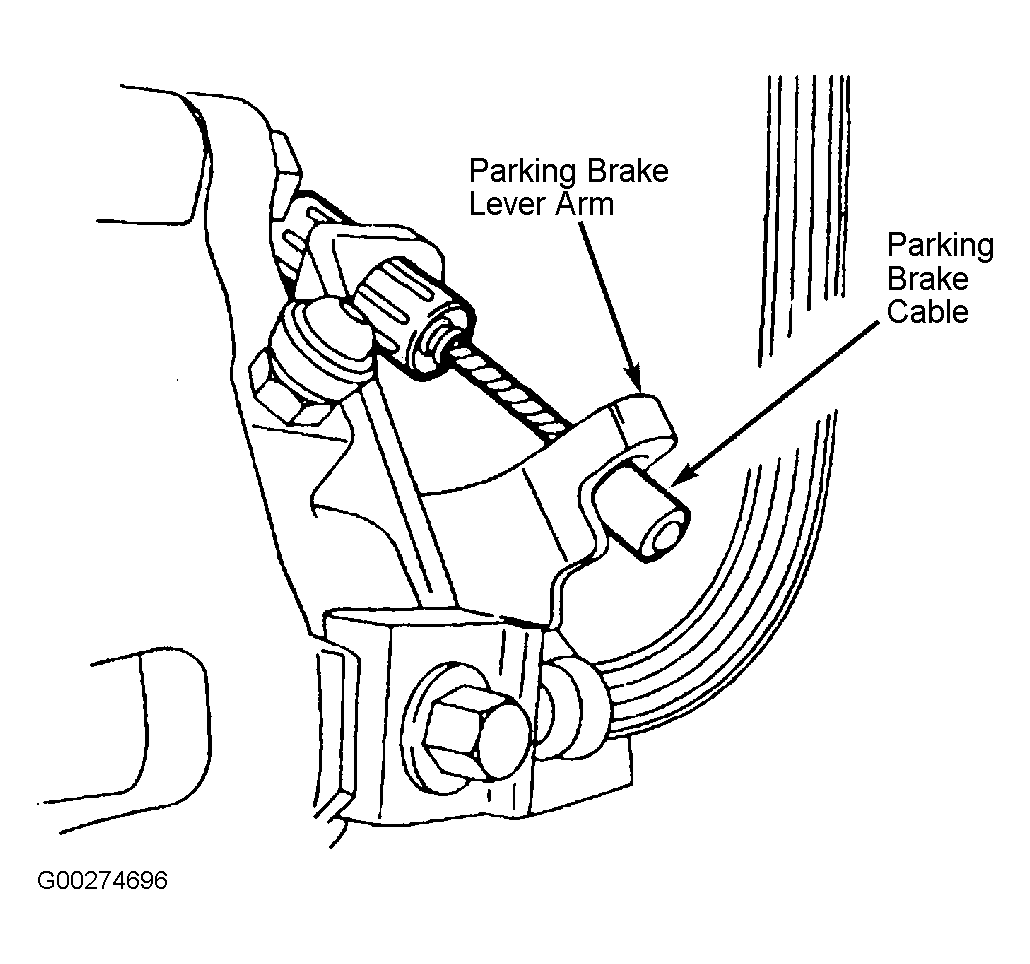

  2. Disconnect parking brake rear cable and conduit from the parking brake lever on rear caliper. See Figure.
  3. Using a 13 mm box-end wrench, depress the conduit retaining prongs and remove the parking brake rear cable and conduit.
  4. To install, reverse removal procedure.
