Removal And Installation: Bushing-Tube: Installation

WARNING: This page is about a different car, the 2002 Ford Pickup, 2001 Ford Pickup, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

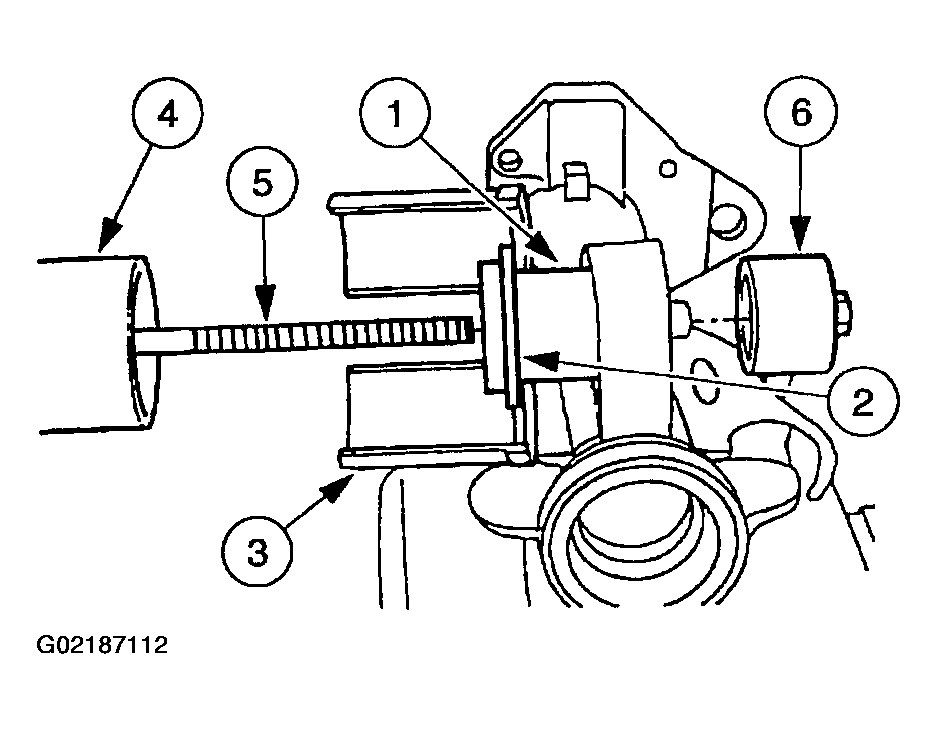

Position the tube bushing and the tube bushing installation tools.
1. Position the tube bushing.
2. Position the Gauge Ring.
3. Position the Bushing Collet Replacer.
4. Position the Bushing Cup Remover/Replacer.
5. Position the Drawbolt.
6. Thread the Bushing Replacer on the Drawbolt.

  Fig 1: Positioning Tube Bushing & Installation Tools
  Courtesy of FORD MOTOR CO.

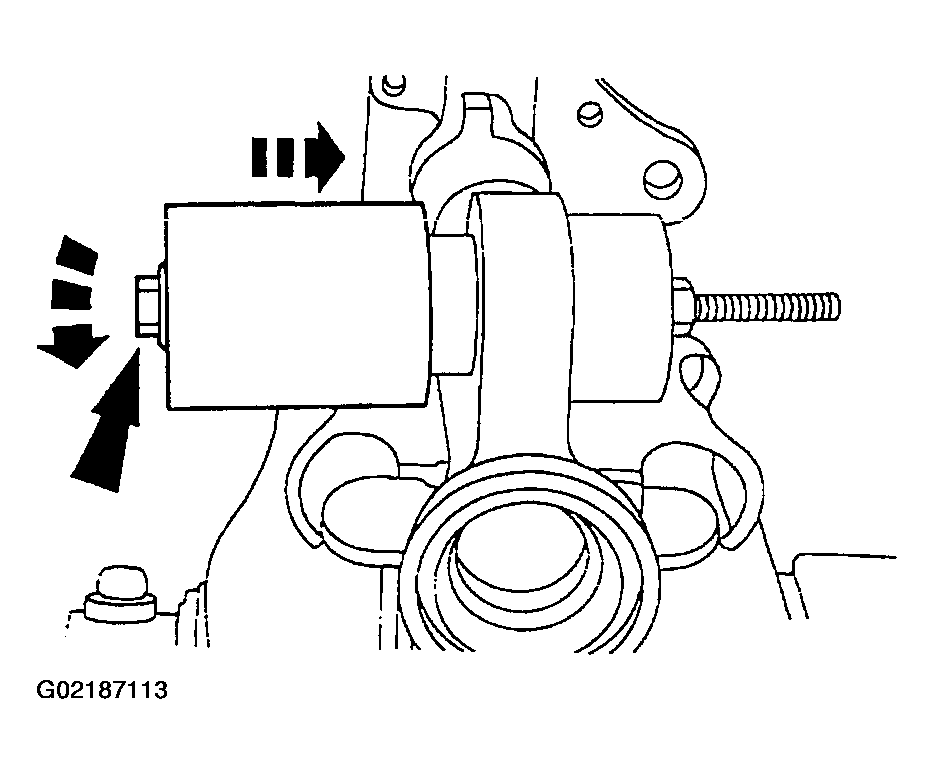

Tighten the Drawbolt until the Bushing Collet Replacer contacts the axle tube.
- Remove the tools.
Fig 2: Tightening Drawbolt Until Bushing Collet Replacer Contacts Axle Tube
Courtesy of FORD MOTOR CO.
Install the front drive axle assembly. Refer to the AXLE ASSEMBLY-Front Drive .
