Front Drive Axle, Vacuum Components

WARNING: This page is about a different car, the 2002 Ford Pickup, 2001 Ford Pickup, and 2000 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

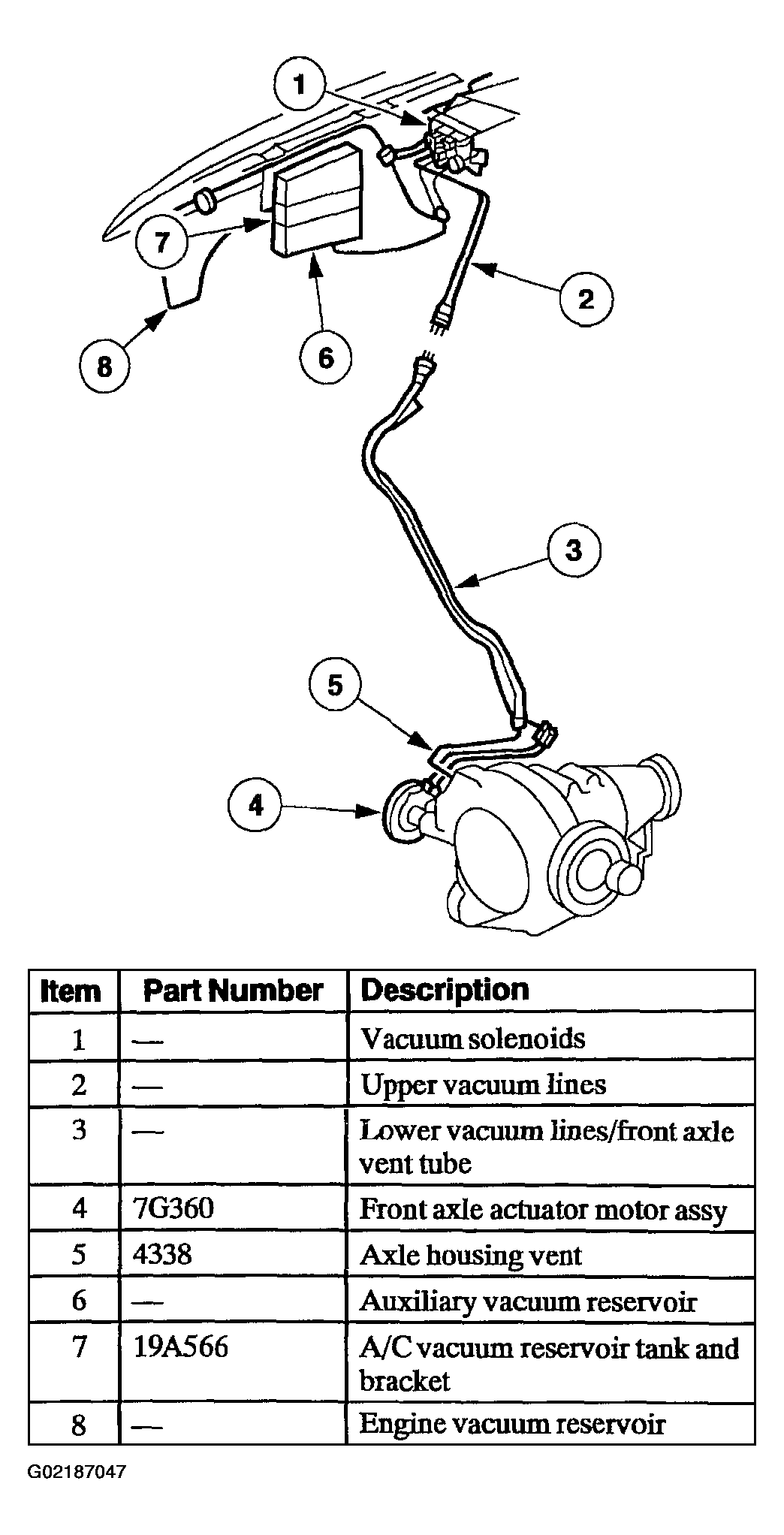

Fig 1: Identifying Front Drive Axle Vacuum Components
G02187047Courtesy of FORD MOTOR CO.
