Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Motorcraft Metal Surface Prep ZC-31 |
- |

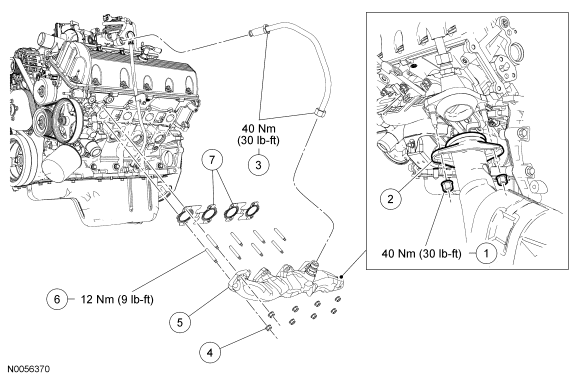

| Item | Part Number | Description |
|---|---|---|
| 1 | W705443 | Exhaust Y-pipe flange nut (2 required) |
| 2 | 5F250 | Exhaust Y-pipe flange |
| 3 | 9D477 | Exhaust gas recirculation (EGR) system module-to-exhaust manifold tube fittings |
| 4 | W701706 | Exhaust manifold nut (8 required) |
| 5 | 9431 | Exhaust manifold |
| 6 | W707747 | Exhaust manifold-to-cylinder head stud (8 required) |
| 7 | 9Y431 | Exhaust manifold gaskets |
