Driveshaft - Rear, Two-Piece: Notes
WARNING: This page is about a different car, the 2007 Lincoln Mark LT and 2007 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Material
| Item | Specification |
|---|---|
| Threadlock and Sealer TA-25 |
WSK-M2G351-A5 |

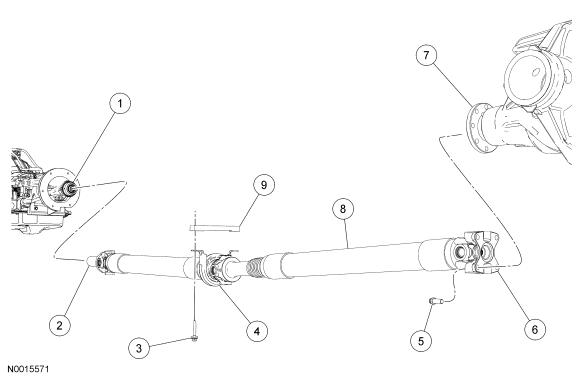

| Item | Part Number | Description |
|---|---|---|
| 1 | 7A309 | Transmission extension housing |
| 2 | 4841 | Driveshaft slip yoke |
| 3 | W11116-S439 | Driveshaft center bearing bolt |
| 4 | 4K145 | Driveshaft center bearing |
| 5 | N800594-S100 | Driveshaft flange-to-pinion flange bolt |
| 6 | 4866 | Driveshaft flange |
| 7 | 4858 | Pinion flange |
| 8 | 4K145 | Driveshaft |
| 9 | 4230 | Center bearing shim (if equipped) |
