Pinpoint Test J: The Courtesy Lamp Stays On Continuously - Luggage Compartment Lamp Only

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

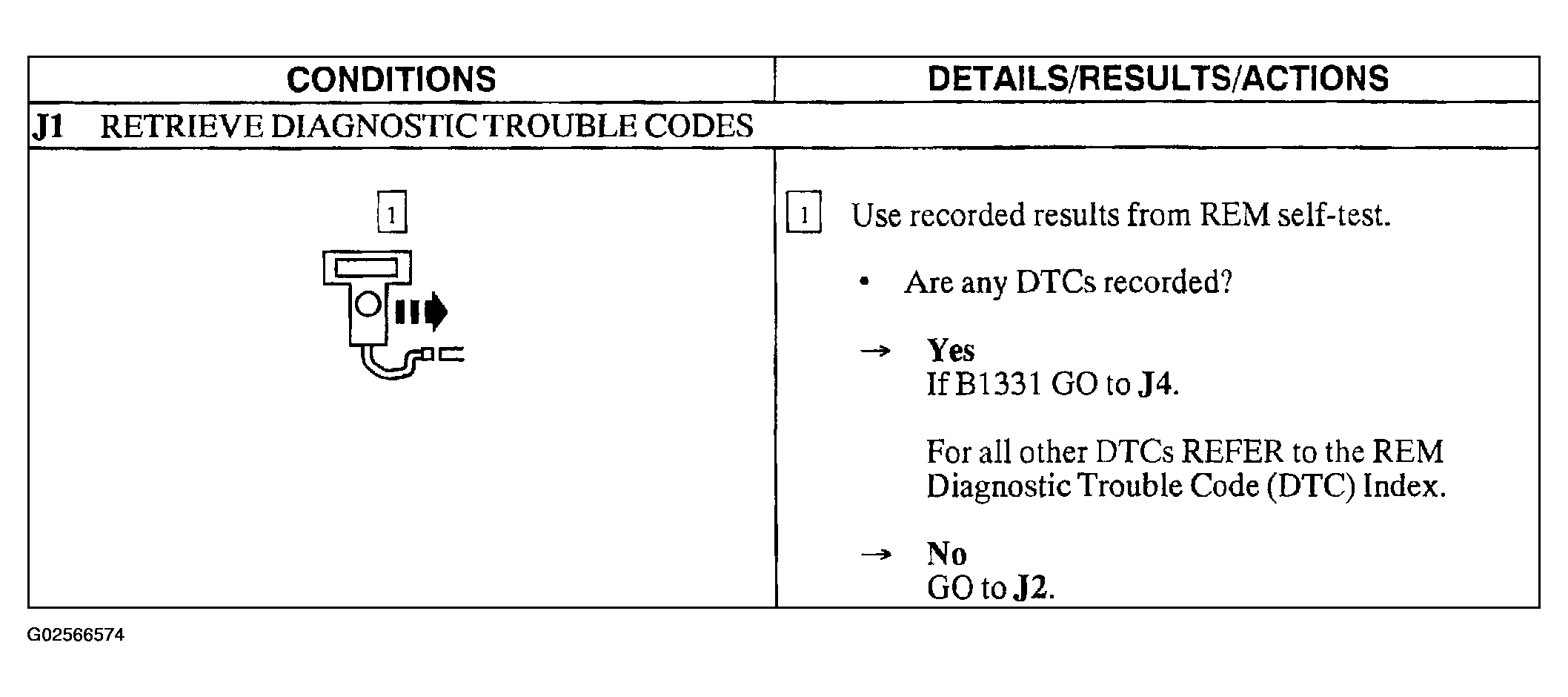

Fig 1: Pinpoint Test J: The Courtesy Lamp Stays On Continuously - Luggage Compartment Lamp Only (Step J1)
G02566574Courtesy of FORD MOTOR CO.

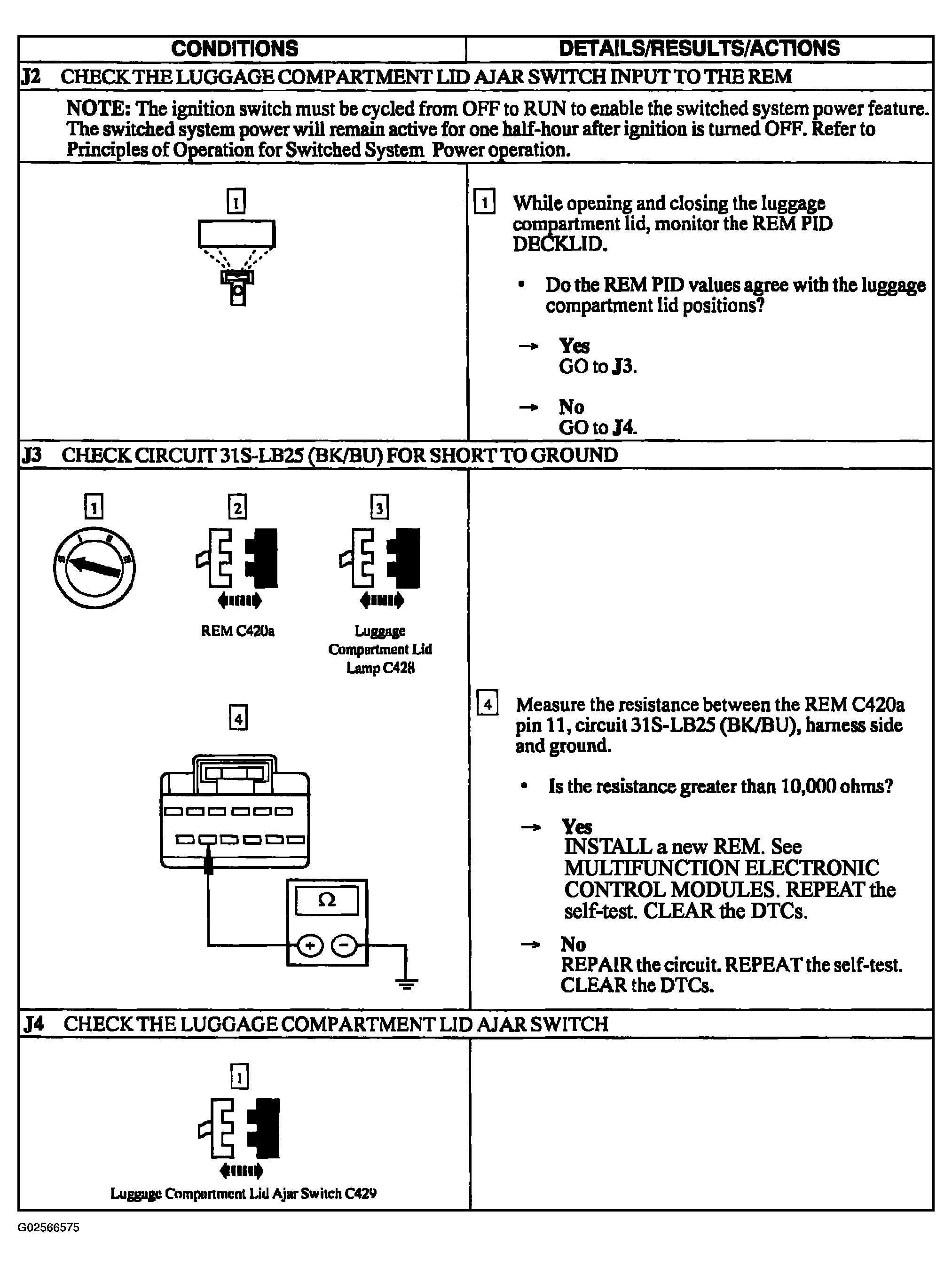

Fig 2: Pinpoint Test J: The Courtesy Lamp Stays On Continuously - Luggage Compartment Lamp Only (Steps J2-J4)
G02566575Courtesy of FORD MOTOR CO.

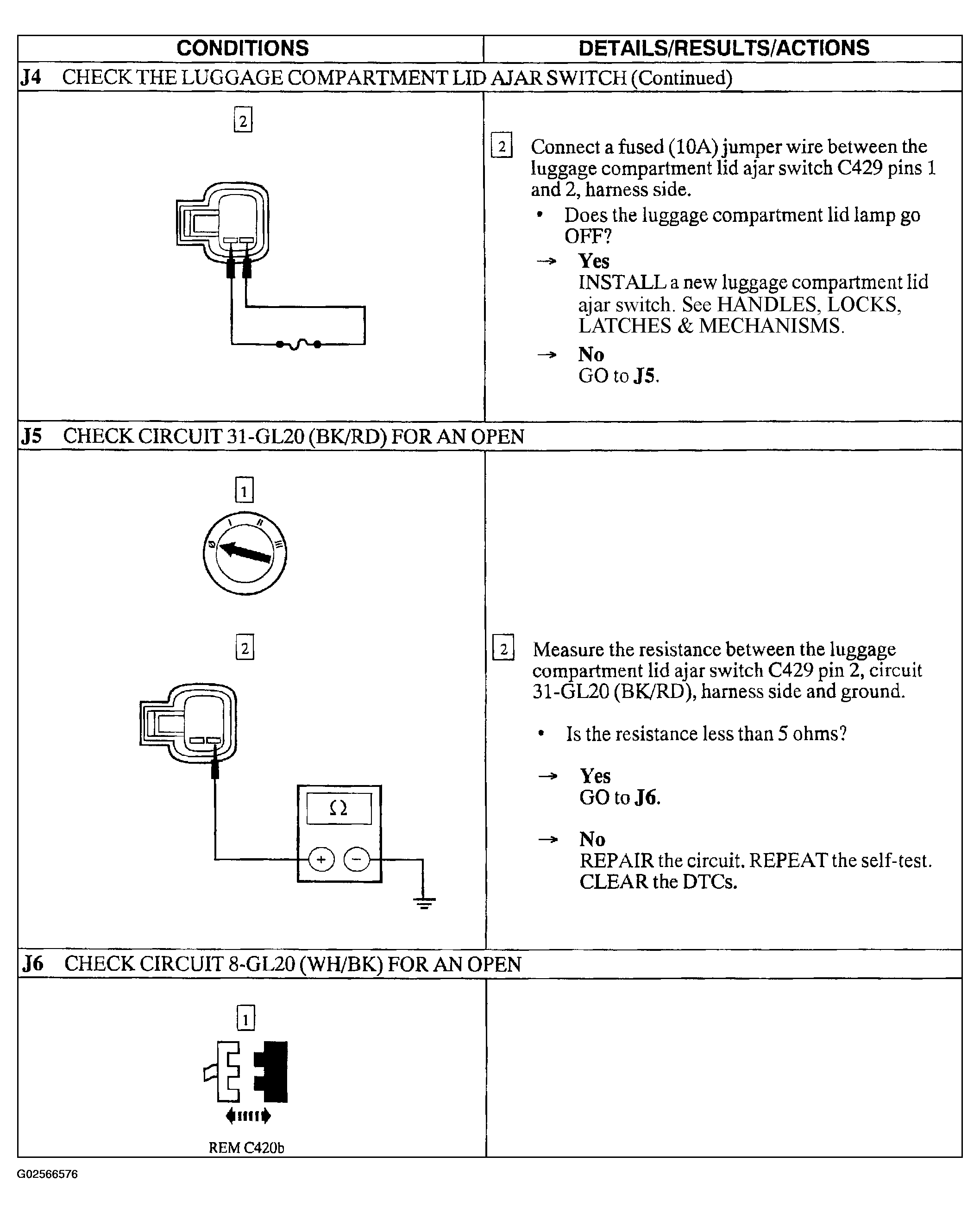

Fig 3: Pinpoint Test J: The Courtesy Lamp Stays On Continuously - Luggage Compartment Lamp Only (Steps J4 Cont. -J6)
G02566576Courtesy of FORD MOTOR CO.

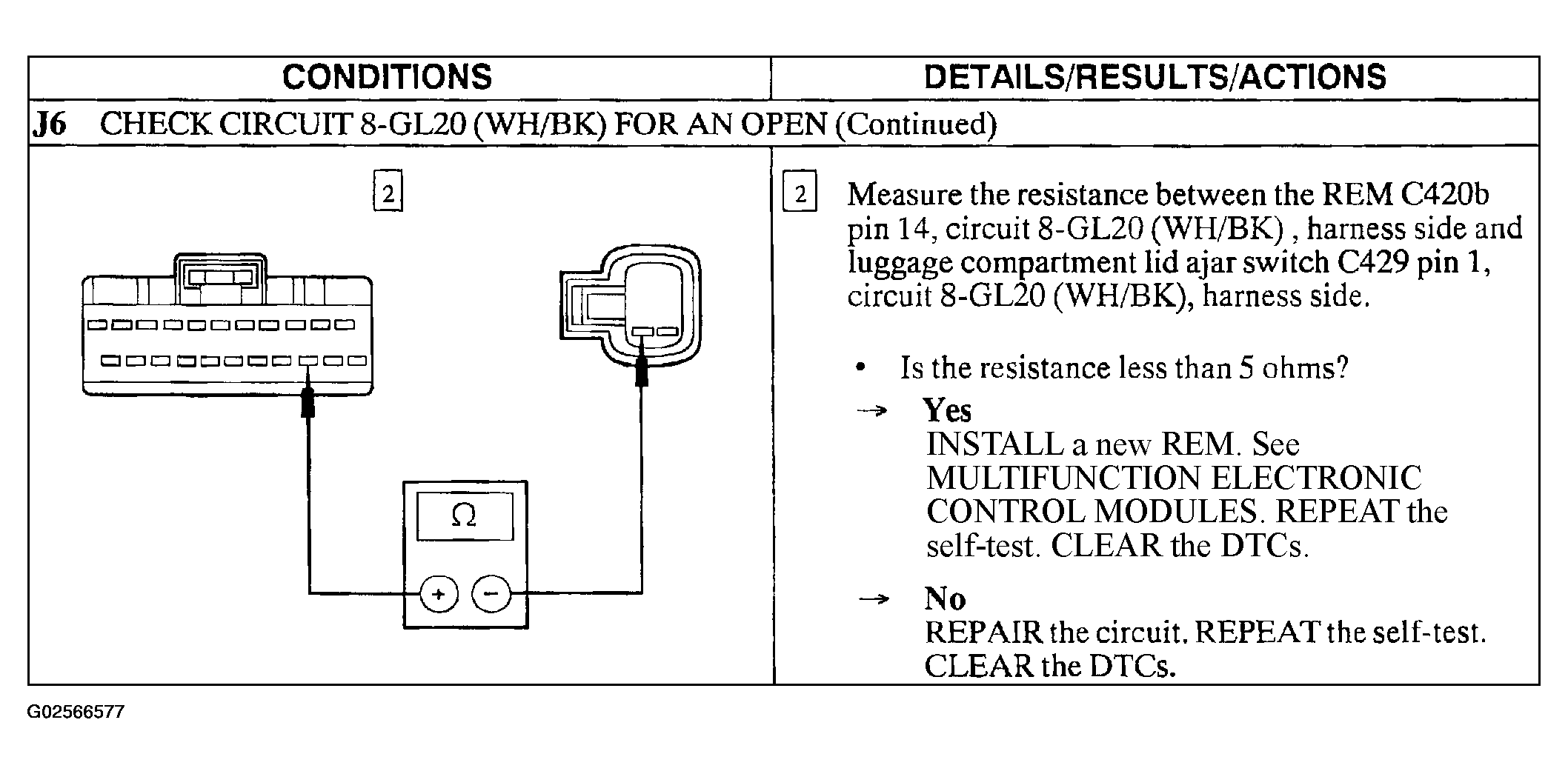

Fig 4: Pinpoint Test J: The Courtesy Lamp Stays On Continuously - Luggage Compartment Lamp Only (Step J6 Cont.)
G02566577Courtesy of FORD MOTOR CO.
