Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

If necessary, remove the license plate.
Remove the pin-type retainers and the luggage compartment lid trim panel.

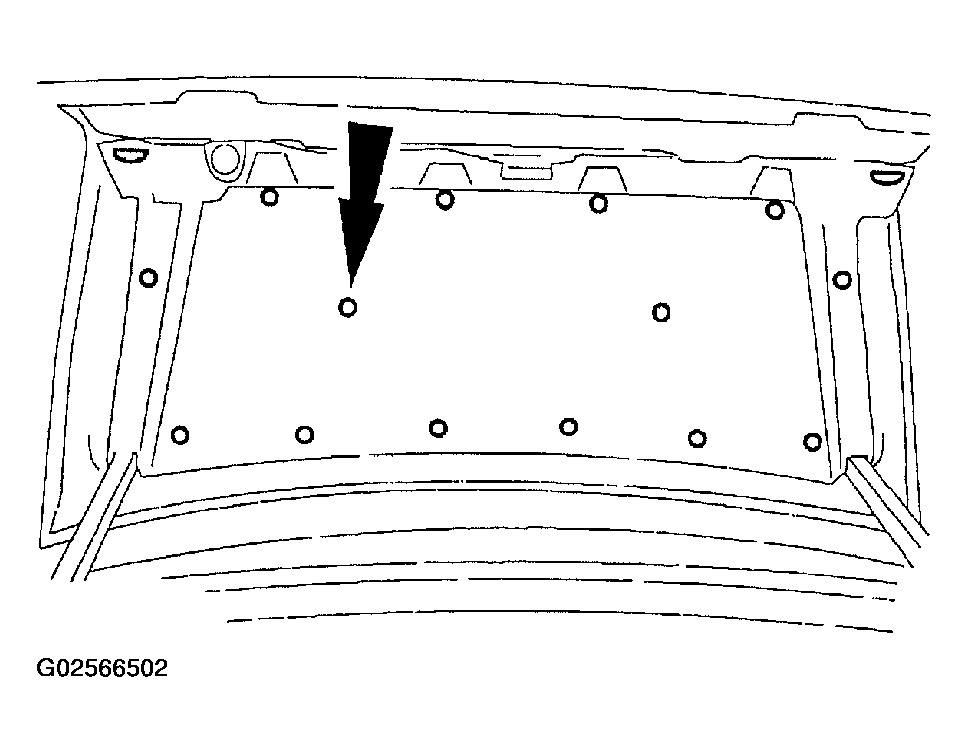

Fig 1: Removing Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the license plate lamp electrical connector.

Fig 2: Disconnecting License Plate Lamp Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the lamp socket from the license plate lamp.
Using a suitable tool, through the access hole, release the clips and remove the license plate lamp.

Fig 3: Releasing Clips
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
