Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the instrument panel steering column cover.
1. Remove the screws.
2. Remove the instrument panel steering column cover.
  - Disconnect the electrical connectors.
Fig 1: Removing Instrument Panel Steering Column Cover
Courtesy of FORD MOTOR CO.
Remove the outer instrument panel finish panel.
- Disconnect the electrical connector.
Fig 2: Removing Outer Instrument Panel Finish Panel
Courtesy of FORD MOTOR CO.
Remove the headlamp switch.
1. Release the four retaining clips.
2. Remove the headlamp switch.

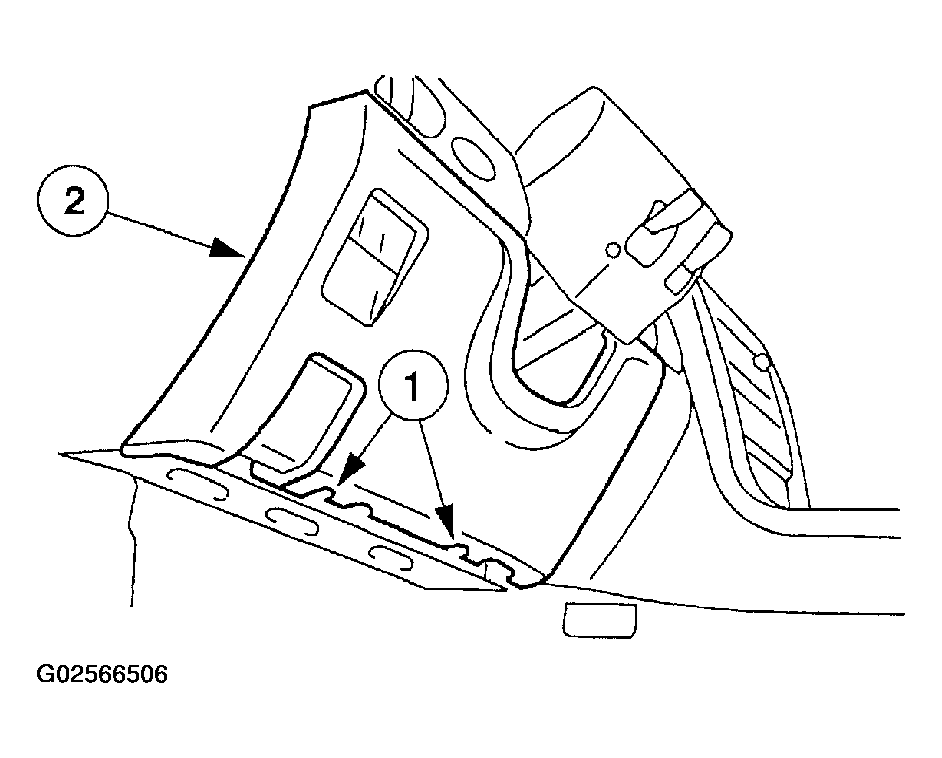

  Fig 3: Removing Headlight Switch
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
