Lamp Switch - Brake Pedal Position (BPP): Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel insulator.
    • Disconnect electrical connector.
  2. Remove the brake pedal position (BPP) switch.
    1. Disconnect the electrical connector.
    2. Remove the BPP switch.

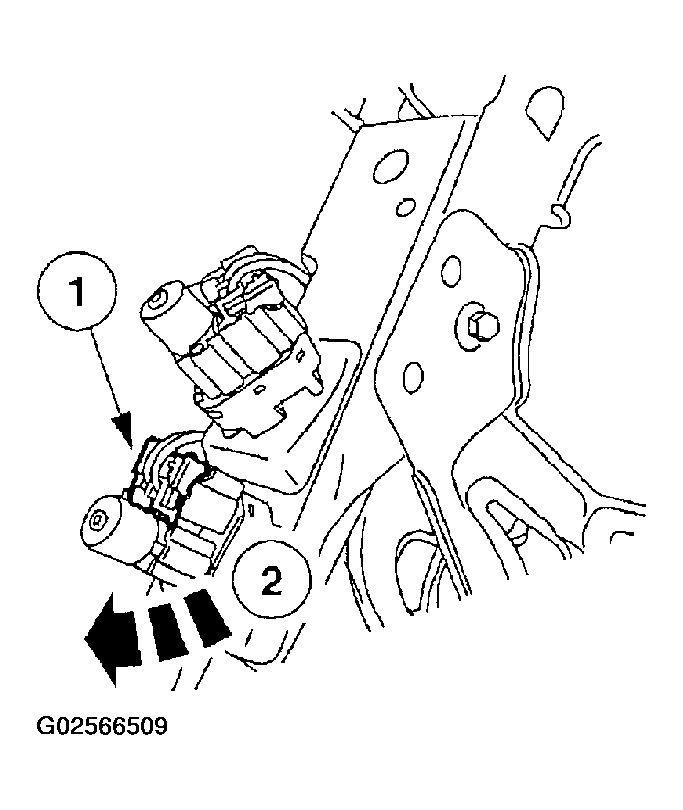

    Fig 1: Removing BPP Switch
    G02566509Courtesy of FORD MOTOR CO.
