Lamp Switch - Brake Pedal Position (BPP): Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Initial installation of a brake pedal position (BPP) switch allows for one adjustment. If additional adjustments are required, install a new switch.

Rotate the lock knob counterclockwise to the stop to unlock.

Fig 1: Rotating Lock Knob Counterclockwise
Courtesy of FORD MOTOR CO.
With the engine running, fully depress and hold the brake pedal.
Install the BPP switch.
1. Position the BPP switch in the bracket and rotate counterclockwise.
2. Connect the electrical connector.

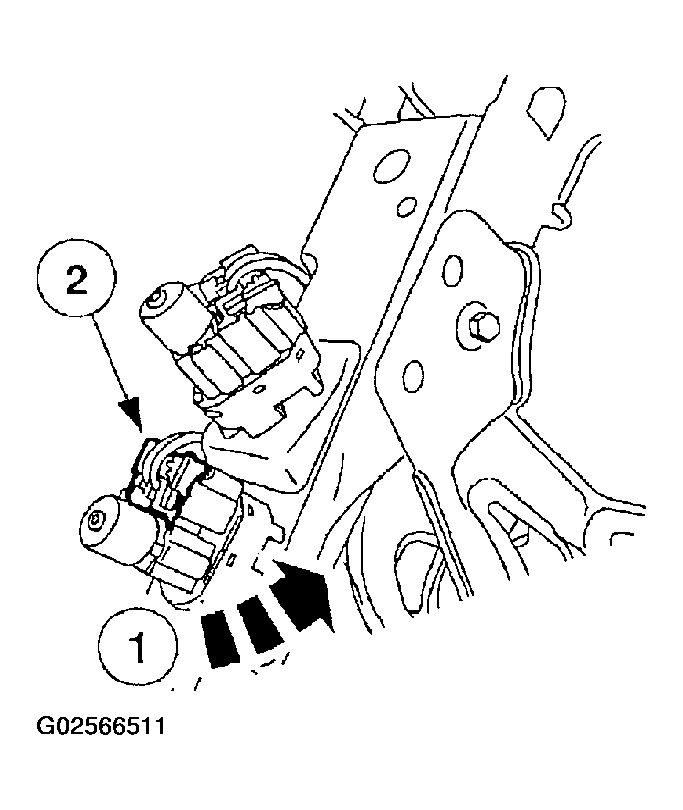

  Fig 2: Installing BPP Switch
  Courtesy of FORD MOTOR CO.
Slowly release the brake pedal.
