Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the luggage compartment door trim panel.
1. Remove the 13 pin-type retainers.
2. Remove the luggage compartment door trim panel.

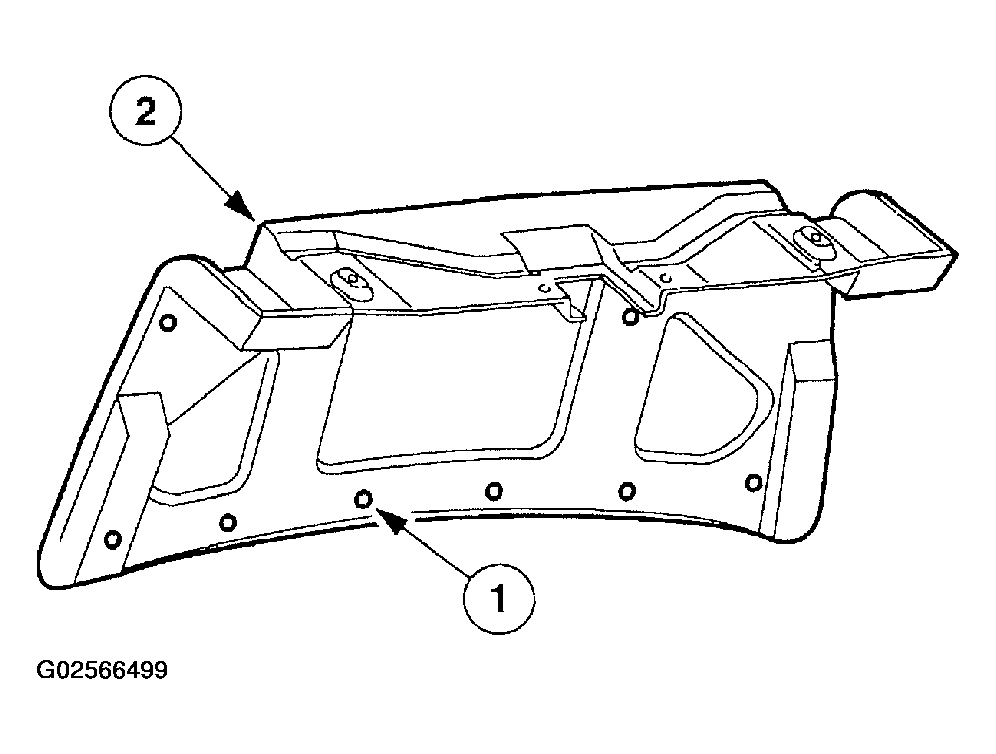

  Fig 1: Removing Luggage Compartment Door Trim Panel
  Courtesy of FORD MOTOR CO.
Remove the rear lamp assembly.
1. Disconnect the electrical connectors.
2. Remove the nuts.
3. Remove the rear lamp assembly.
  - If necessary, install new bulbs.

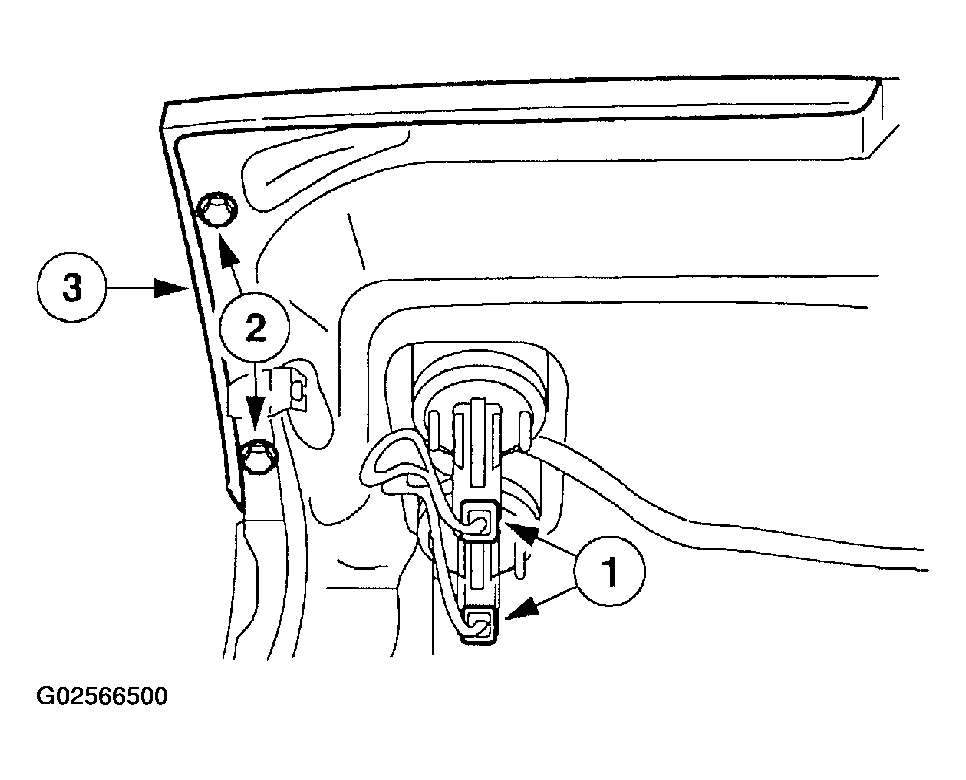

    Fig 2: Removing Rear Lamp Assembly
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
