Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The halogen fog lamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope.

NOTE: The headlamp bulb should not be removed from the headlamp assembly until just before a replacement bulb is installed. Removing the bolt for an extended period of time may affect headlamp bulb performance. Contaminants may enter the headlamp assembly where they can settle on the lens and reflector. Never turn on the headlamps with the bulb removed.

NOTE: Make sure that the headlamp switch and the ignition switch are in the OFF position.

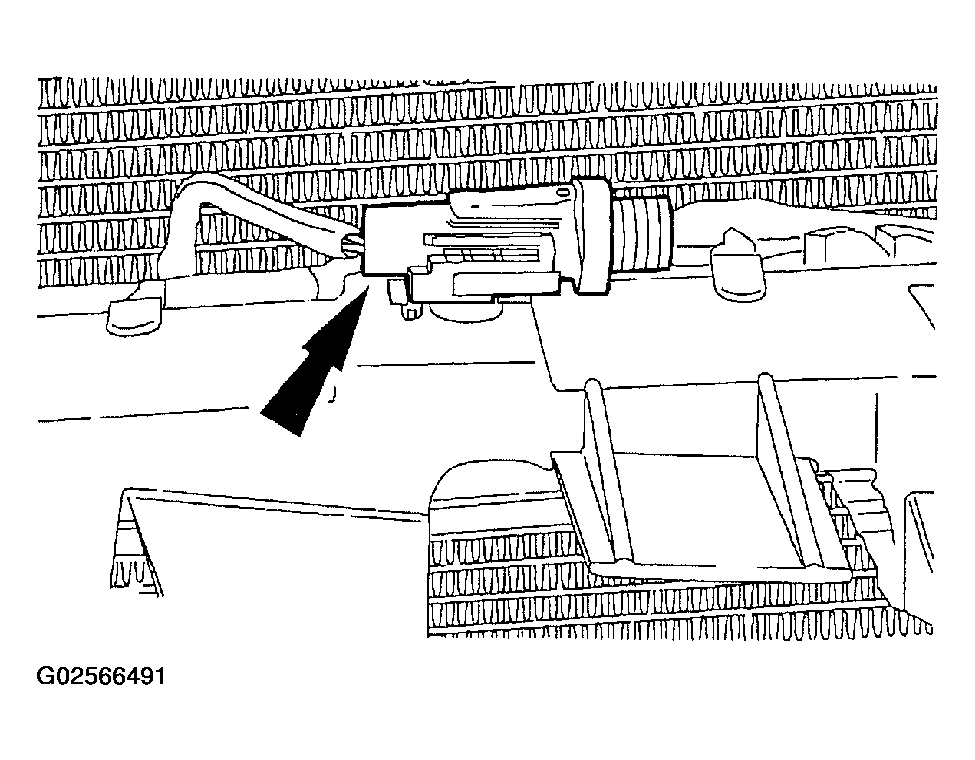

Fig 1: Releasing Ambient Air Temperature Sensor

Courtesy of FORD MOTOR CO.

Release the ambient air temperature sensor.
Remove the radiator grille opening cover at the top shelf of the bumper.

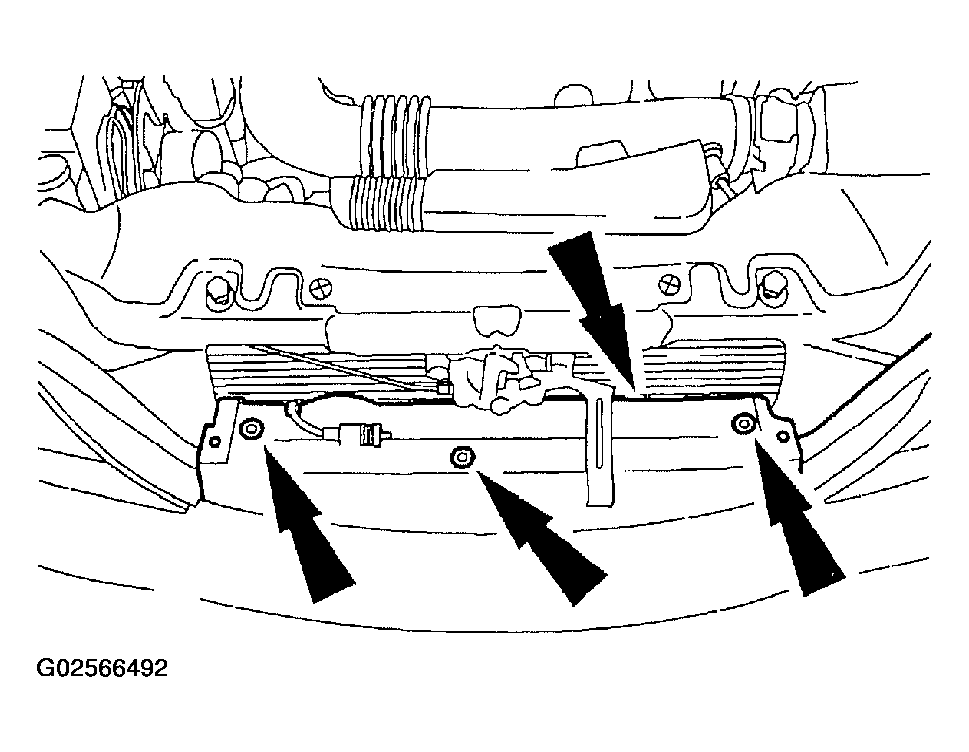

Fig 2: Removing Radiator Grille Opening cover
Courtesy of FORD MOTOR CO.
Remove the radiator upper sight shield.
1. Remove the pin-type retainers.
2. Remove the radiator upper sight shield.

  Fig 3: Removing Radiator Upper Sight Shield
  Courtesy of FORD MOTOR CO.
Position the headlamp assembly for removal.
1. Remove the three bolts.
2. Position the headlamp assembly for removal.
  - Disconnect the electrical connectors and remove the headlamp assembly.

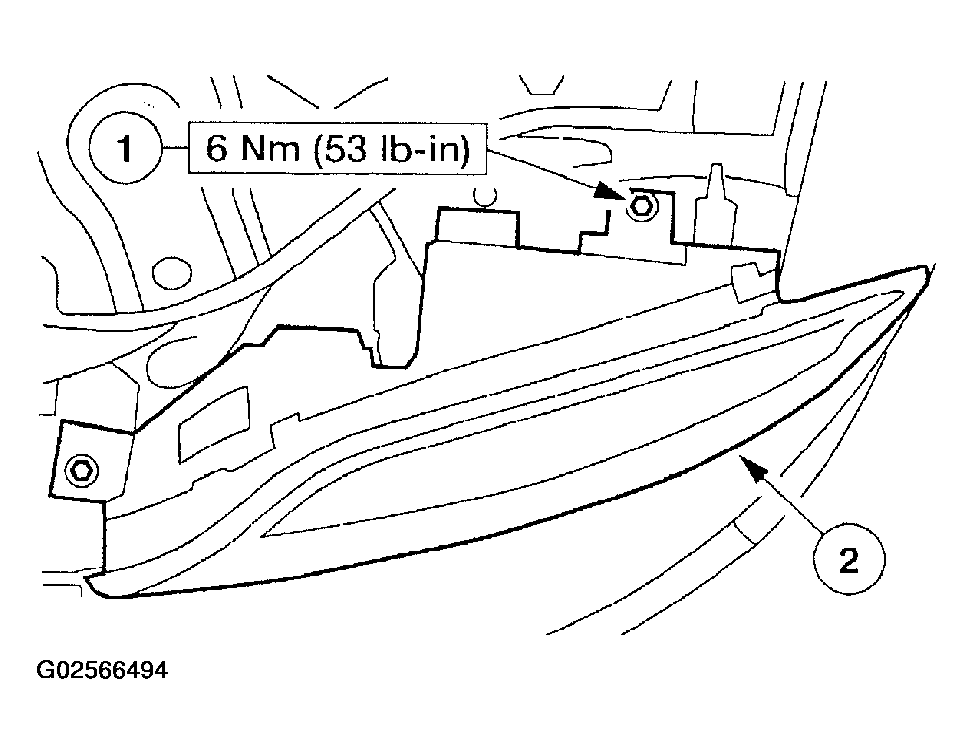

    Fig 4: Removing Headlamp Assembly
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- If necessary, install new bulbs.
- If necessary, adjust the headlamps. For additional information, see refer to HEADLAMP ADJUSTMENT .
