Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: The halogen fog lamp bulb contains gas under pressure. The bulb may shatter if the glass envelope is scratched or if the bulb is dropped. Handle the bulb only by its base. Avoid touching the glass envelope.

Raise and support the vehicle. For additional information, see JACKING & HOISTING .
Remove the fog lamp assembly.
1. Disconnect the electrical connector.
2. Remove the nuts.
3. Remove the fog lamp assembly.
  - If necessary, install a new bulb.

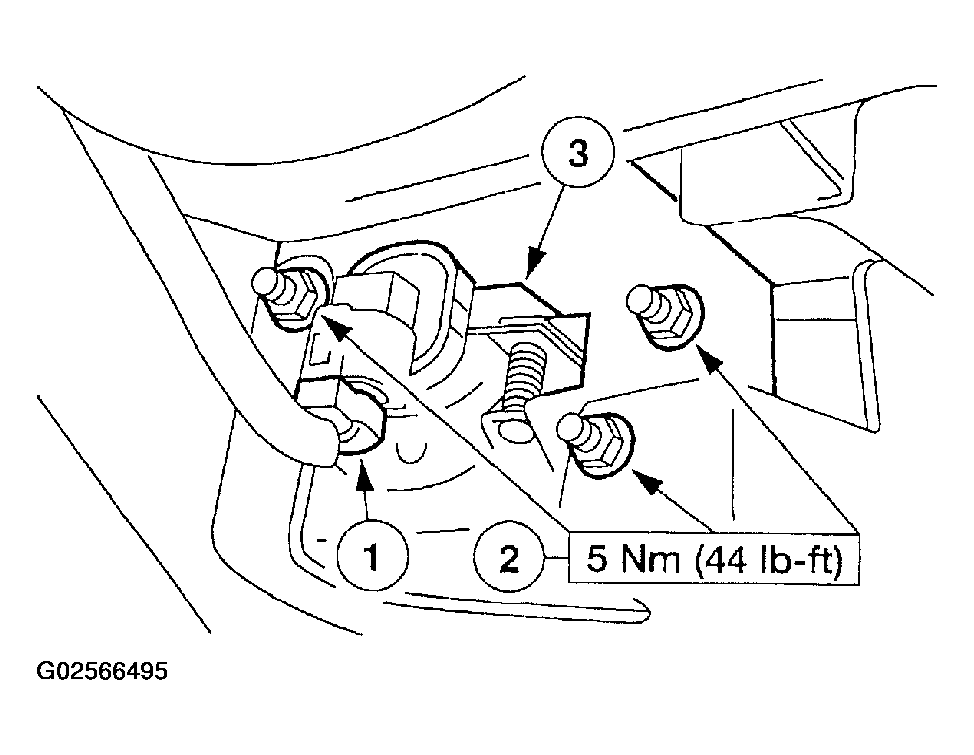

    Fig 1: Removing Fog Lamp Assembly
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
