Pinpoint Test AE: The Hazard Flasher Lamps Are Never/Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

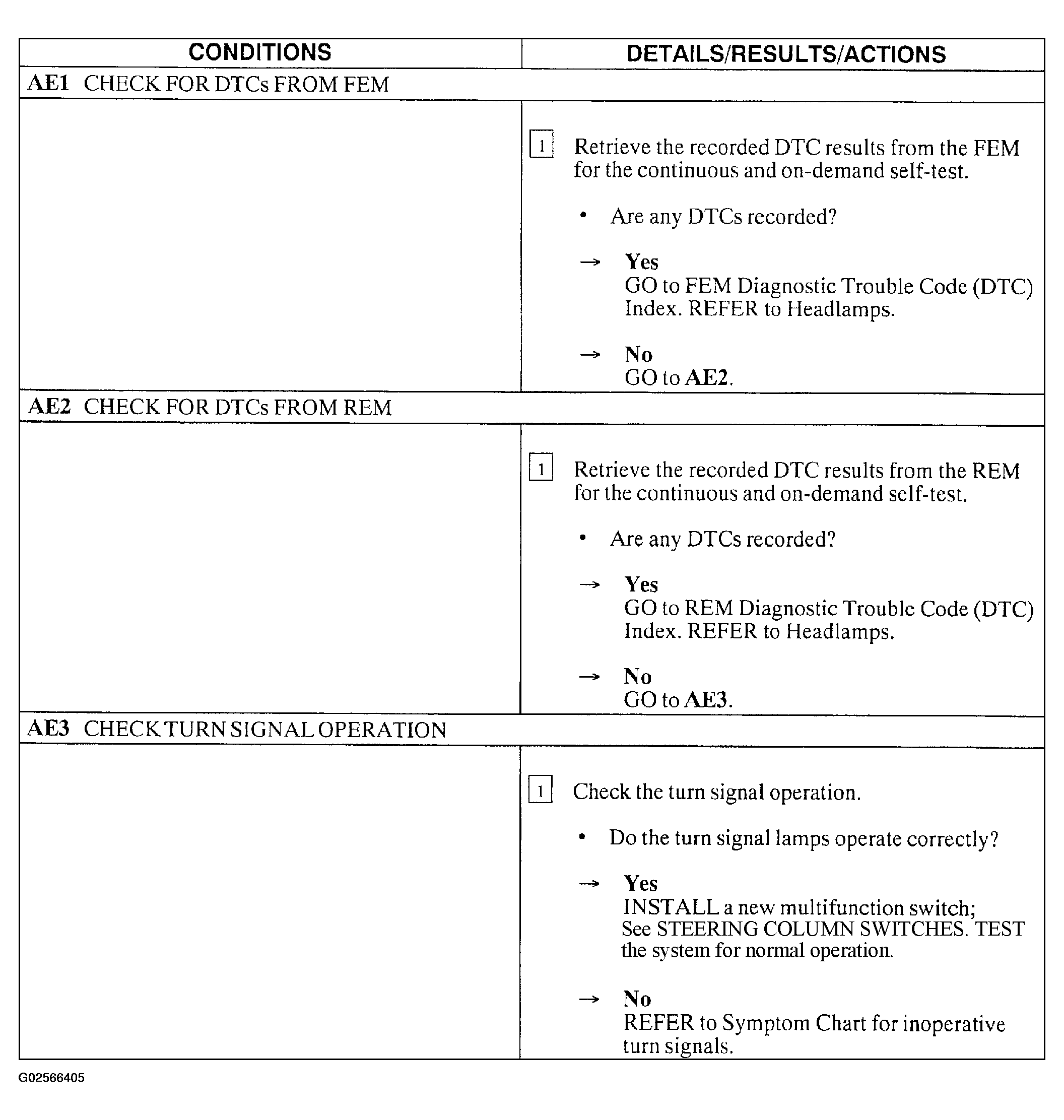

Fig 1: Pinpoint Test AE: The Hazard Flasher Lamps Are Never/Always On (Steps AE1-AE3)
G02566405Courtesy of FORD MOTOR CO.
