Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

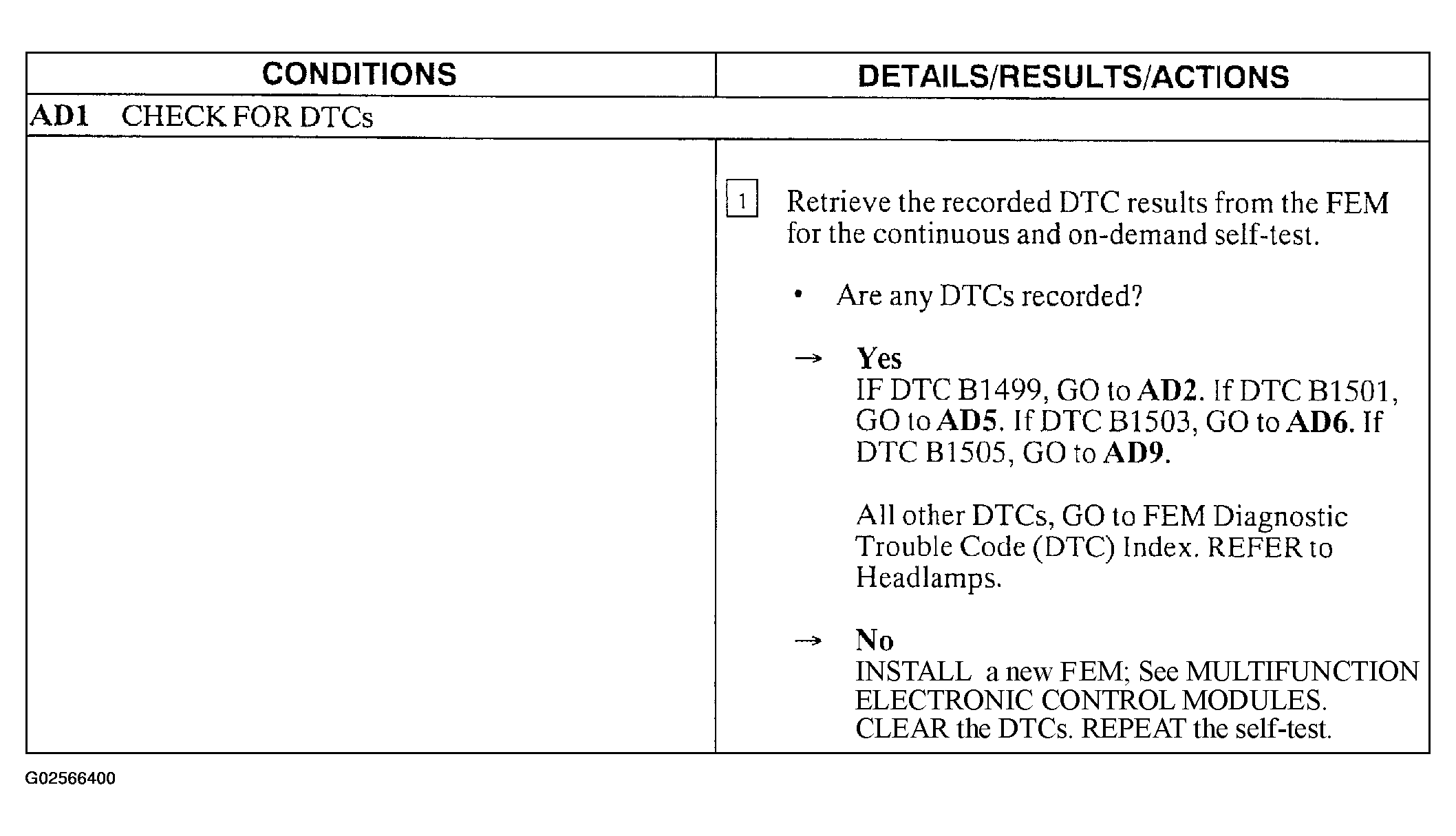

Fig 1: Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Step AD1)

Courtesy of FORD MOTOR CO.

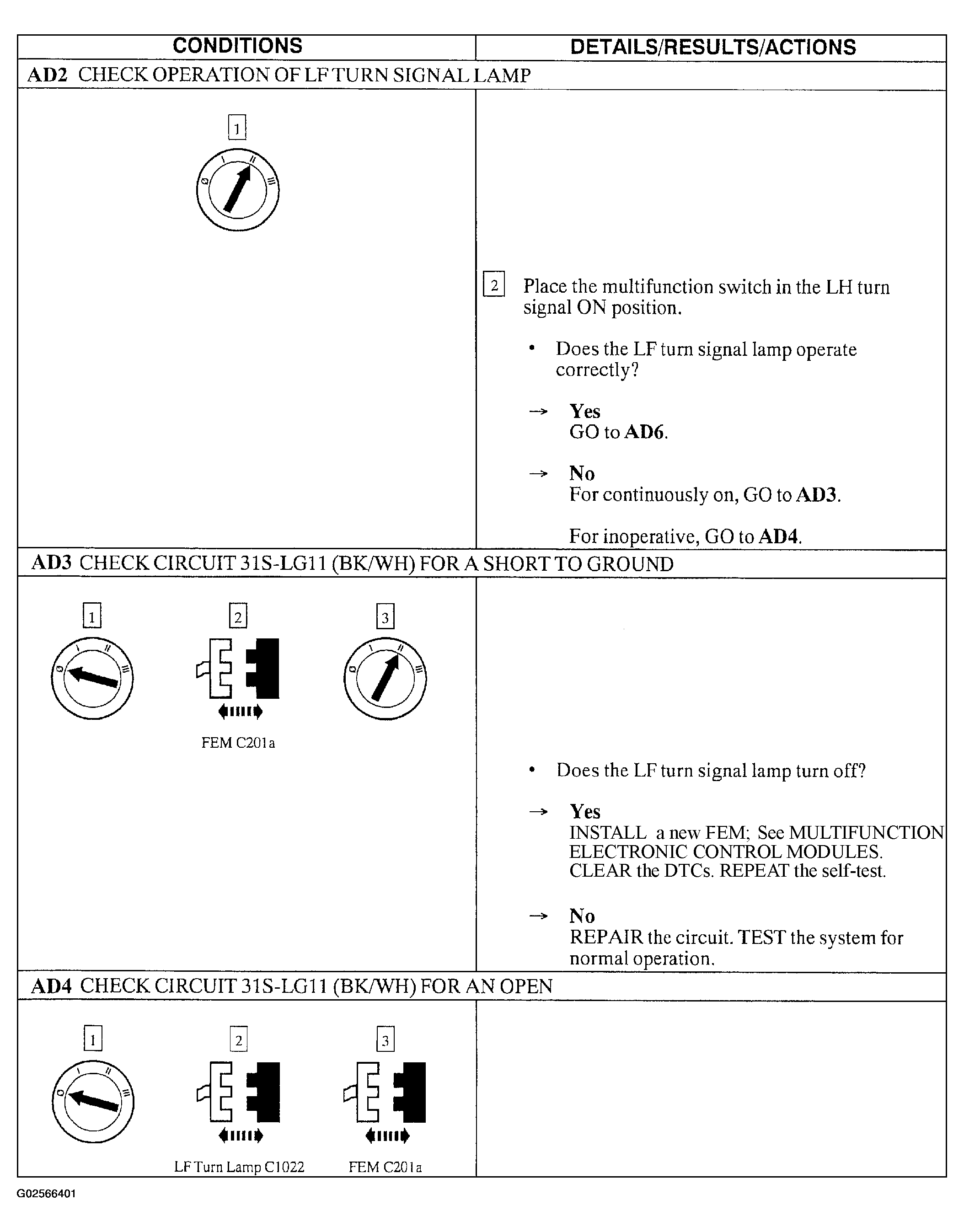

Fig 2: Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Steps AD2-AD4)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Steps AD4 Cont. -AD5)

Courtesy of FORD MOTOR CO.

Fig 4: Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Steps AD6-AD8)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test AD: One Turn Signal/Hazard Lamp Is Never/Always On - Front (Steps AD8 Cont. -AD9)

Courtesy of FORD MOTOR CO.
