Pinpoint Test AA: One Turn Signal Lamp Is Never On - LR Turn Lamp

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

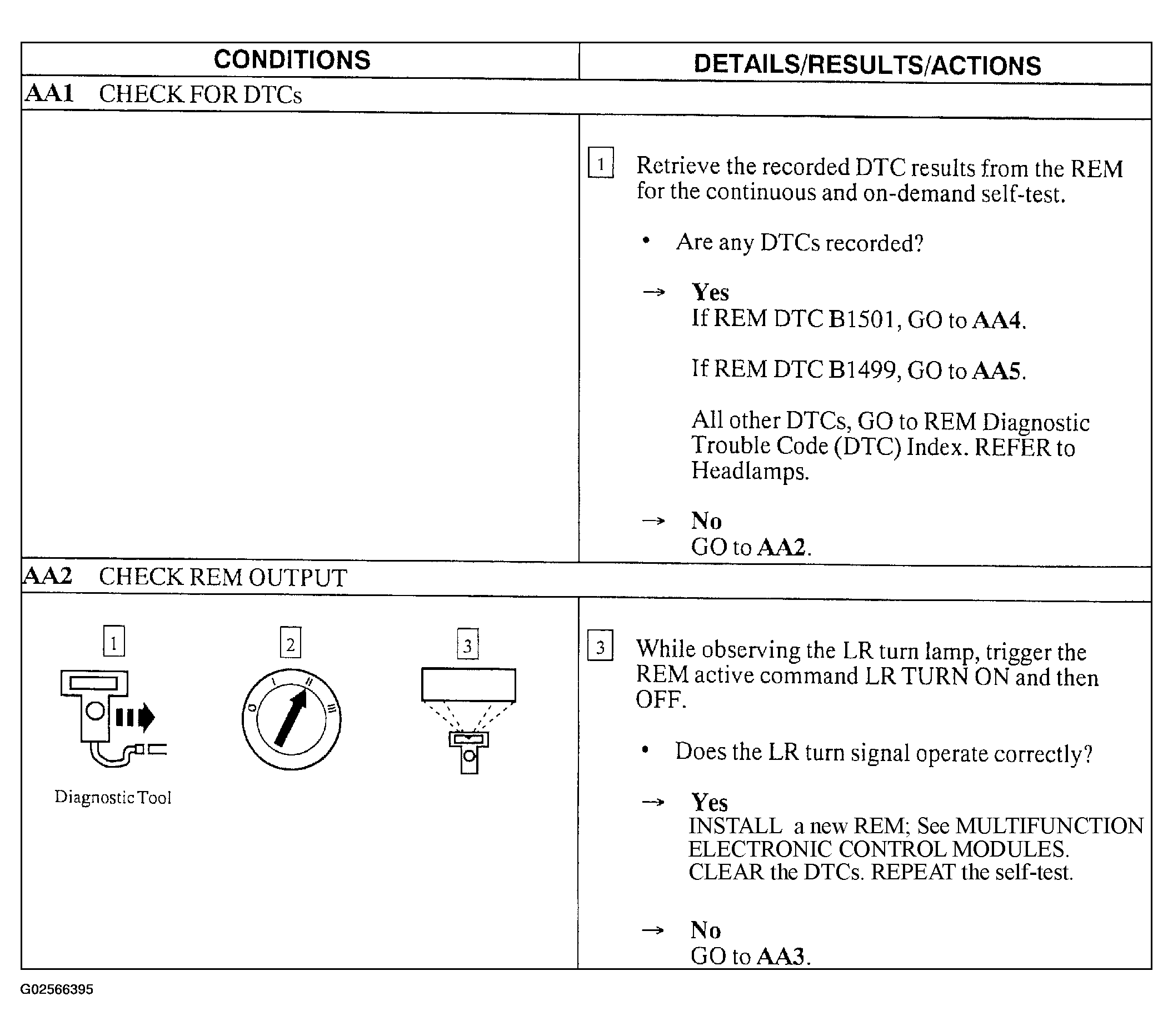

Fig 1: Pinpoint Test AA: One Turn Signal Lamp Is Never On - LR Turn Lamp (Steps AA1-AA2)

Courtesy of FORD MOTOR CO.

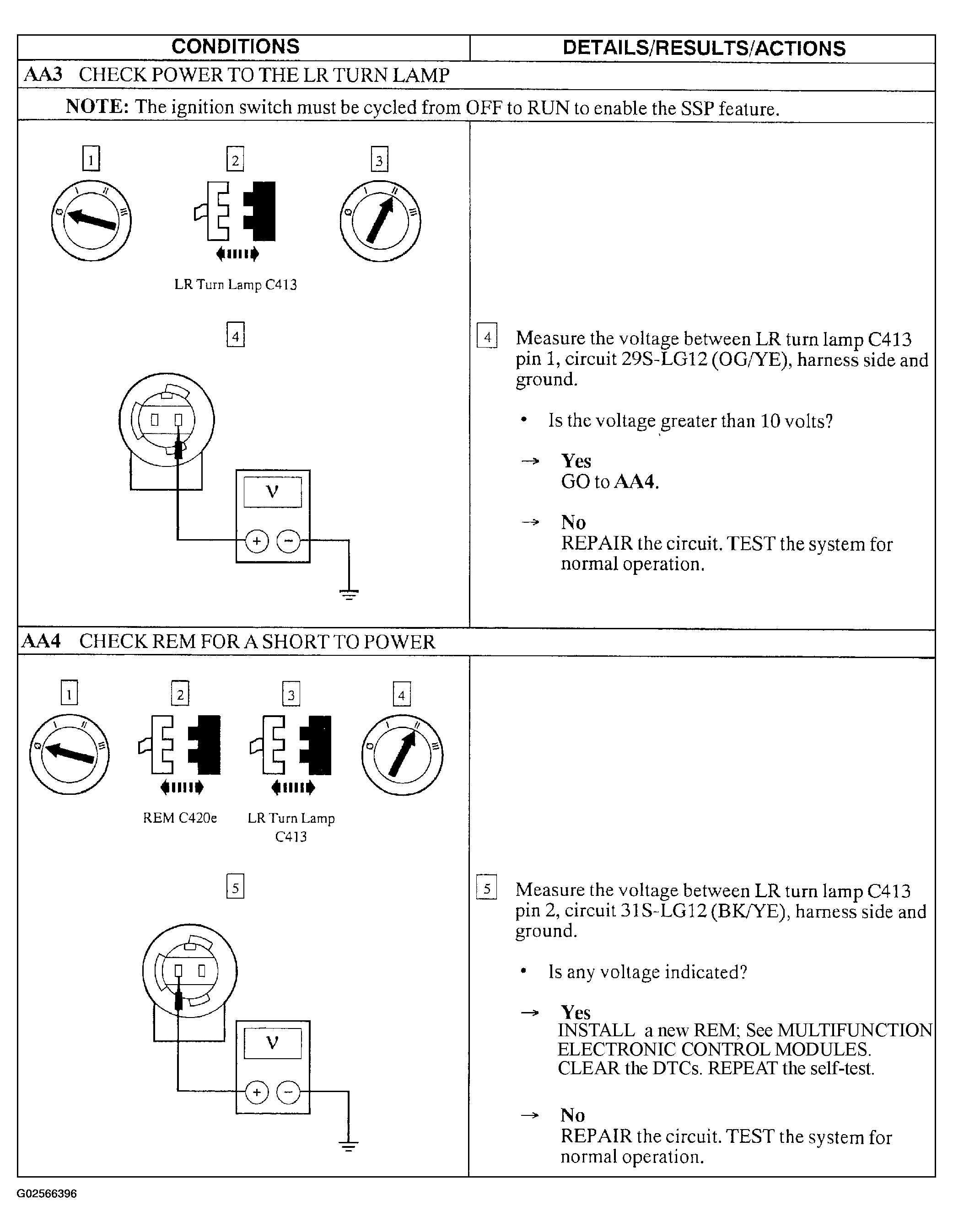

Fig 2: Pinpoint Test AA: One Turn Signal Lamp Is Never On - LR Turn Lamp (Steps AA3-AA4)

Courtesy of FORD MOTOR CO.

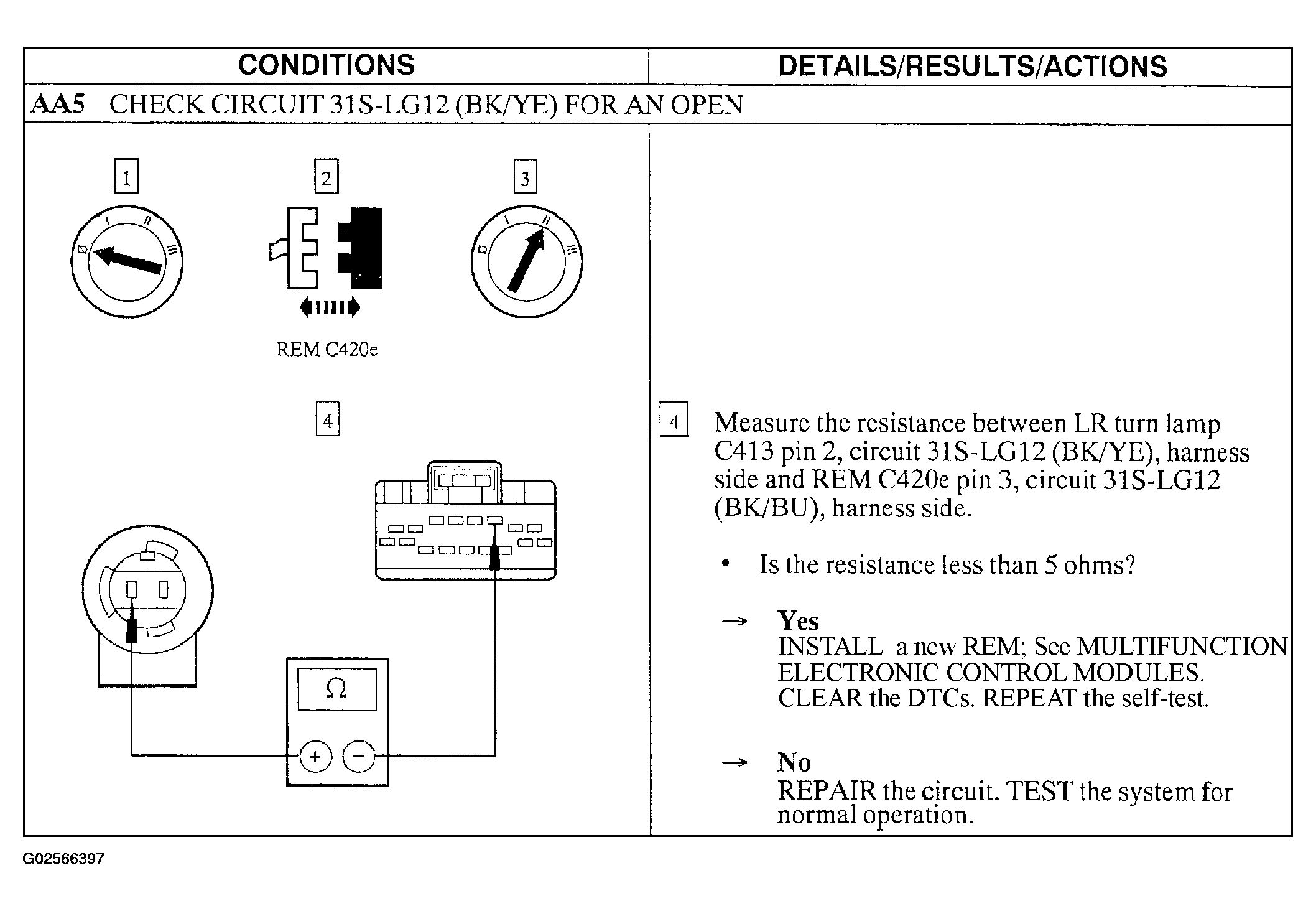

Fig 3: Pinpoint Test AA: One Turn Signal Lamp Is Never On - LR Turn Lamp (Step AA5)

Courtesy of FORD MOTOR CO.
