Pinpoint Test U: The Exterior Lamp(s) Are Inoperative - RR Stop & Park Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

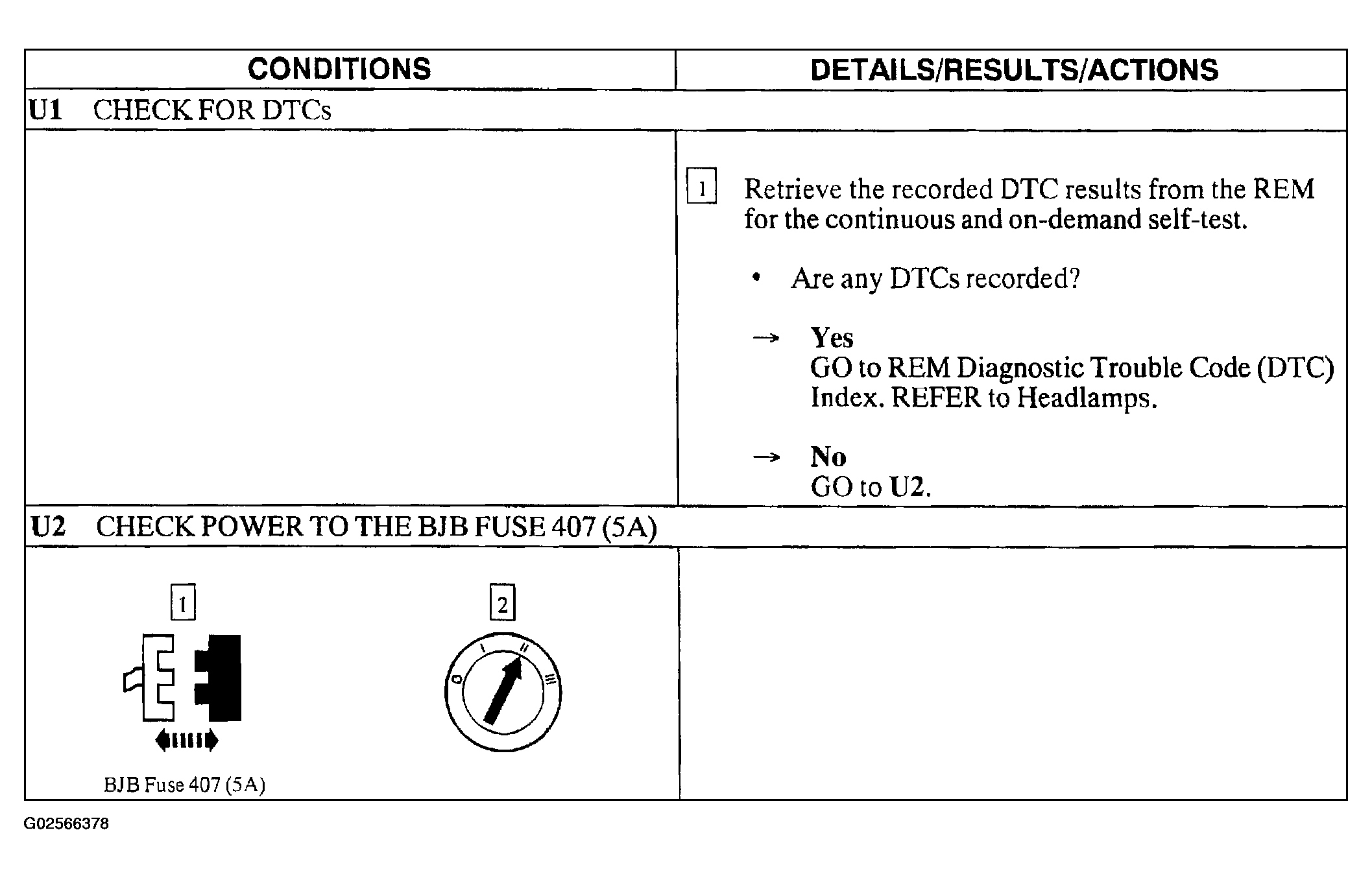

Fig 1: Pinpoint Test U: The Exterior Lamp(s) Are Inoperative - RR Stop & Park Lamps (Steps U1-U2)

Courtesy of FORD MOTOR CO.

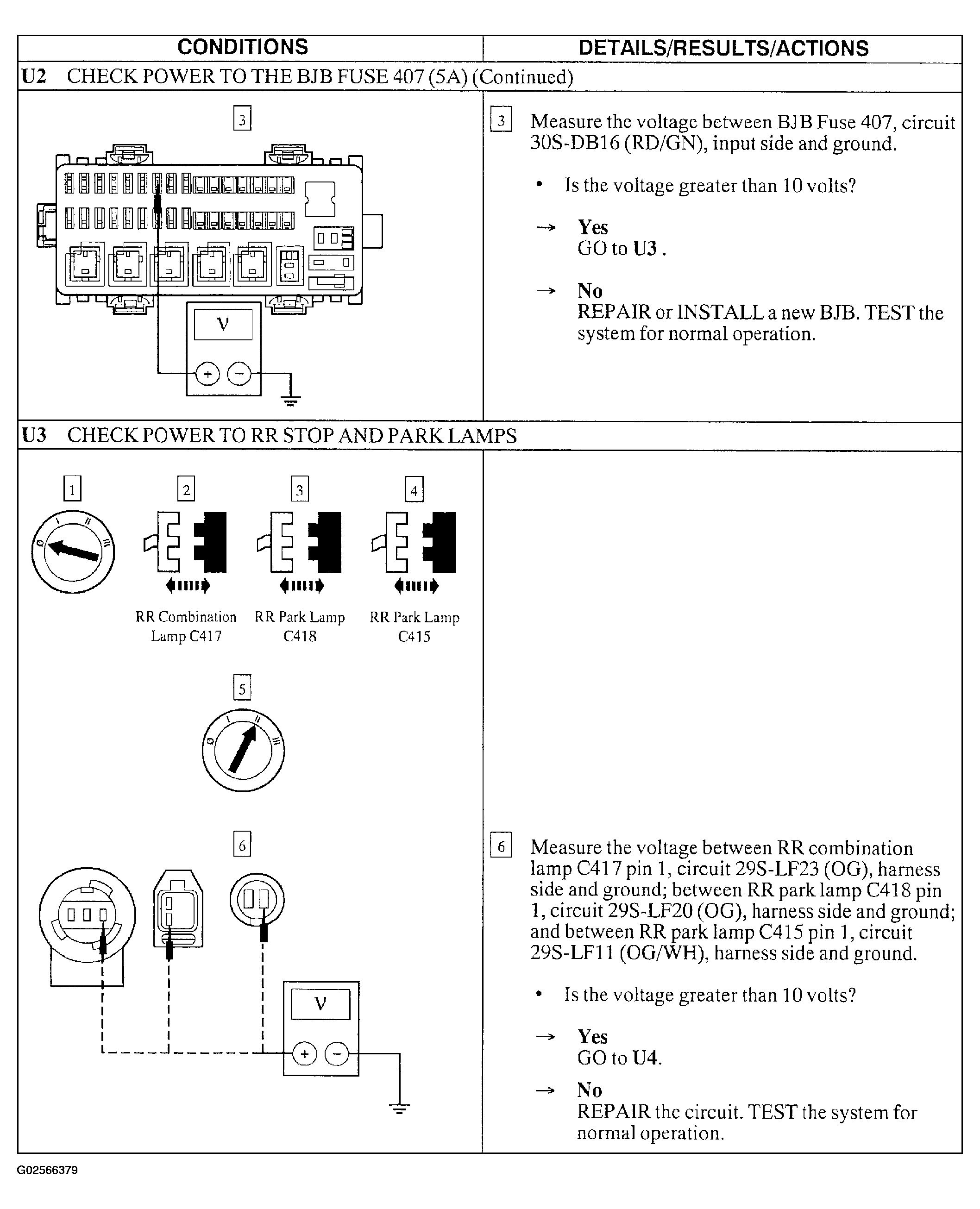

Fig 2: Pinpoint Test U: The Exterior Lamp(s) Are Inoperative - RR Stop & Park Lamps (Steps U2 Cont. -U3)

Courtesy of FORD MOTOR CO.

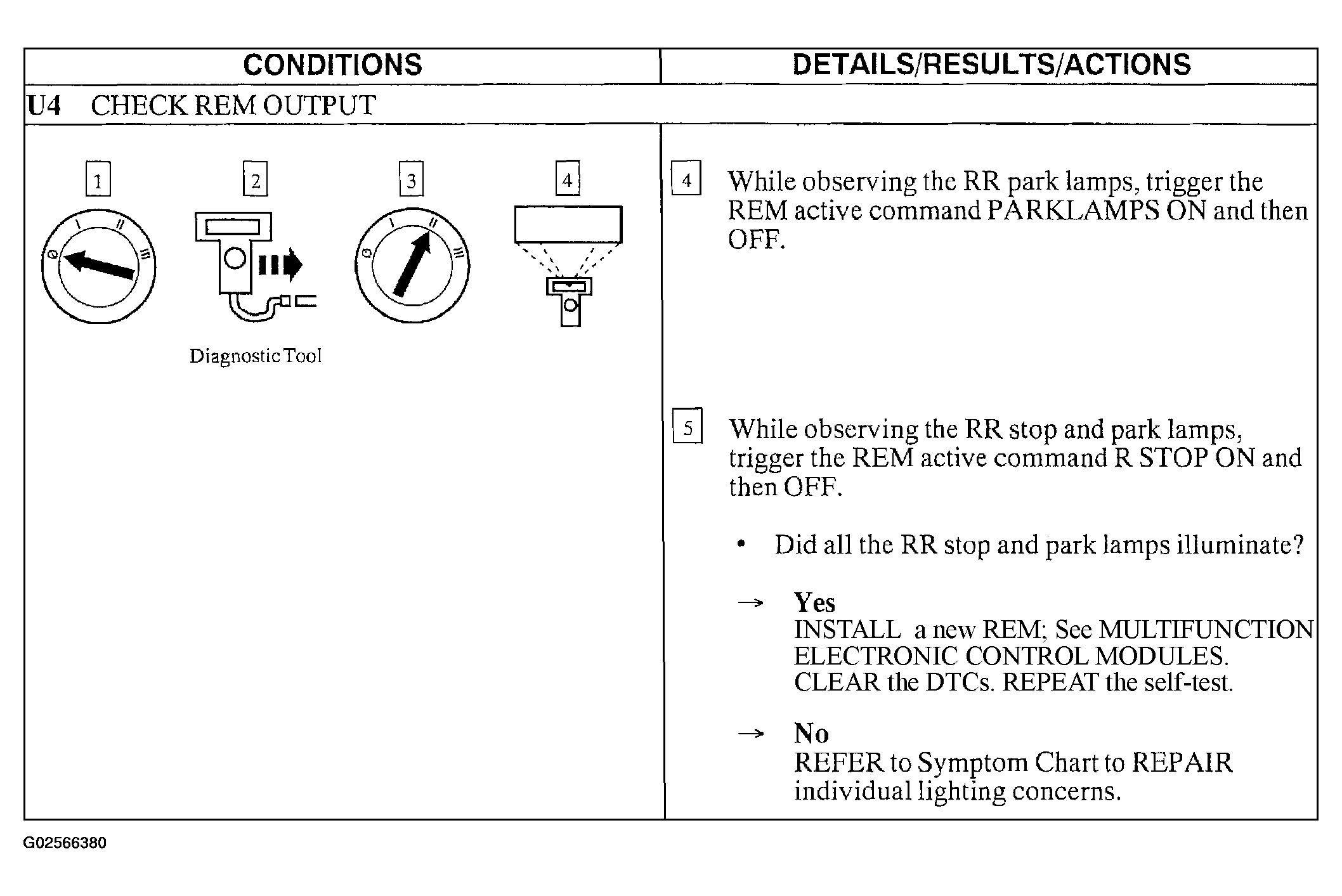

Fig 3: Pinpoint Test U: The Exterior Lamp(s) Are Inoperative - RR Stop & Park Lamps (Step U4)

Courtesy of FORD MOTOR CO.
