Pinpoint Test S: One Or More Stoplamps Are Inoperative - High Mounted Stoplamp

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

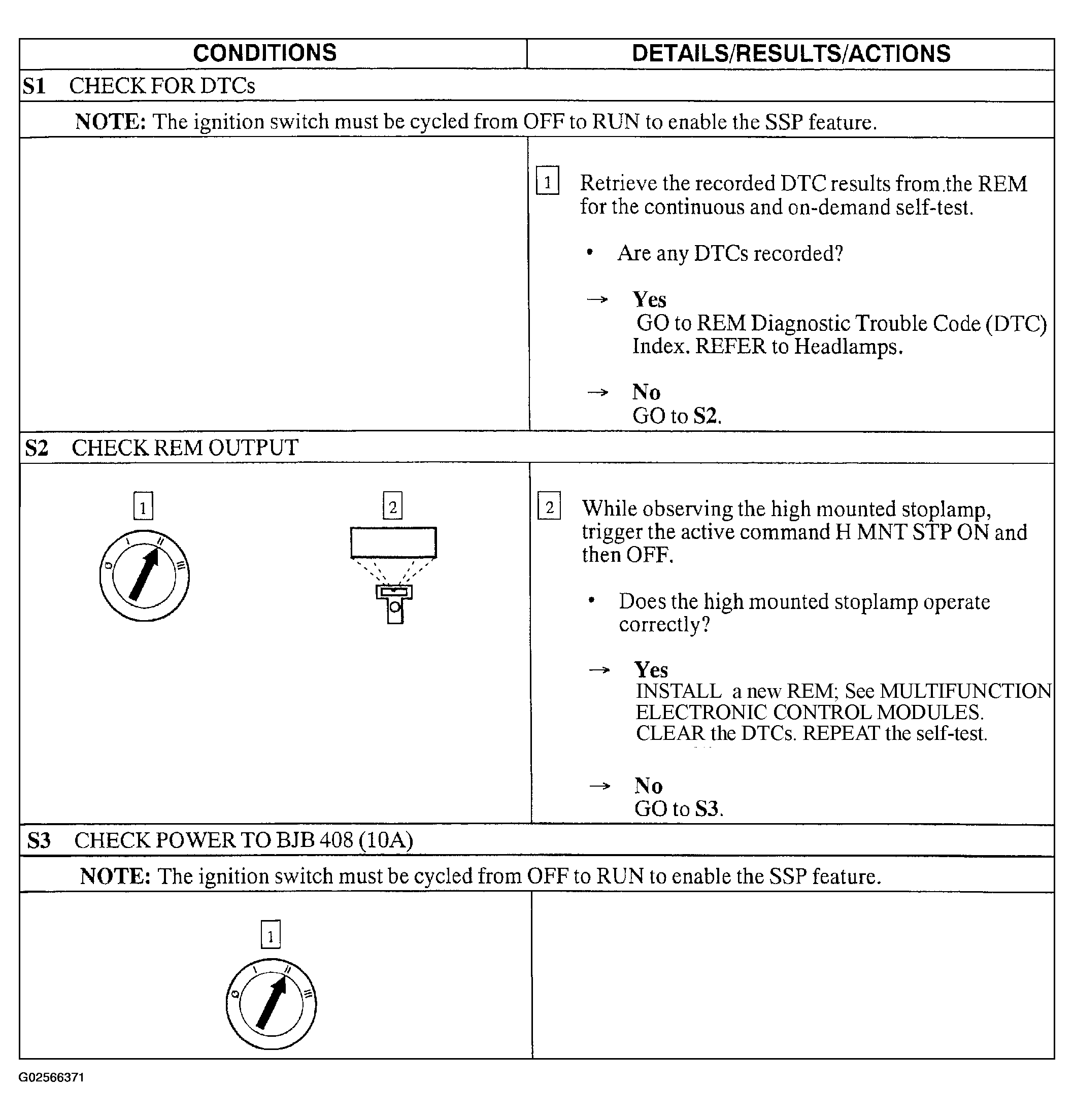

Fig 1: Pinpoint Test S: One Or More Stoplamps Are Inoperative - High Mounted Stoplamp (Steps S1-S3)

Courtesy of FORD MOTOR CO.

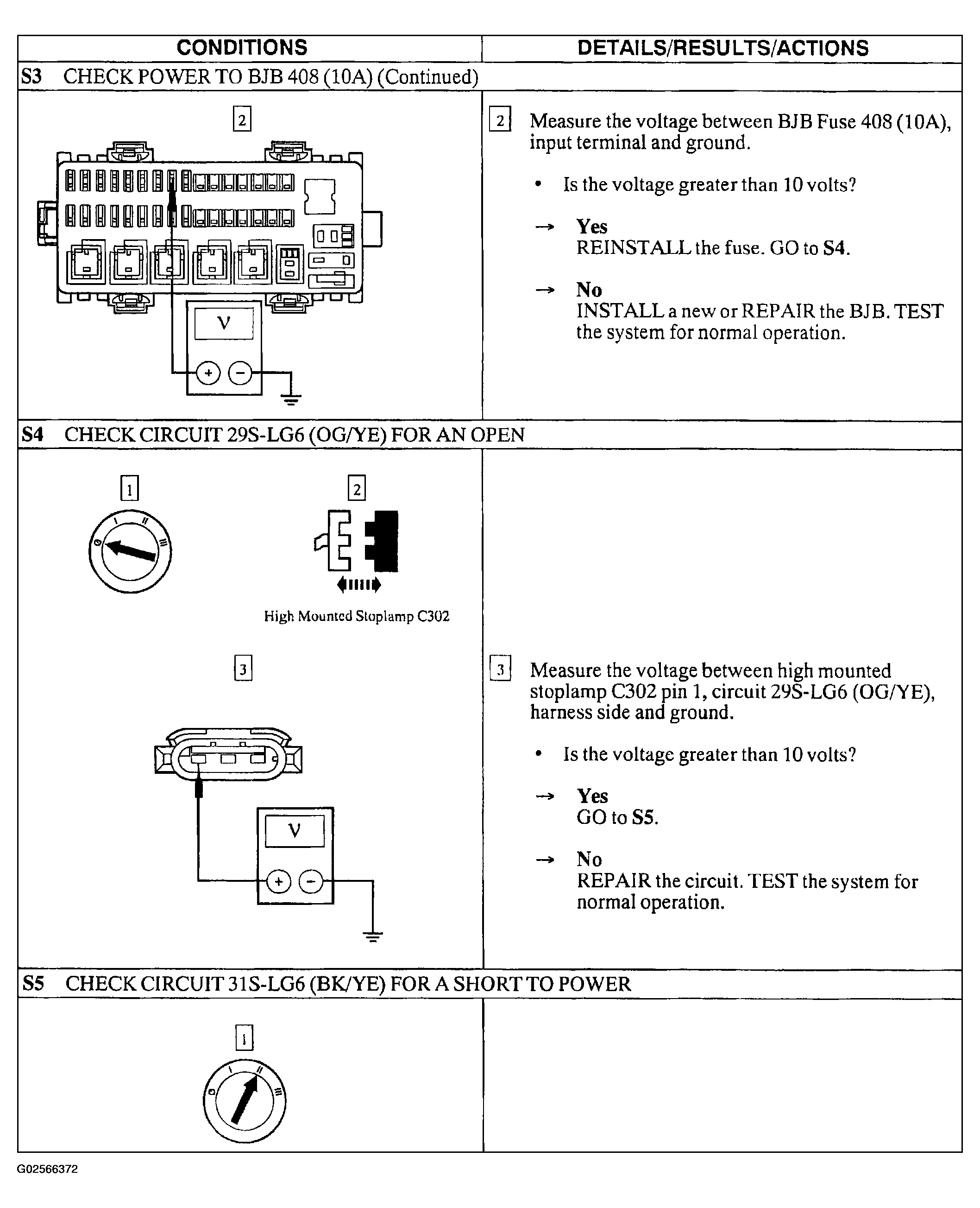

Fig 2: Pinpoint Test S: One Or More Stoplamps Are Inoperative - High Mounted Stoplamp (Steps S3 Cont. -S5)

Courtesy of FORD MOTOR CO.

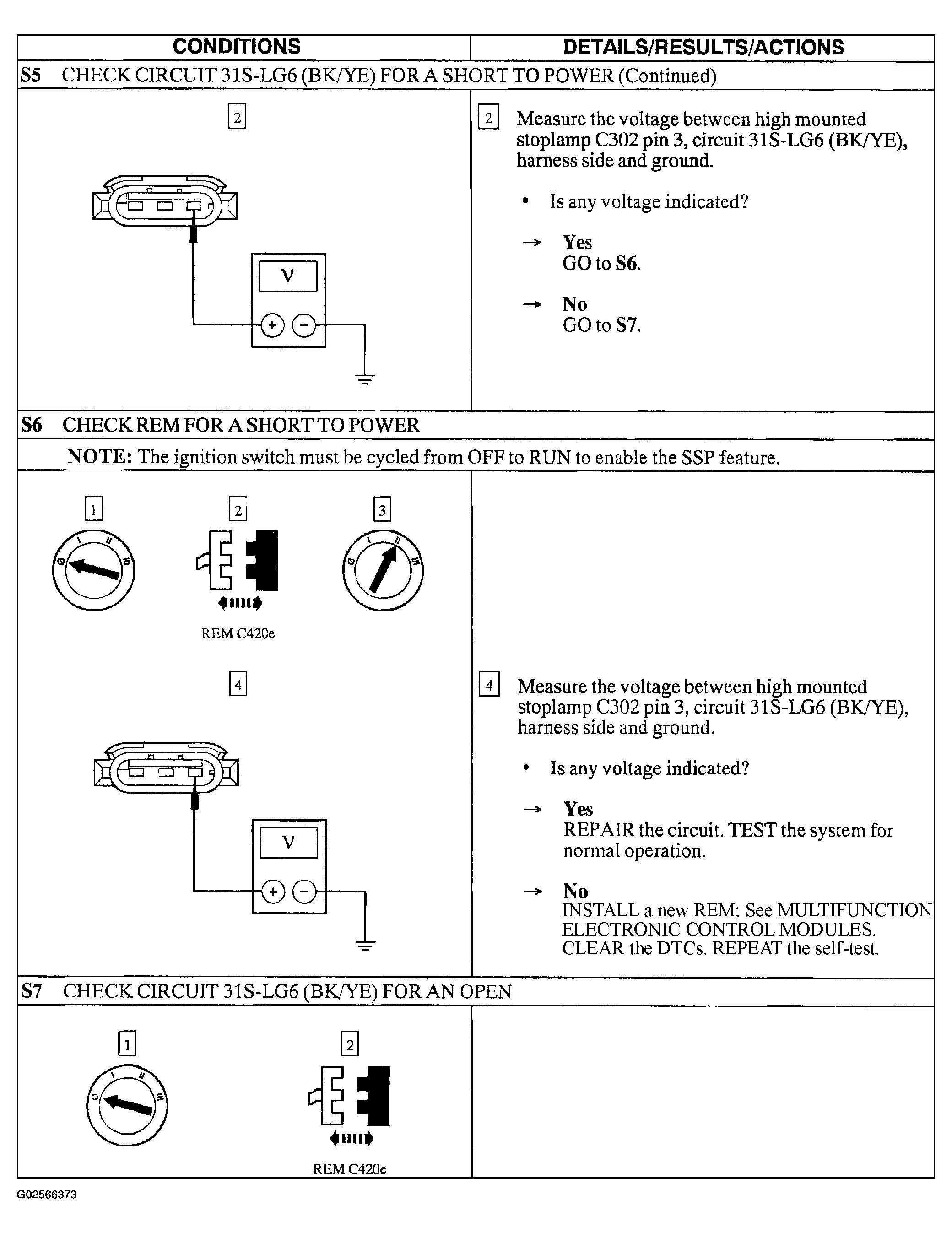

Fig 3: Pinpoint Test S: One Or More Stoplamps Are Inoperative - High Mounted Stoplamp (Steps S5 Cont. -S7)

Courtesy of FORD MOTOR CO.

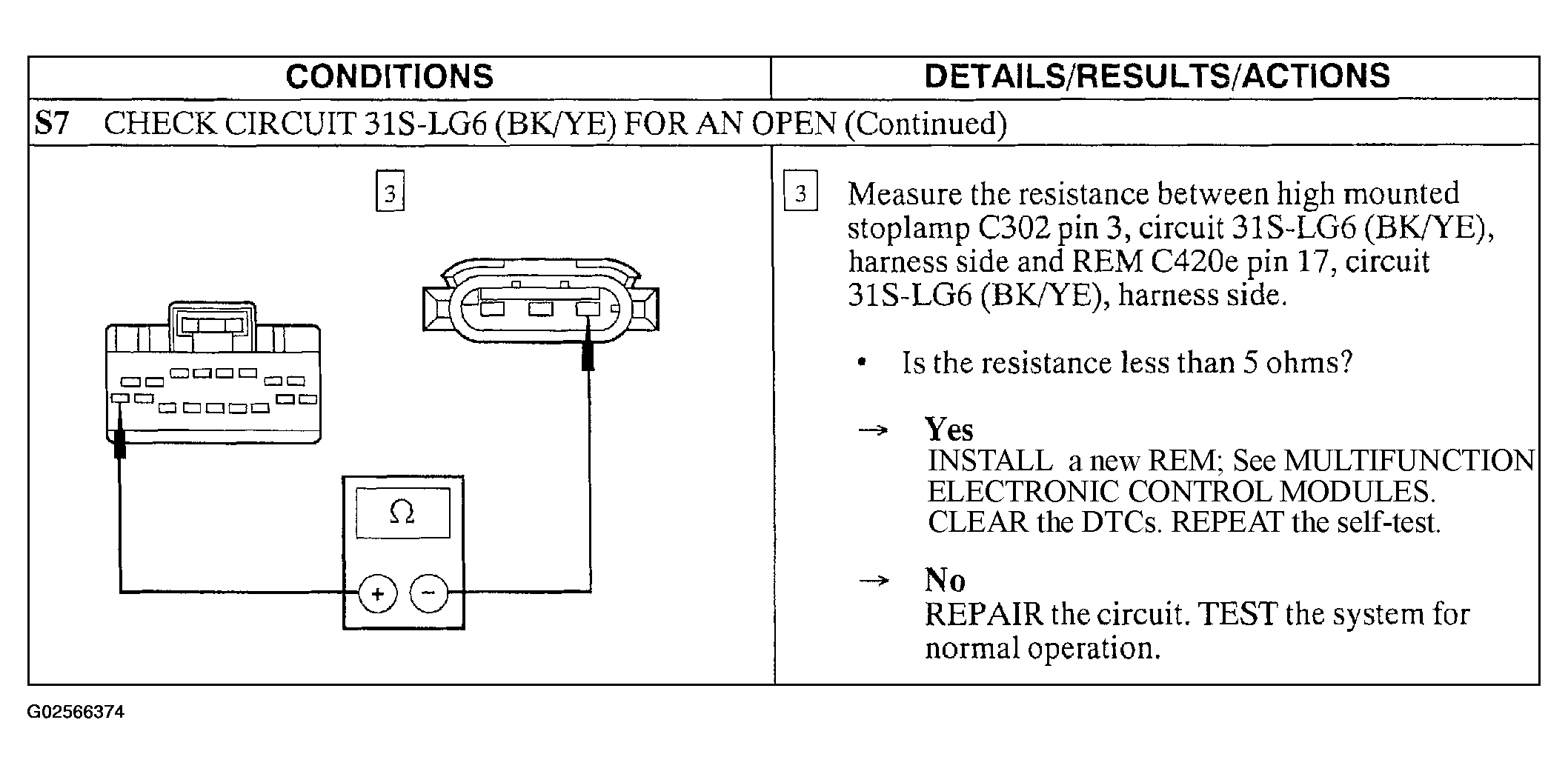

Fig 4: Pinpoint Test S: One Or More Stoplamps Are Inoperative - High Mounted Stoplamp (Step S7 Cont.)

Courtesy of FORD MOTOR CO.
