Pinpoint Test R: One Or More Stoplamps Are Inoperative - LR Stoplamp

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

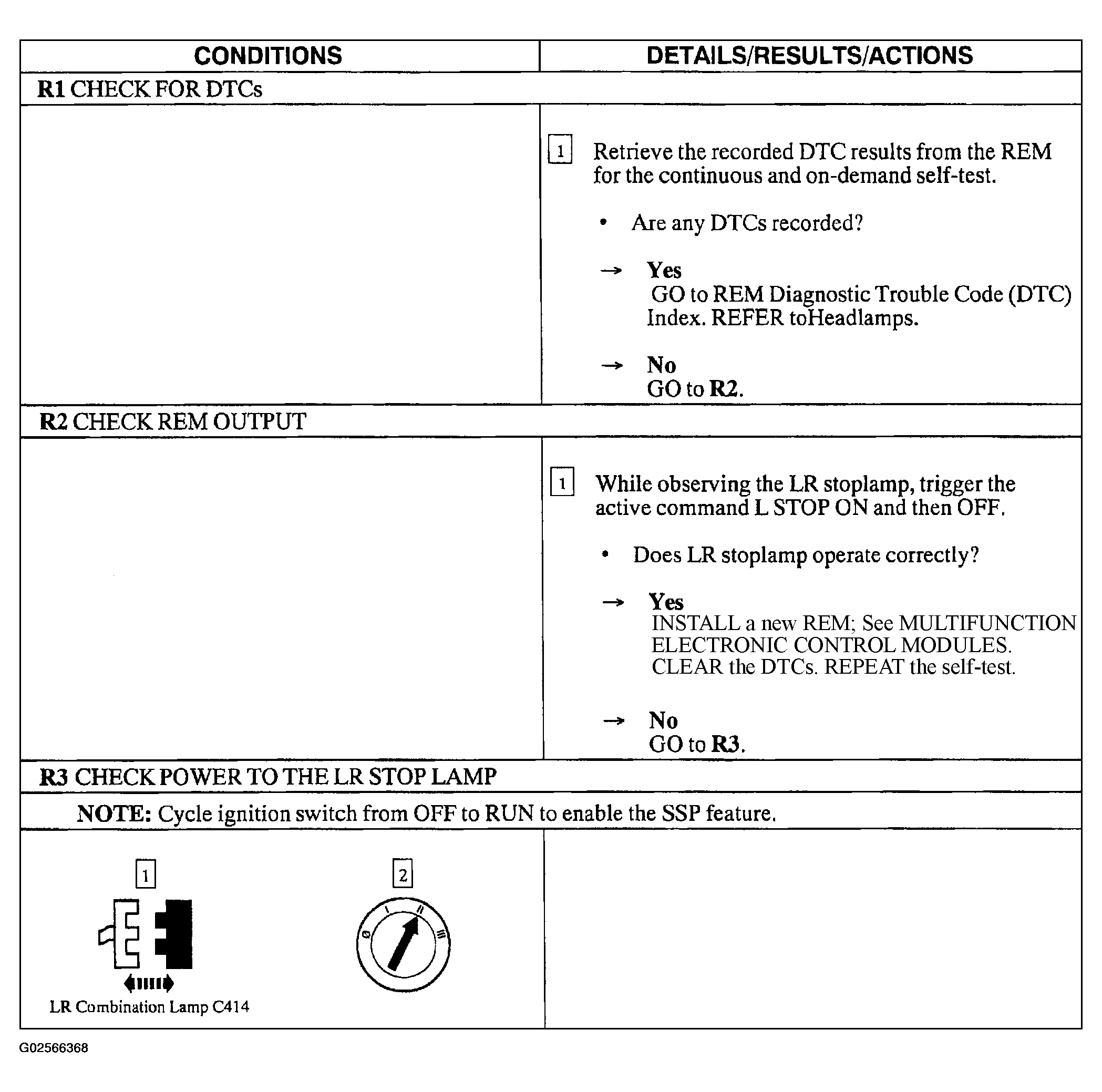

Fig 1: Pinpoint Test R: One Or More Stoplamps Are Inoperative - LR Stoplamp (Steps R1-R3)

Courtesy of FORD MOTOR CO.

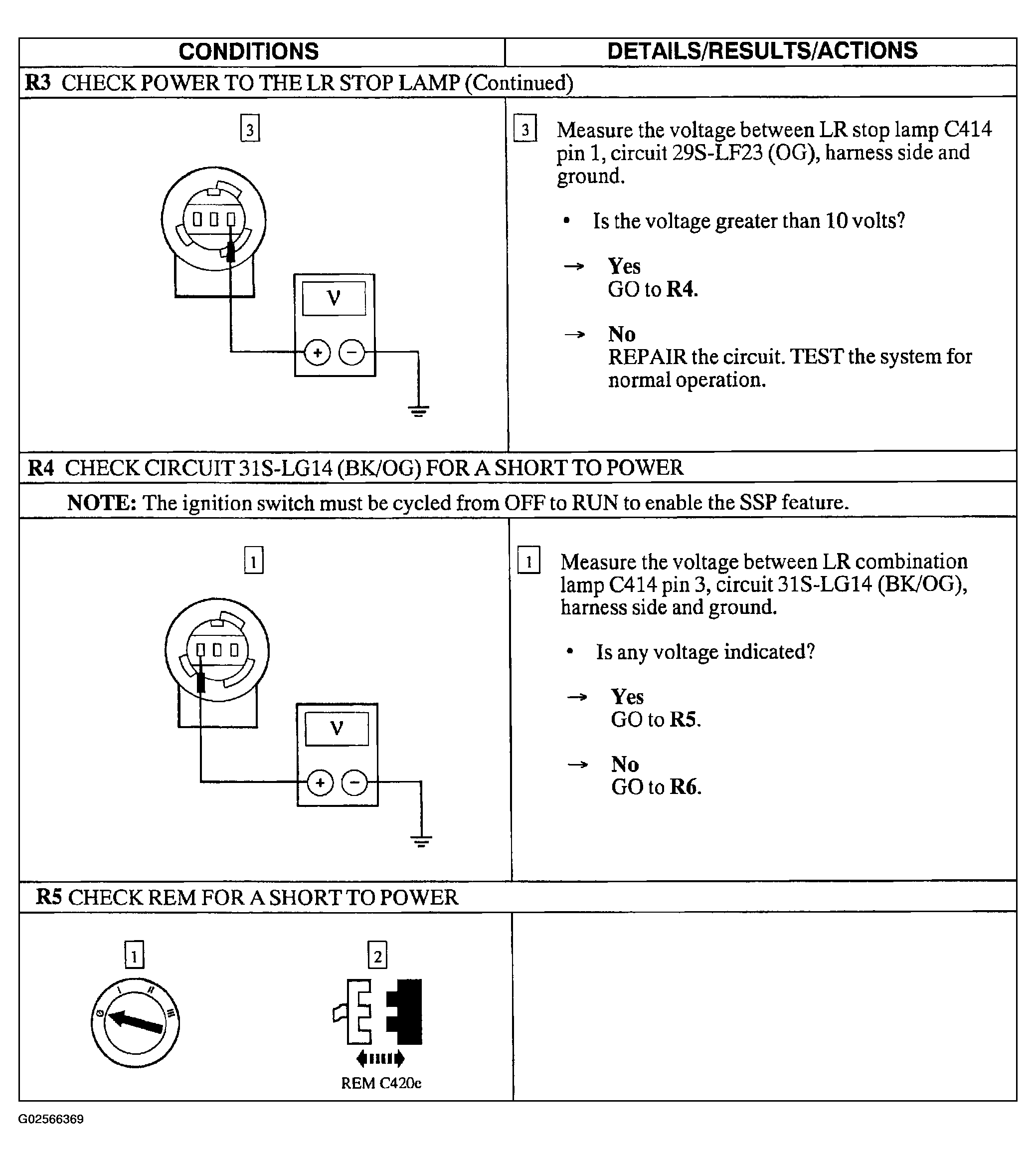

Fig 2: Pinpoint Test R: One Or More Stoplamps Are Inoperative - LR Stoplamp (Steps R3 Cont. -R5)

Courtesy of FORD MOTOR CO.

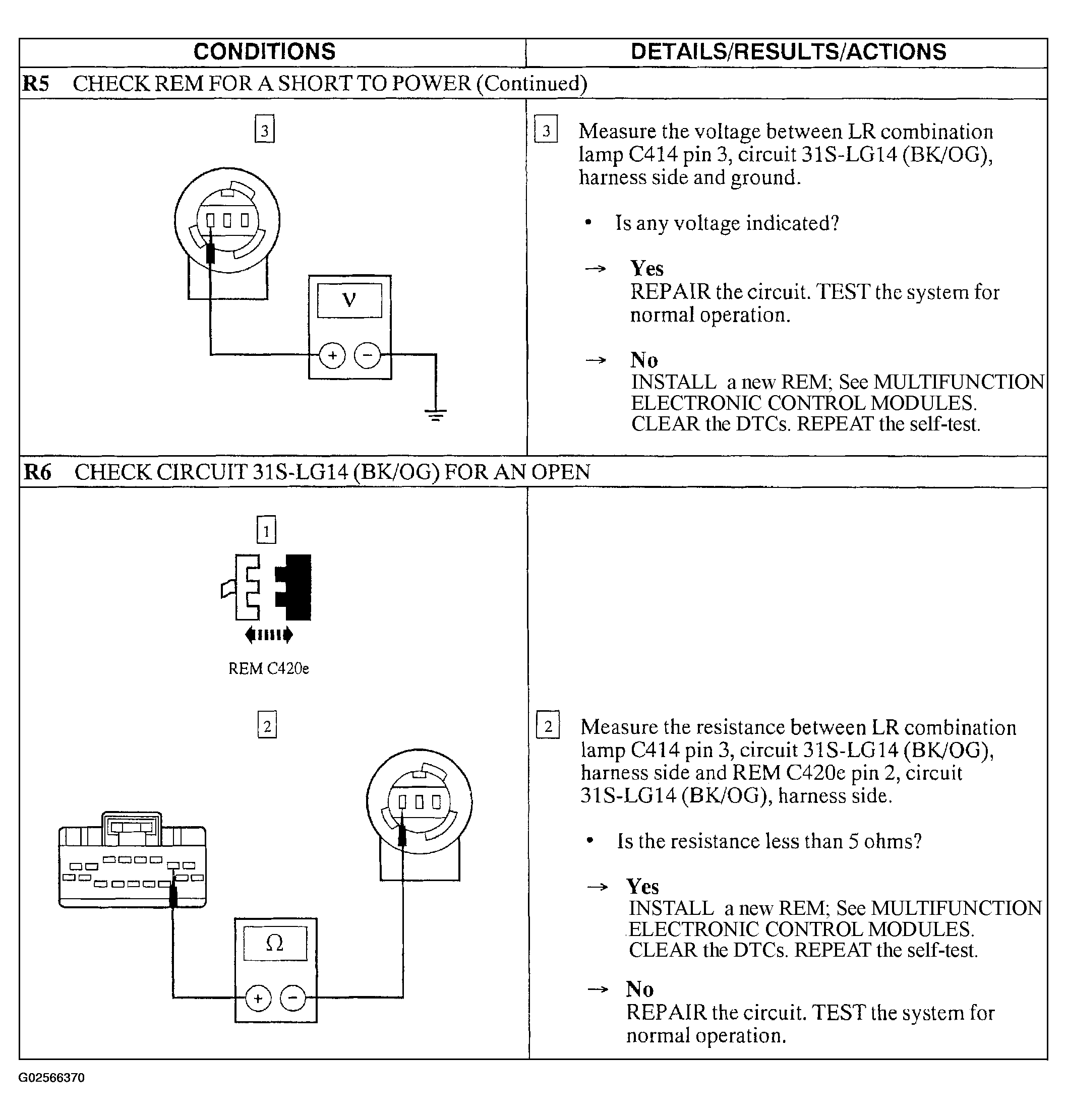

Fig 3: Pinpoint Test R: One Or More Stoplamps Are Inoperative - LR Stoplamp (Steps R5 Cont. -R6)

Courtesy of FORD MOTOR CO.
