Pinpoint Test P: The Stoplamps Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

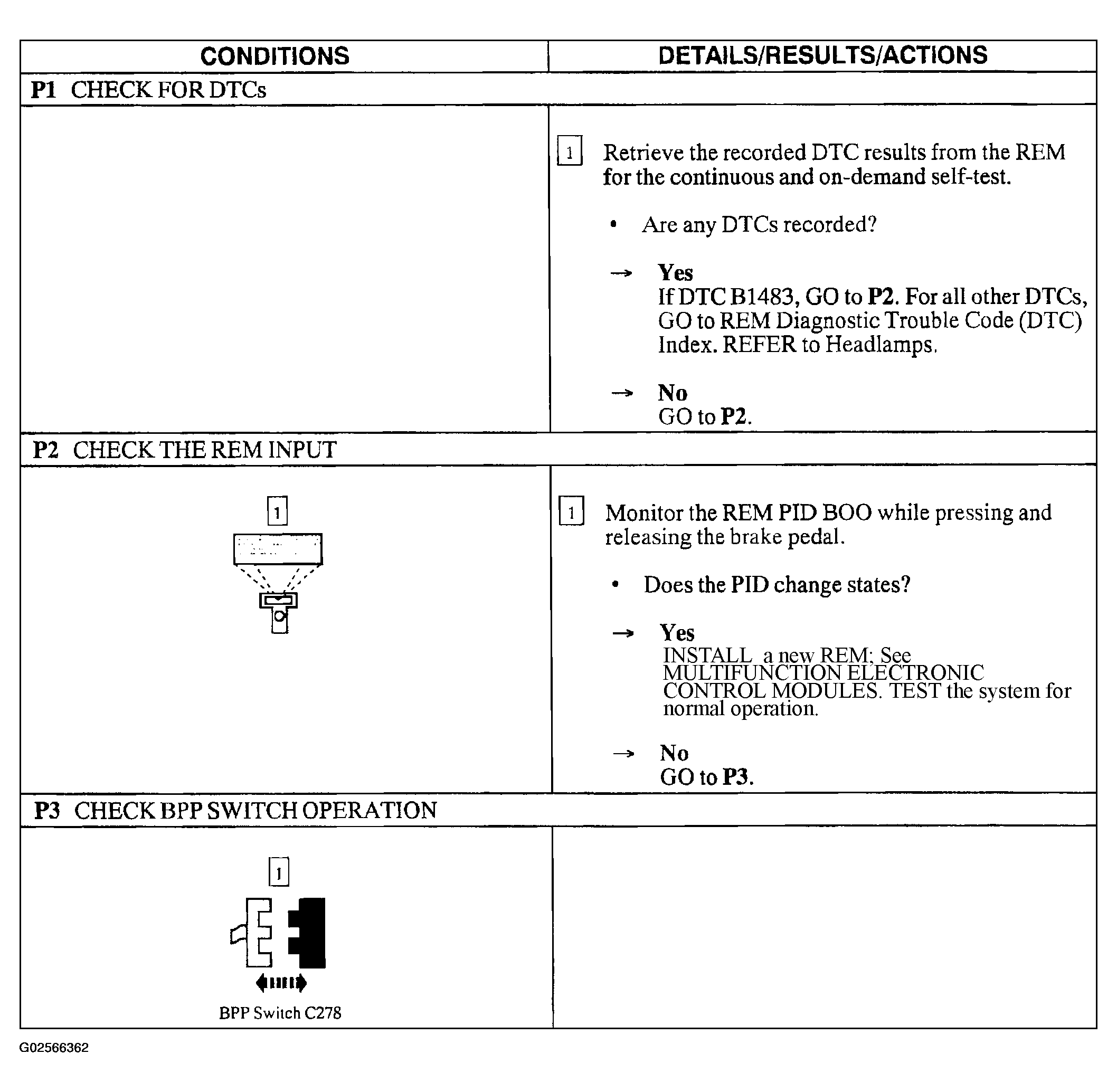

Fig 1: Pinpoint Test P: The Stoplamps Are Inoperative (Steps P1-P3)

Courtesy of FORD MOTOR CO.

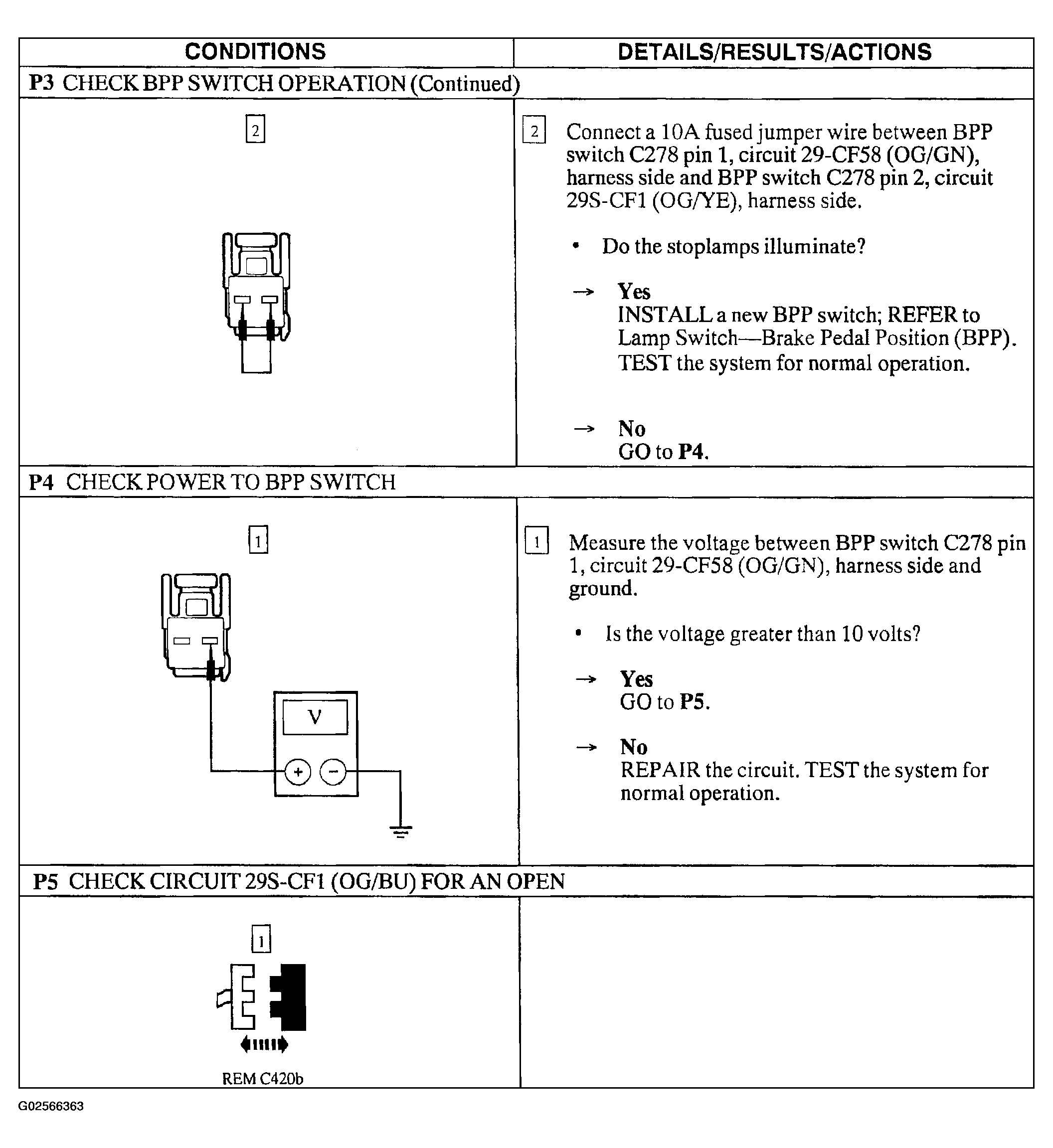

Fig 2: Pinpoint Test P: The Stoplamps Are Inoperative (Steps P3 Cont. -P5)

Courtesy of FORD MOTOR CO.

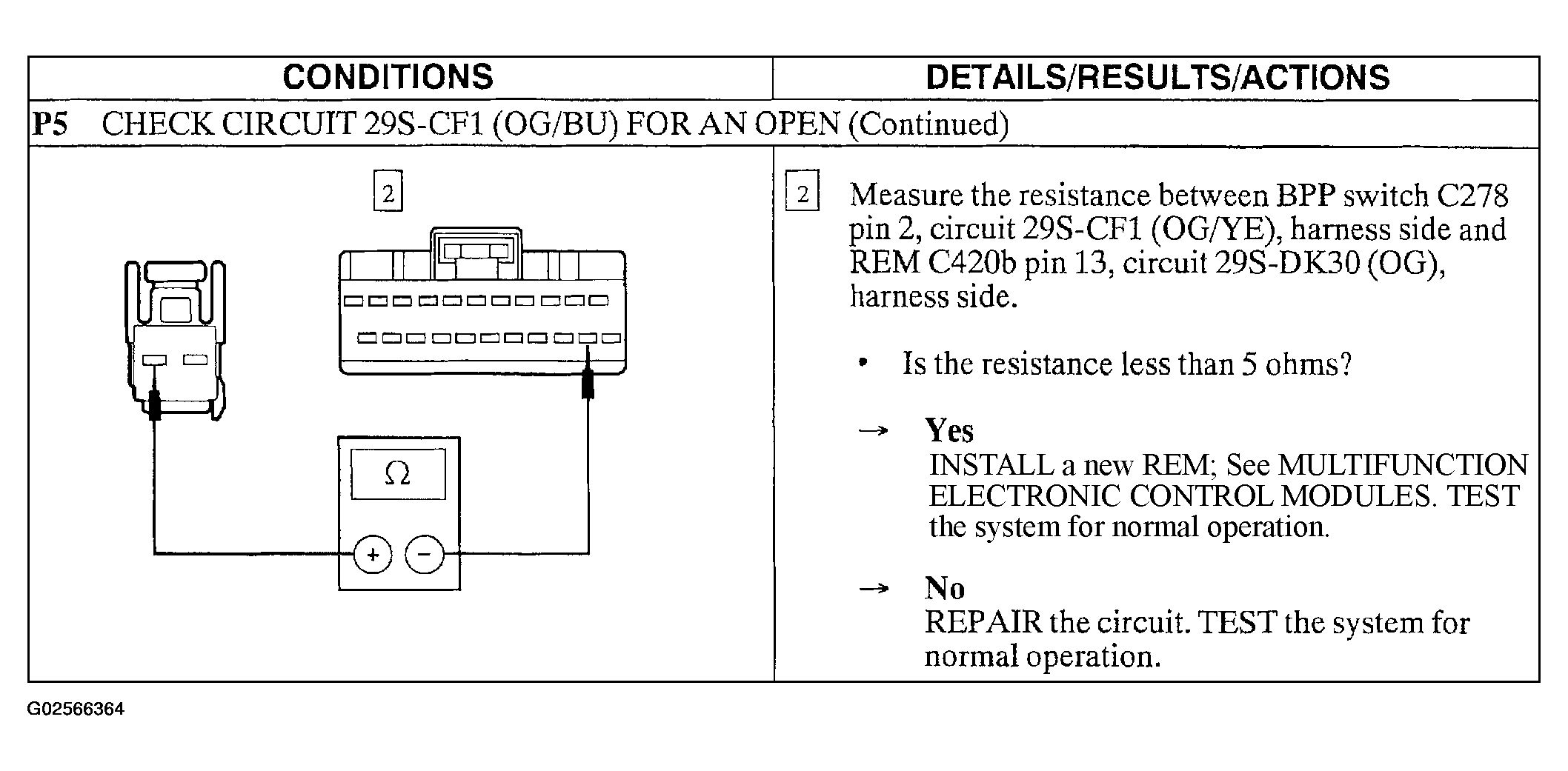

Fig 3: Pinpoint Test P: The Stoplamps Are Inoperative (Step 5 Cont.)

Courtesy of FORD MOTOR CO.
