Pinpoint Test AW: The Reversing Lamps Are On Continuously

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

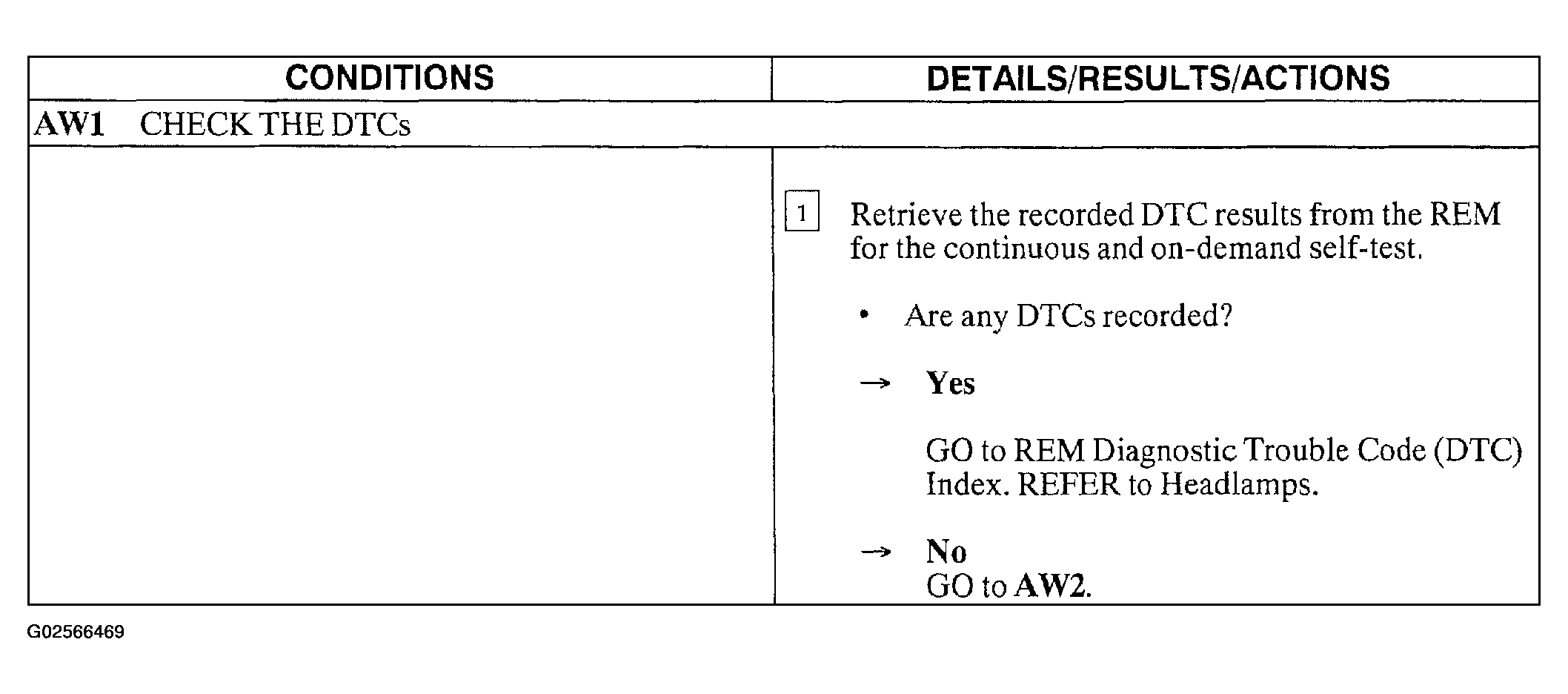

Fig 1: Pinpoint Test AW: The Reversing Lamps Are On Continuously (Step AW1)

Courtesy of FORD MOTOR CO.

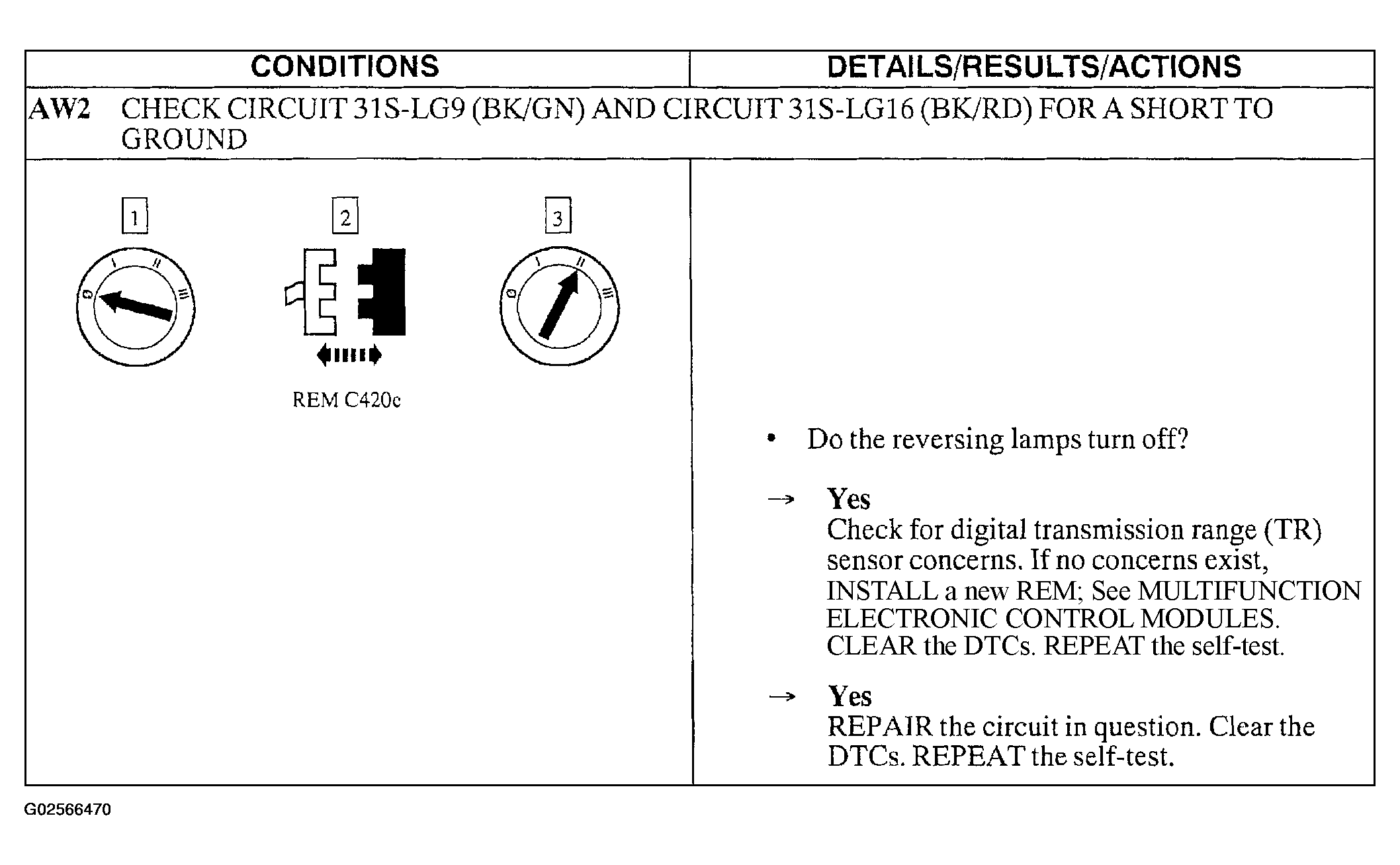

Fig 2: Pinpoint Test AW: The Reversing Lamps Are On Continuously (Step AW2)

Courtesy of FORD MOTOR CO.
