Pinpoint Test AT: The Reversing Lamps Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

Fig 1: Pinpoint Test AT: The Reversing Lamps Are Inoperative (Step AT1)

Courtesy of FORD MOTOR CO.

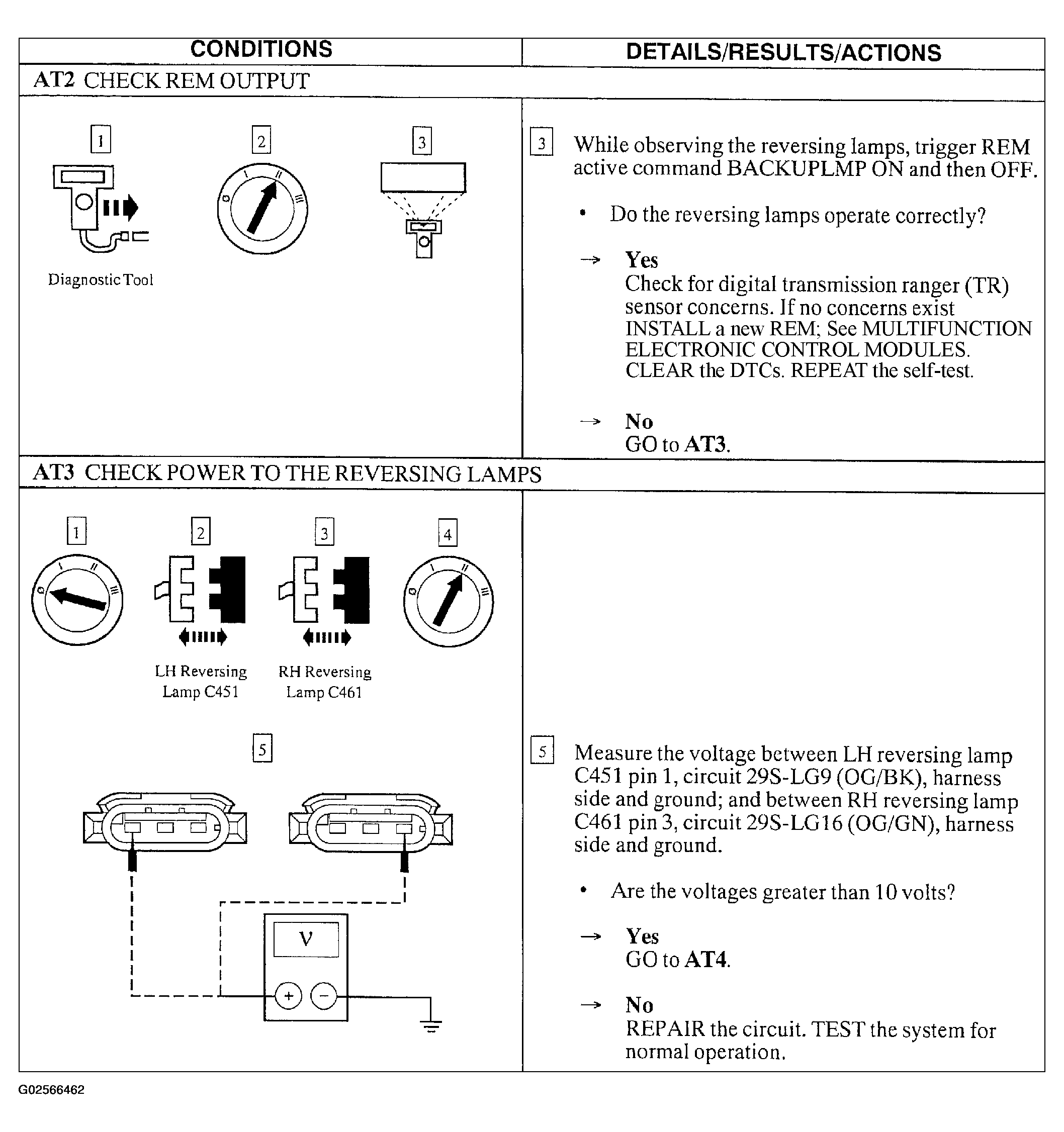

Fig 2: Pinpoint Test AT: The Reversing Lamps Are Inoperative (Steps AT2-AT3)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test AT: The Reversing Lamps Are Inoperative (Steps AT4-AT5)

Courtesy of FORD MOTOR CO.
