Pinpoint Test AP: One Or More Parking, Rear, Or License Lamp Is On Continuously - RR Parking Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

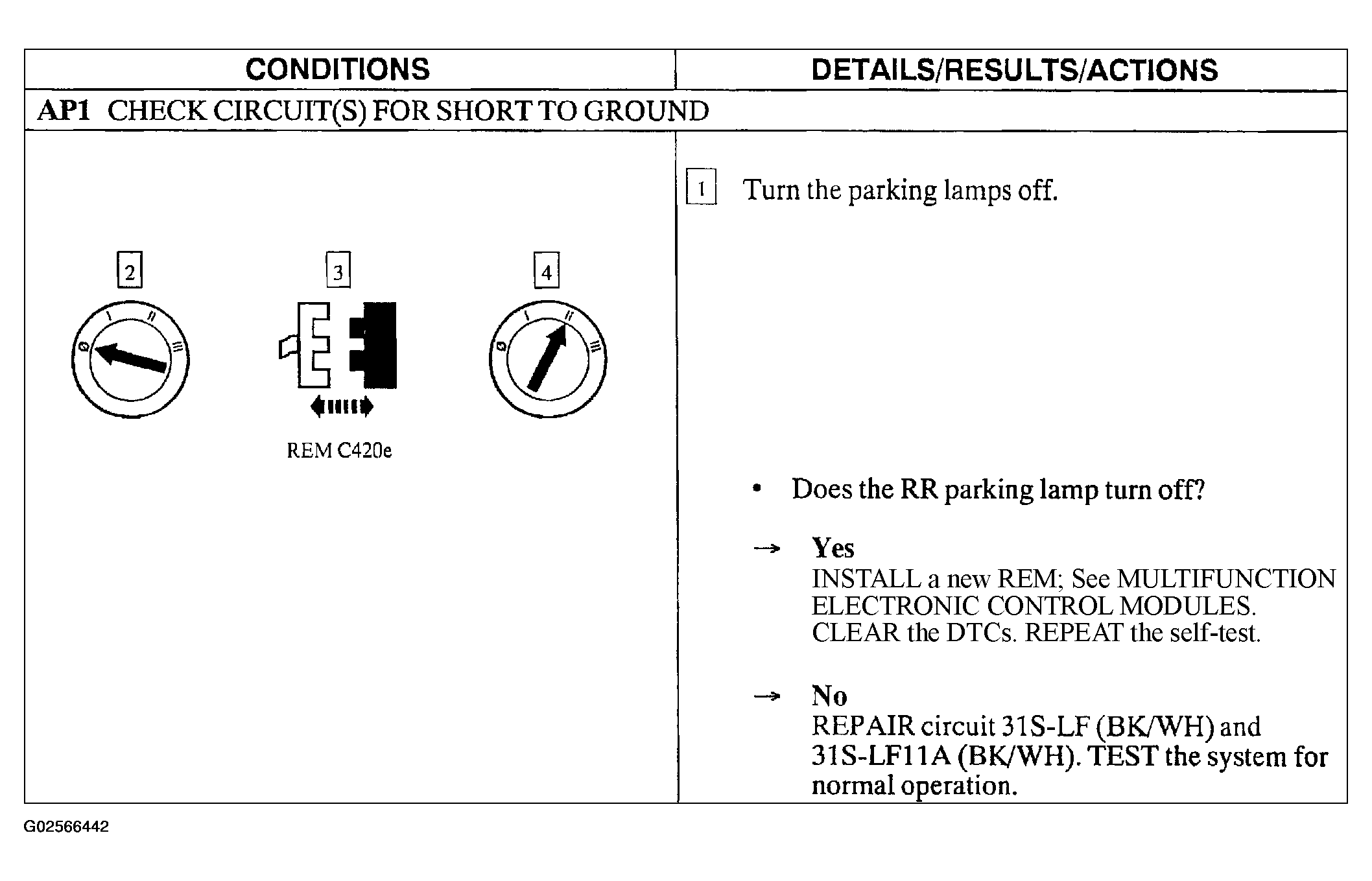

Fig 1: Pinpoint Test AP: One Or More Parking, Rear, Or License Lamp Is On Continuously - RR Parking Lamps (Step AP1)
G02566442Courtesy of FORD MOTOR CO.
