Pinpoint Test AO: One Or More Parking, Rear, Or License Lamp Is On Continuously - LR Parking Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

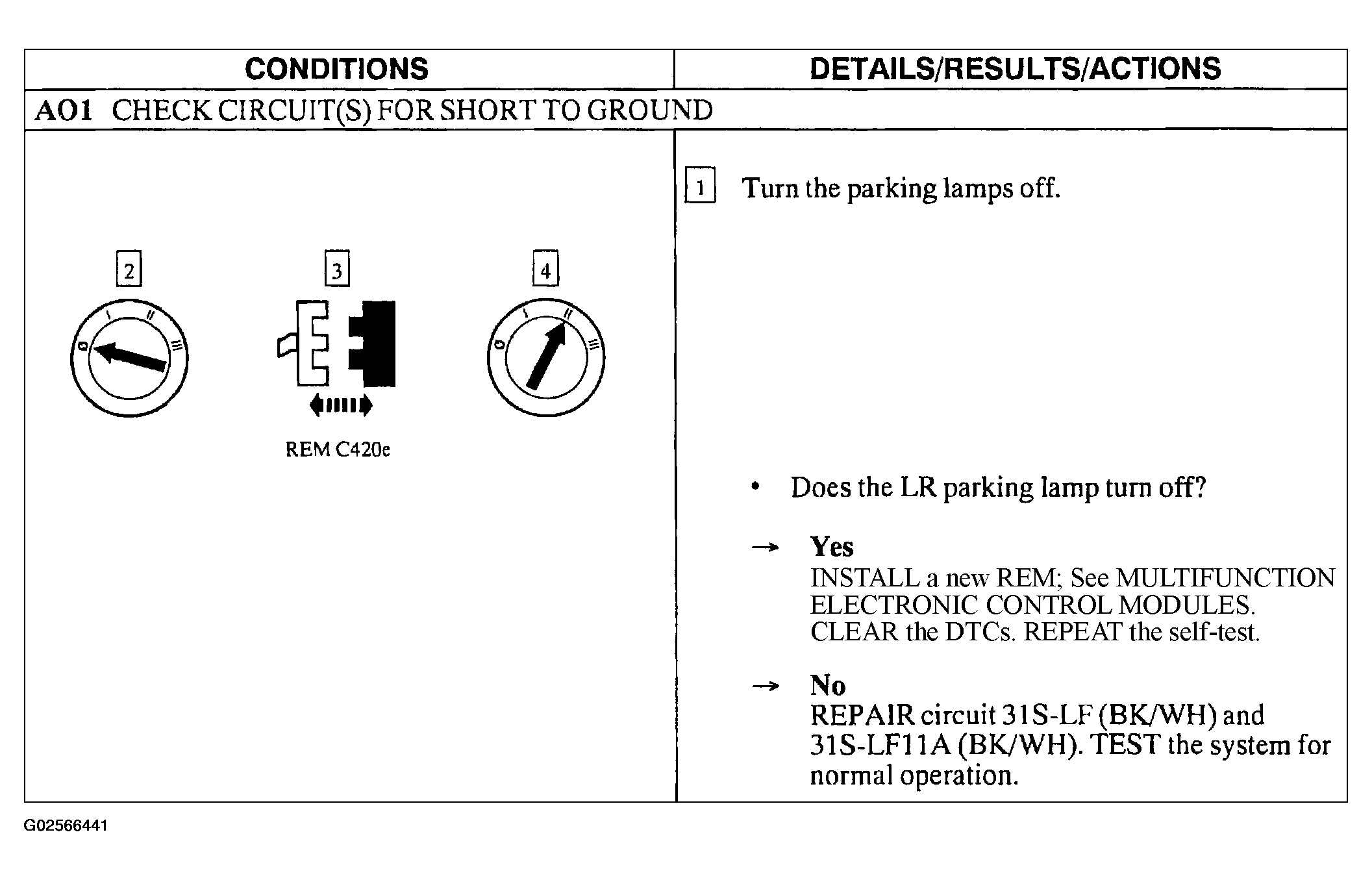

Fig 1: Pinpoint Test AO: One Or More Parking, Rear, Or License Lamp Is On Continuously - LR Parking Lamps (Step AO1)
G02566441Courtesy of FORD MOTOR CO.
