Pinpoint Test AJ: The Exterior Lamp(s) Are Inoperative - LF Or RF Parking & Turn Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

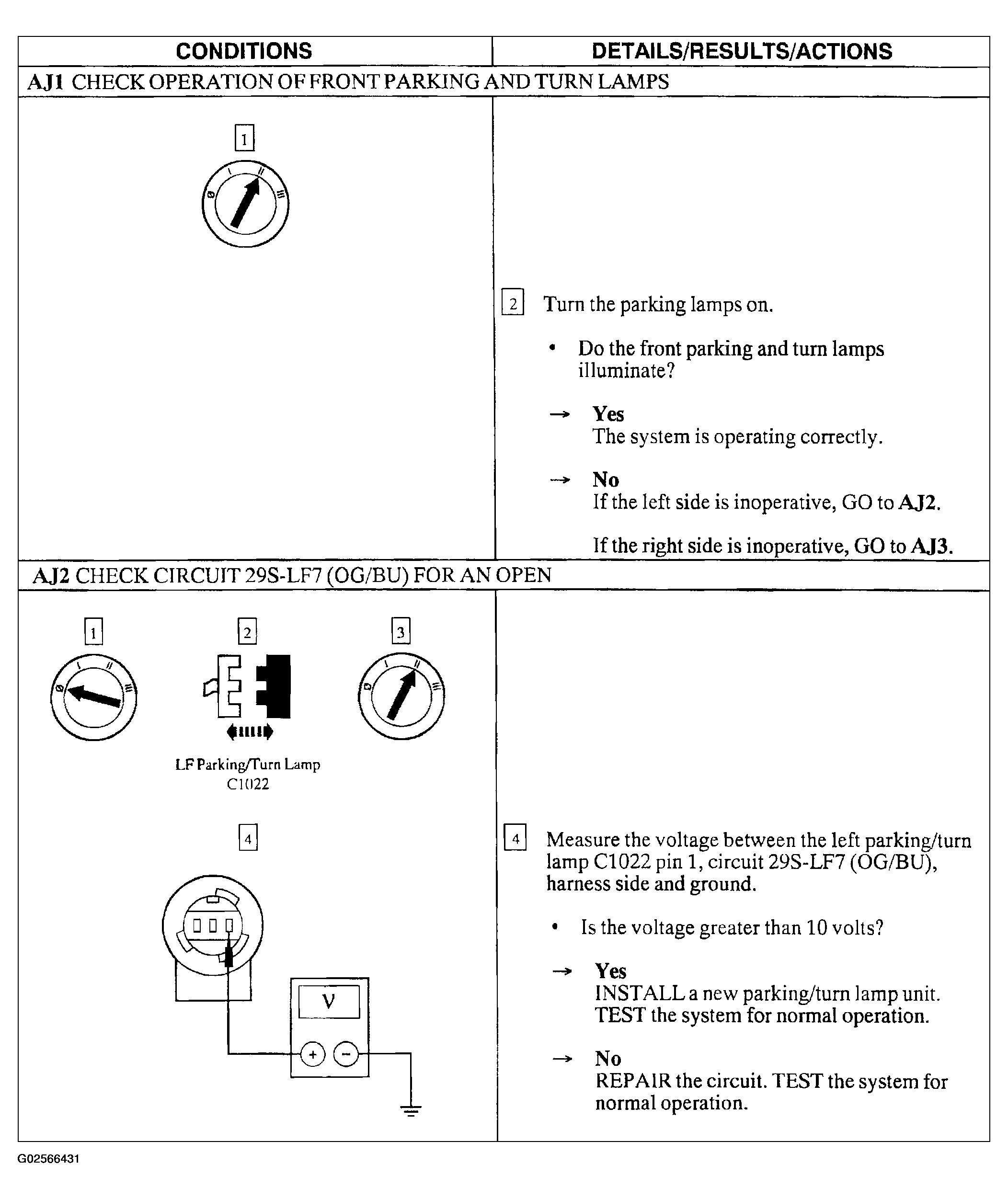

Fig 1: Pinpoint Test AJ: The Exterior Lamp(s) Are Inoperative - LF Or RF Parking & Turn Lamps (Steps AJ1-AJ2)

Courtesy of FORD MOTOR CO.

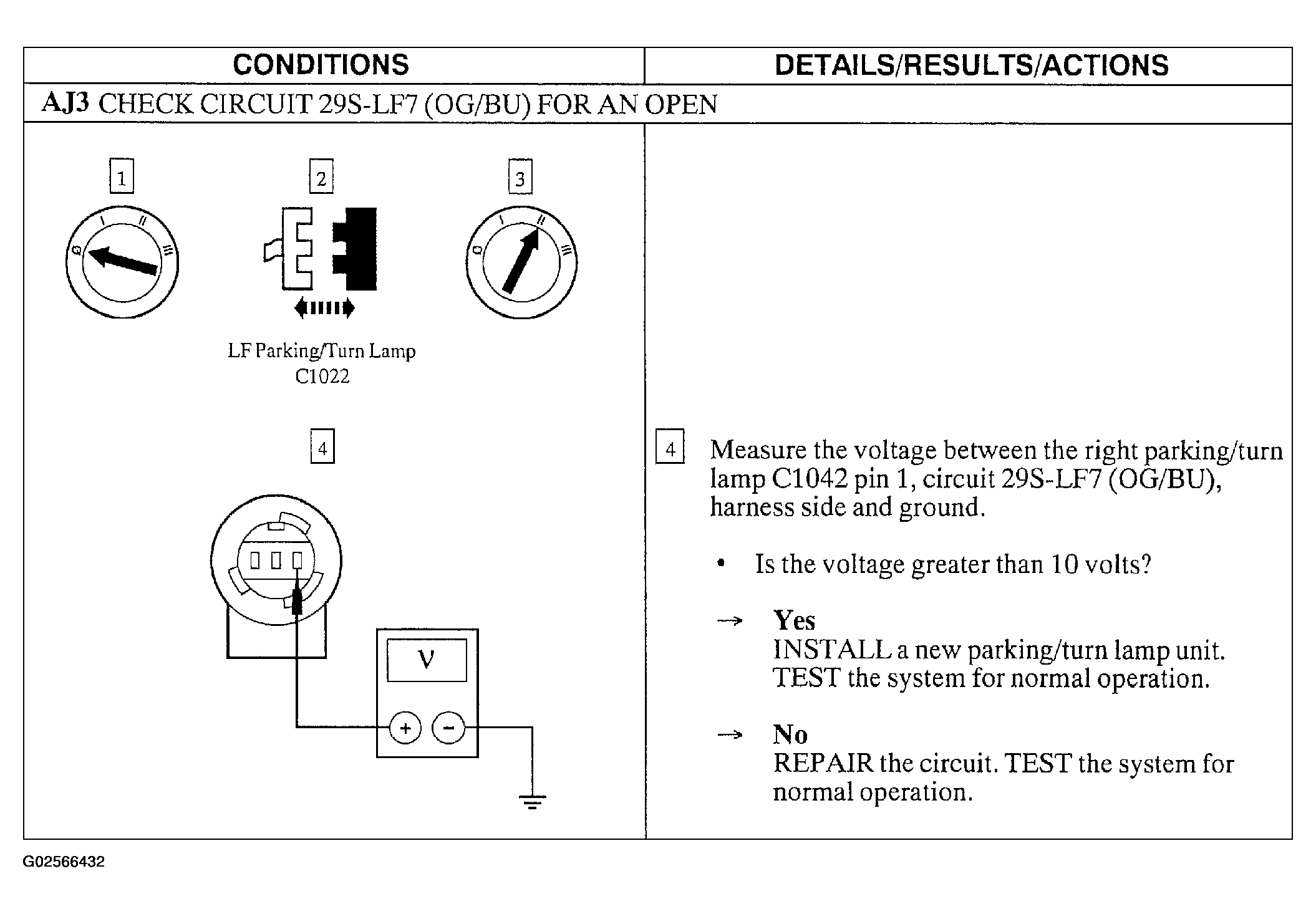

Fig 2: Pinpoint Test AJ: The Exterior Lamp(s) Are Inoperative - LF Or RF Parking & Turn Lamps (Step AJ3)

Courtesy of FORD MOTOR CO.
