Pinpoint Test AI: One Or More Parking, Rear Or License Lamp Is Inoperative - License Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

Fig 1: Pinpoint Test AI: One Or More Parking, Rear Or License Lamp Is Inoperative - License Lamps (Steps AI1)

Courtesy of FORD MOTOR CO.

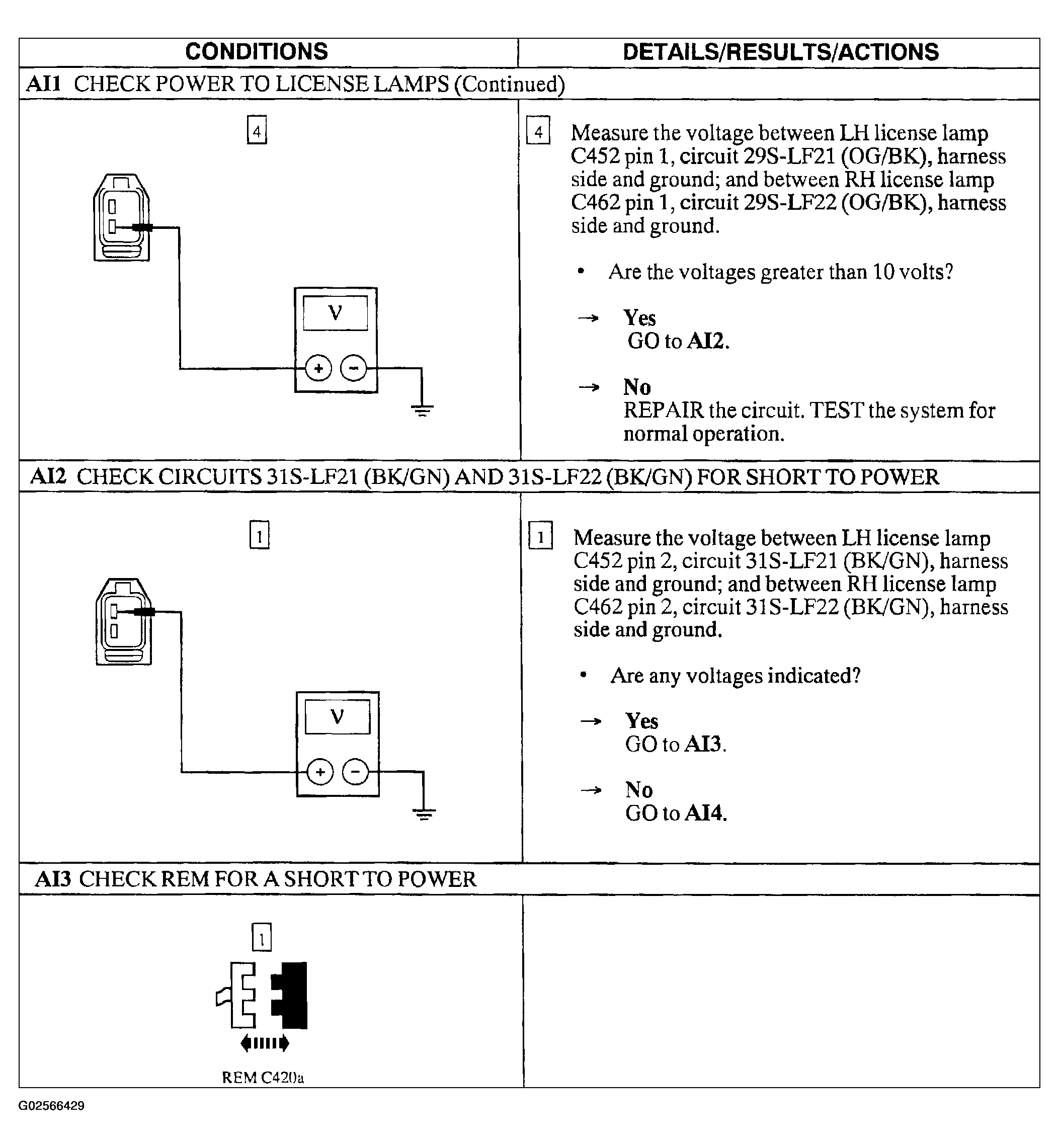

Fig 2: Pinpoint Test AI: One Or More Parking, Rear Or License Lamp Is Inoperative - License Lamps (Steps AI1 Cont. -AI3)

Courtesy of FORD MOTOR CO.

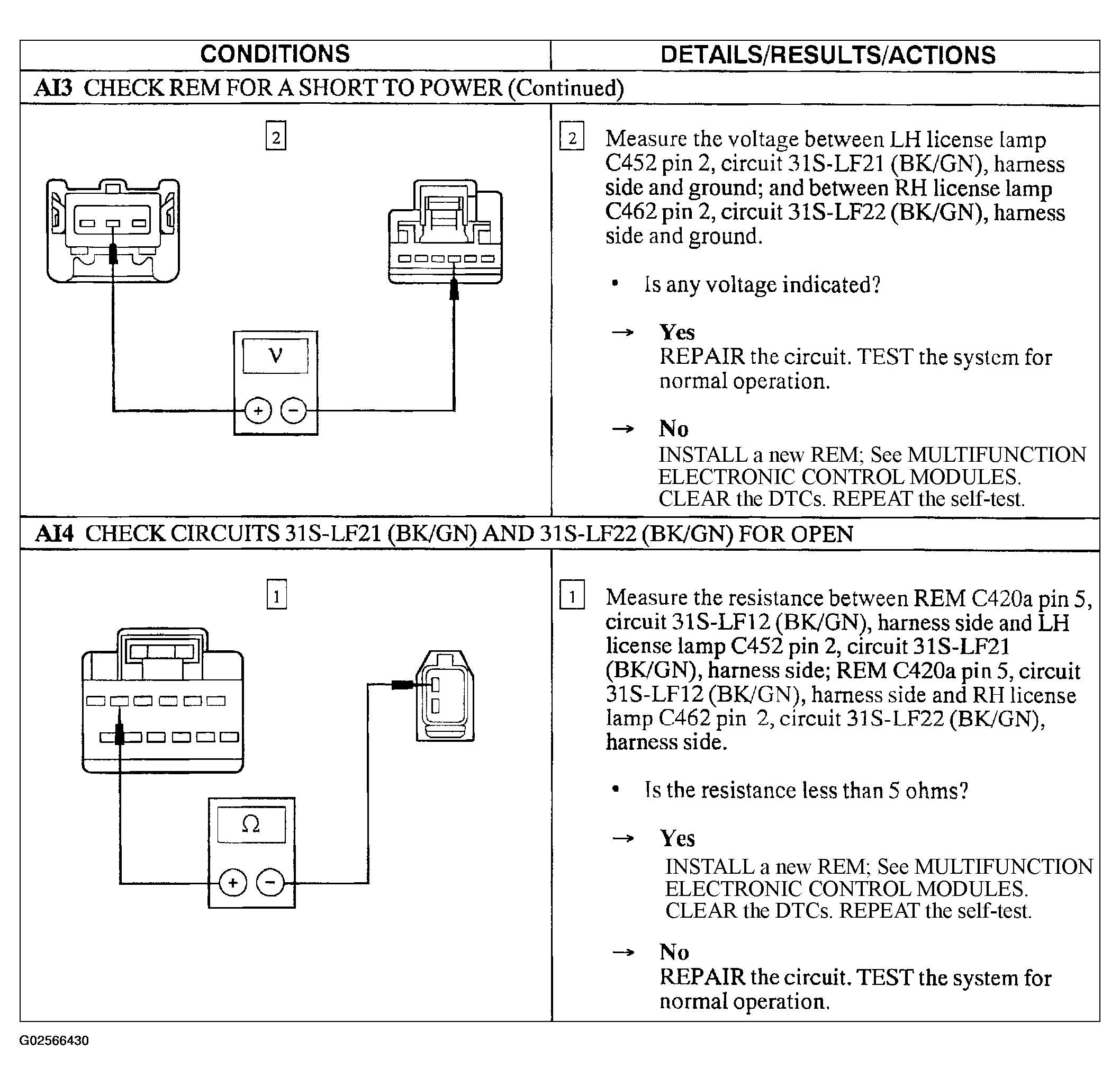

Fig 3: Pinpoint Test AI: One Or More Parking, Rear Or License Lamp Is Inoperative - License Lamps (Steps AI3 Cont. -AI4)

Courtesy of FORD MOTOR CO.
