Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

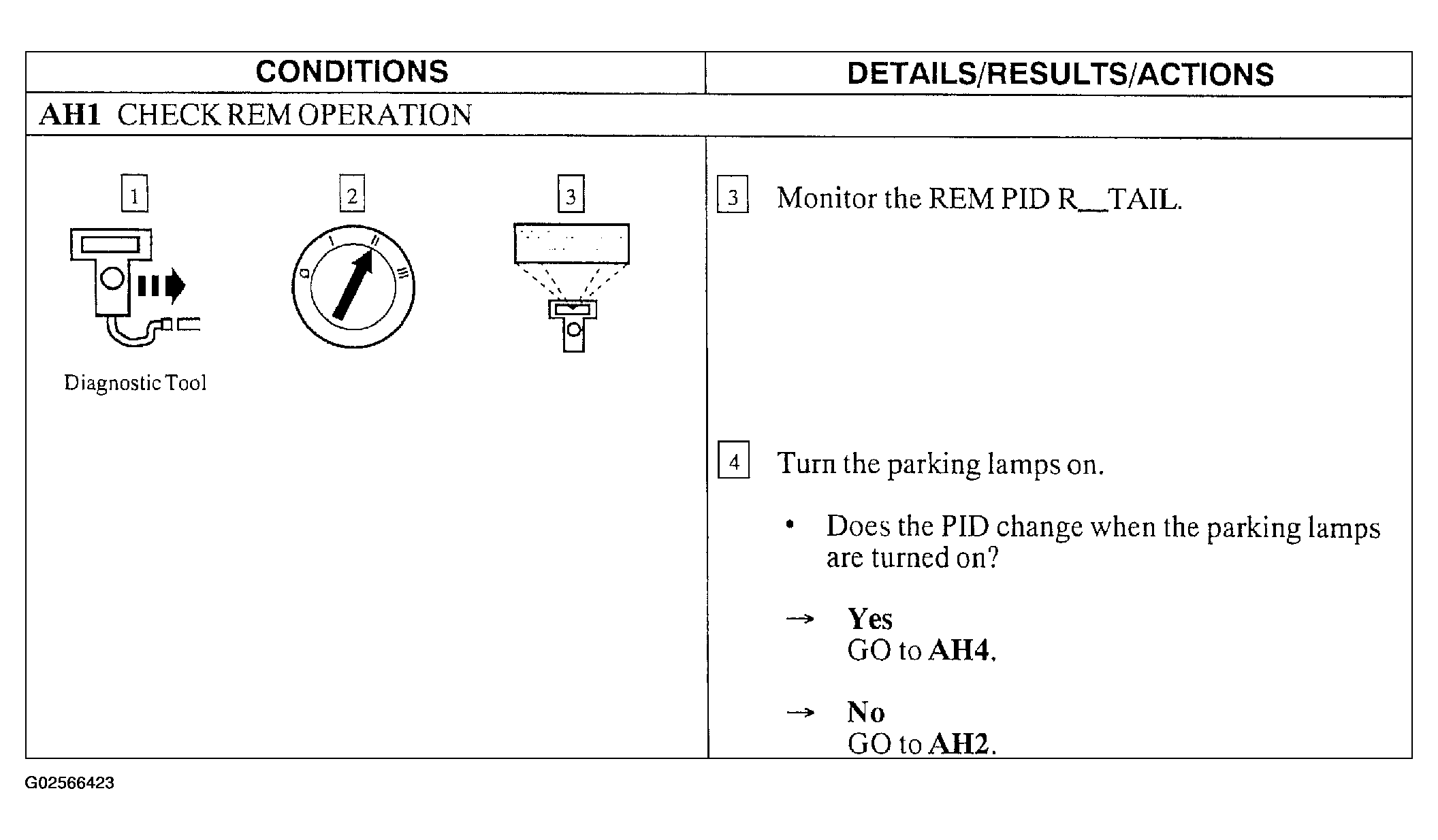

Fig 1: Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp (Step AH1)

Courtesy of FORD MOTOR CO.

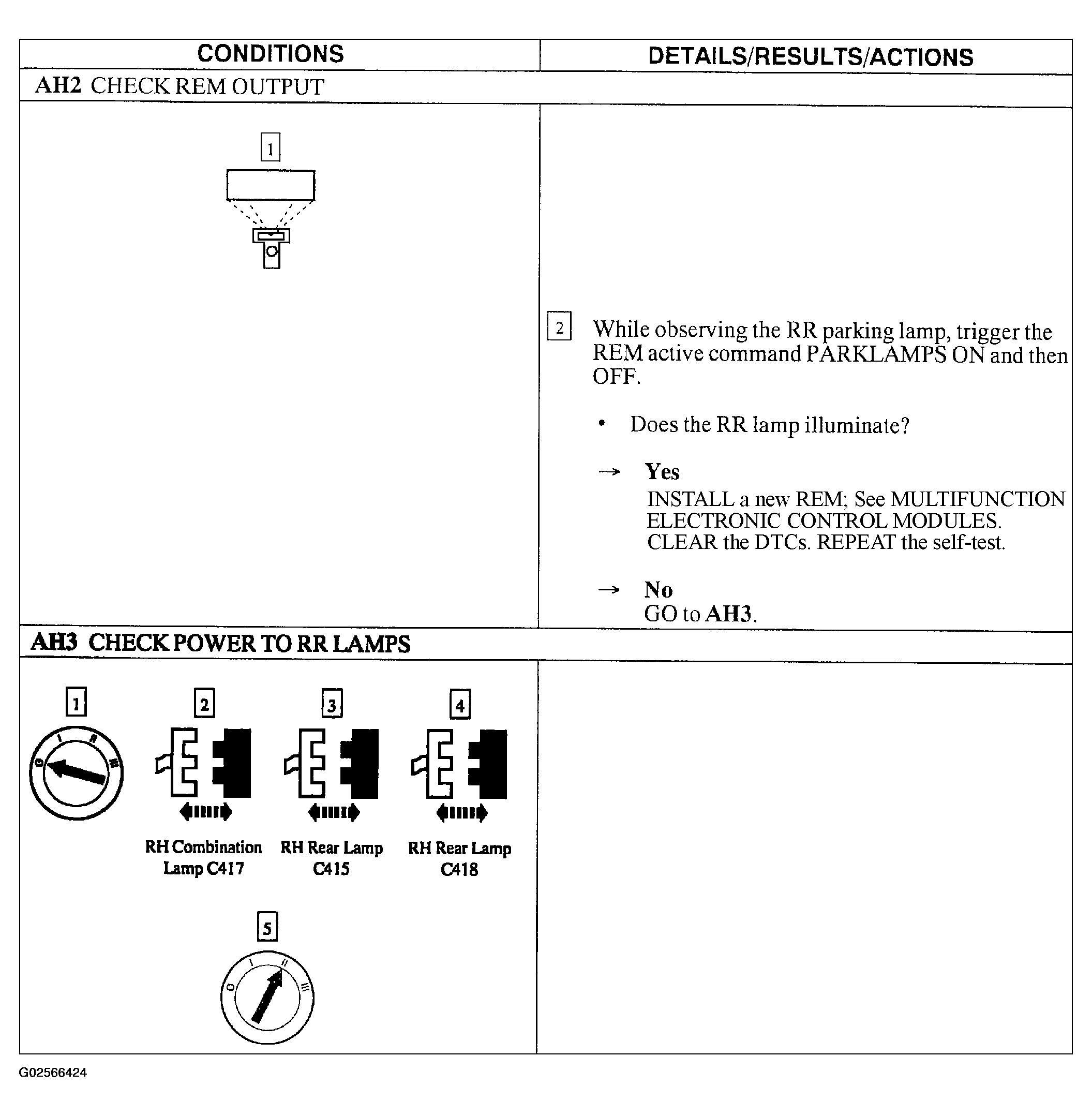

Fig 2: Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp (Steps AH2-AH3)

Courtesy of FORD MOTOR CO.

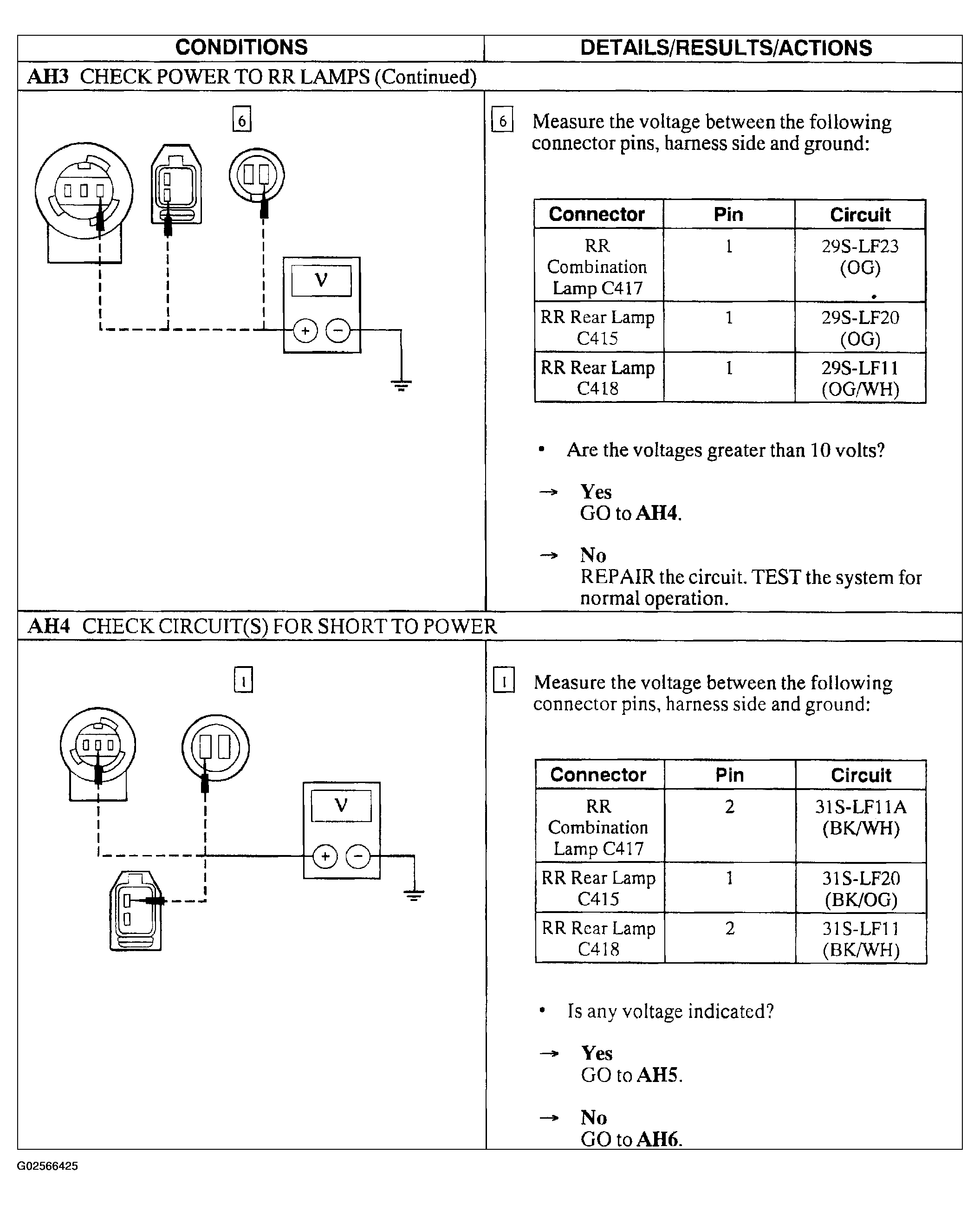

Fig 3: Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp (Steps AH3 Cont. -AH4)

Courtesy of FORD MOTOR CO.

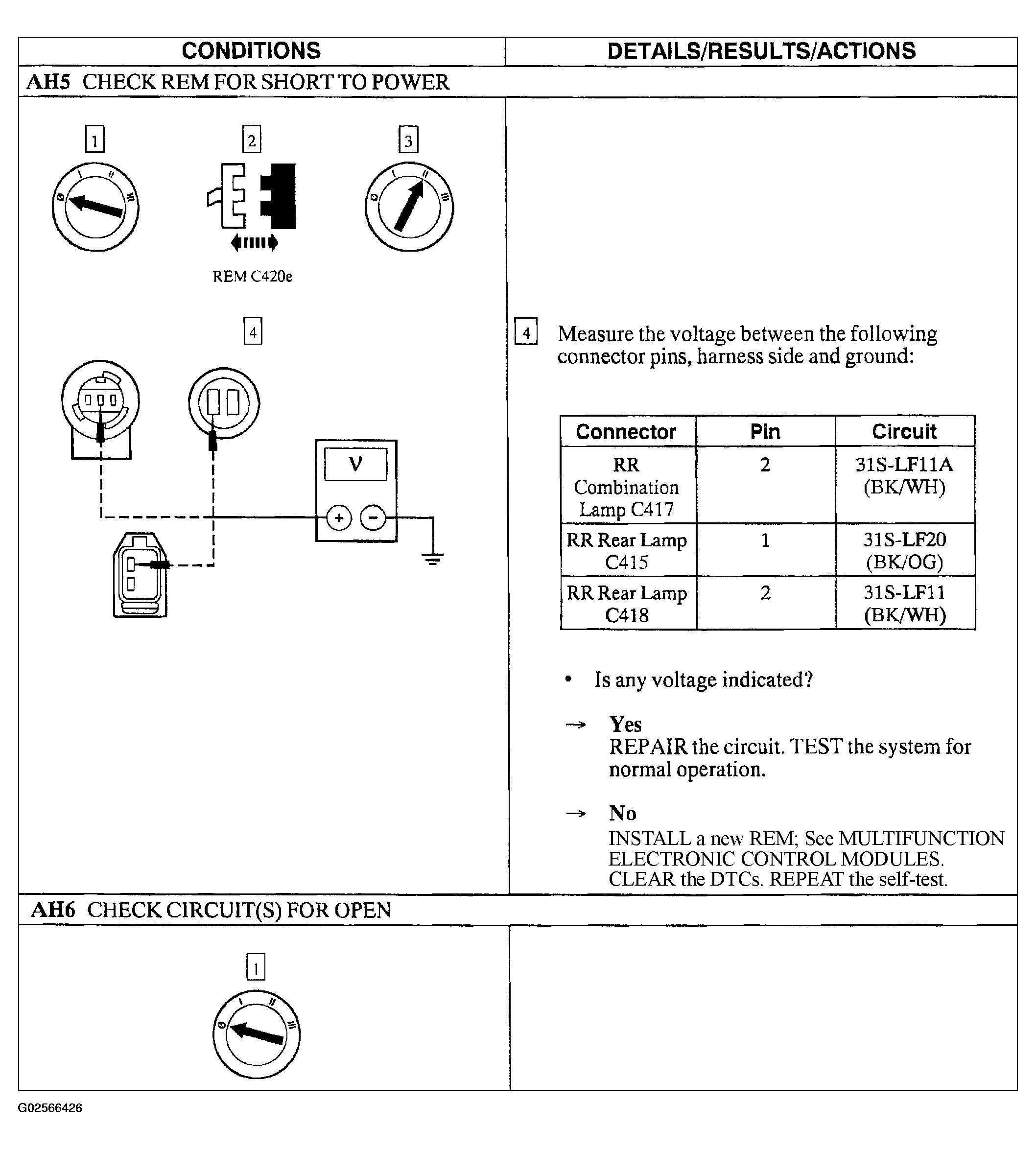

Fig 4: Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp (Steps AH5-AH6)

Courtesy of FORD MOTOR CO.

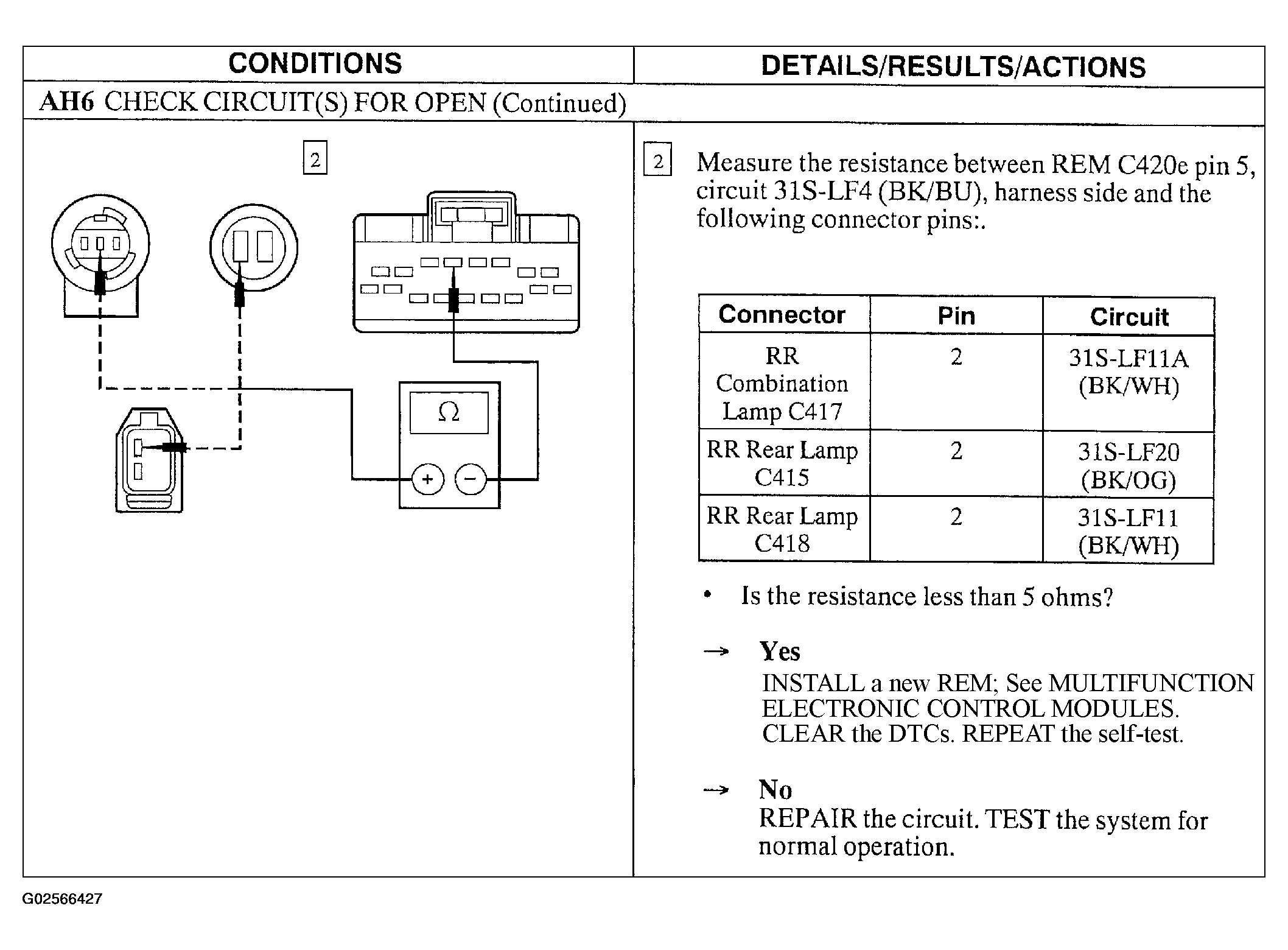

Fig 5: Pinpoint Test AH: One Or More Parking, Rear Or License Lamp Is Inoperative - Right Rear Lamp (Step AH6 Cont.)

Courtesy of FORD MOTOR CO.
