Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

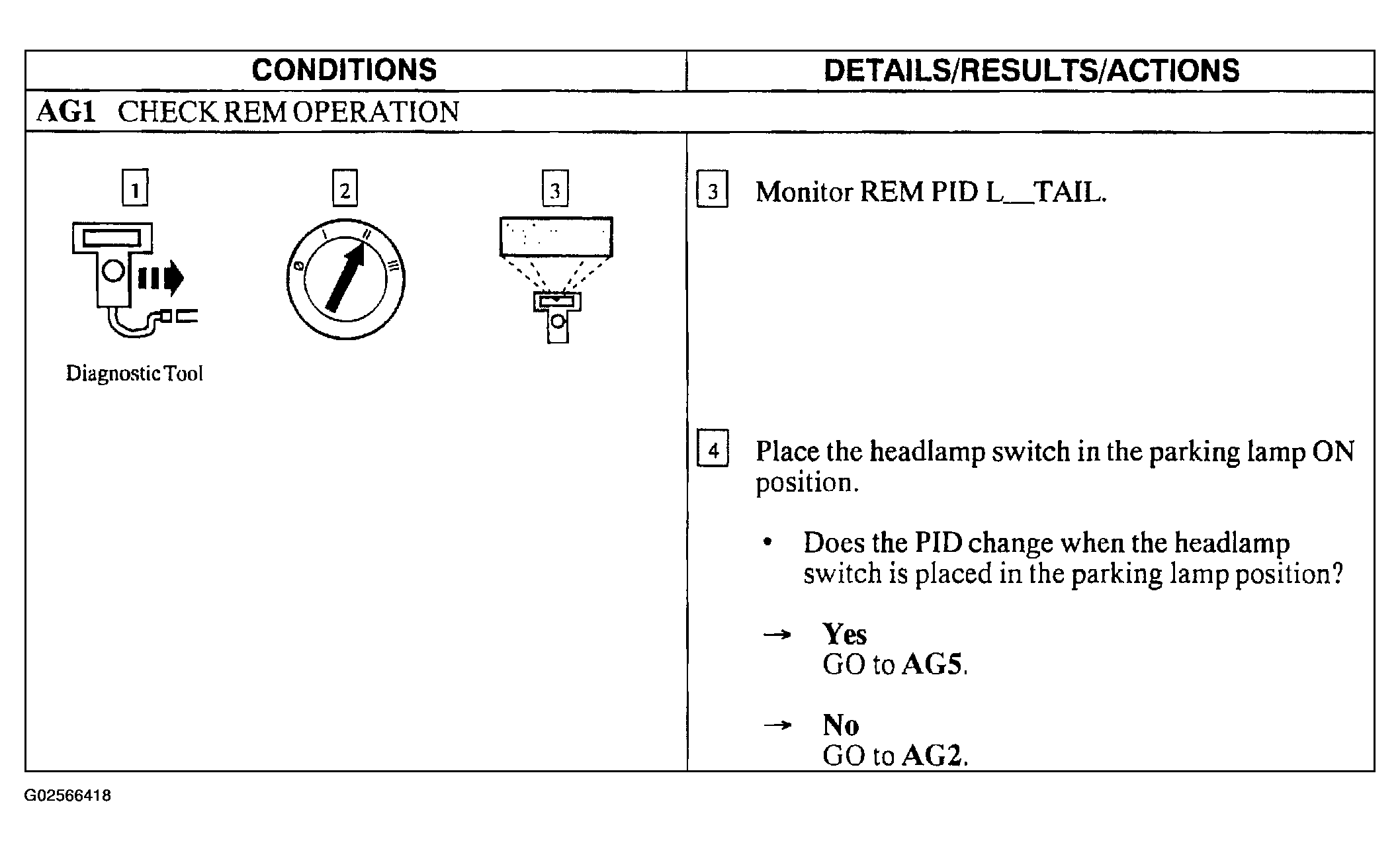

Fig 1: Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps (Step AG1)

Courtesy of FORD MOTOR CO.

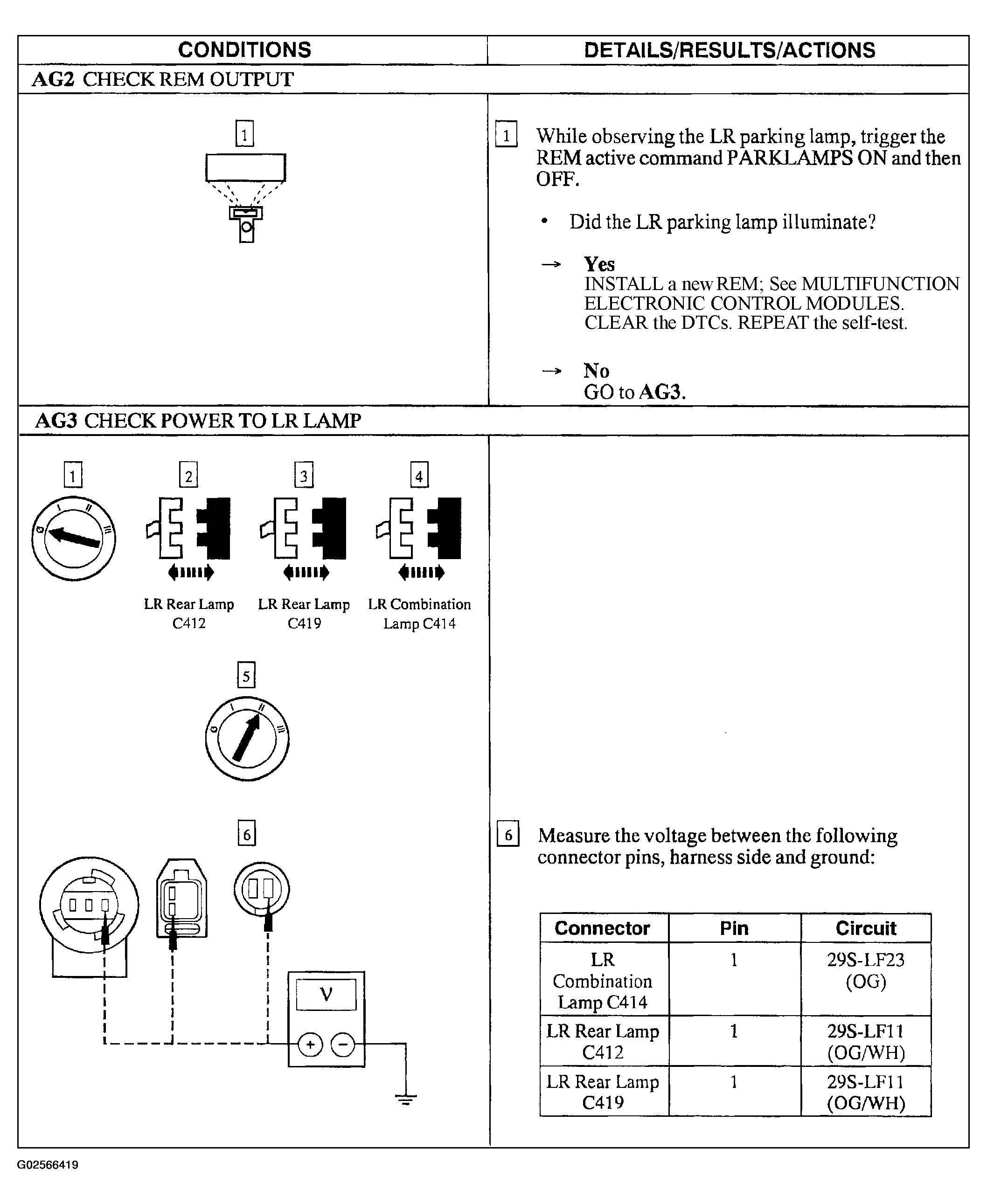

Fig 2: Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps (Steps AG2-AG3)

Courtesy of FORD MOTOR CO.

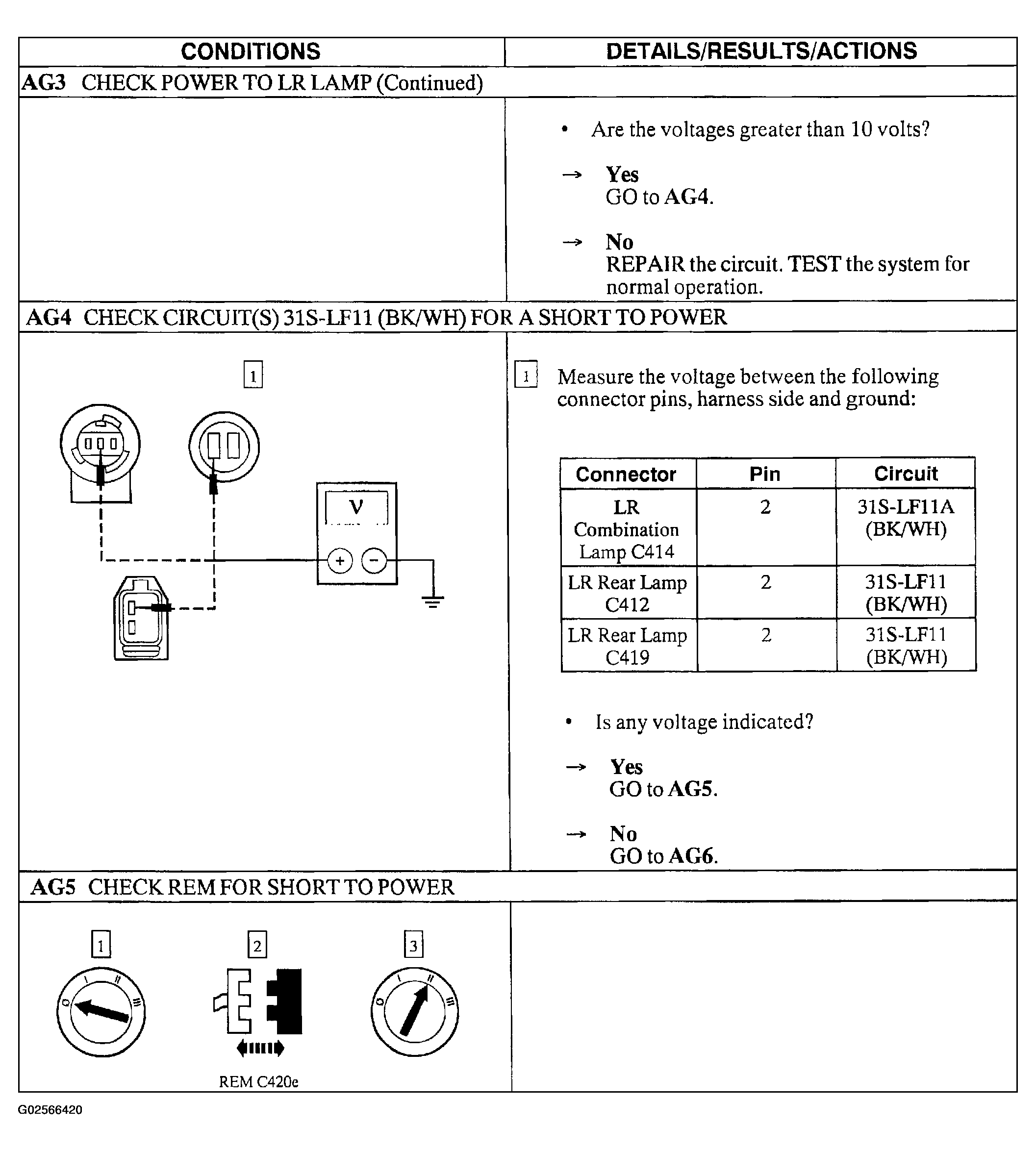

Fig 3: Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps (Steps AG3 Cont. -AG5)

Courtesy of FORD MOTOR CO.

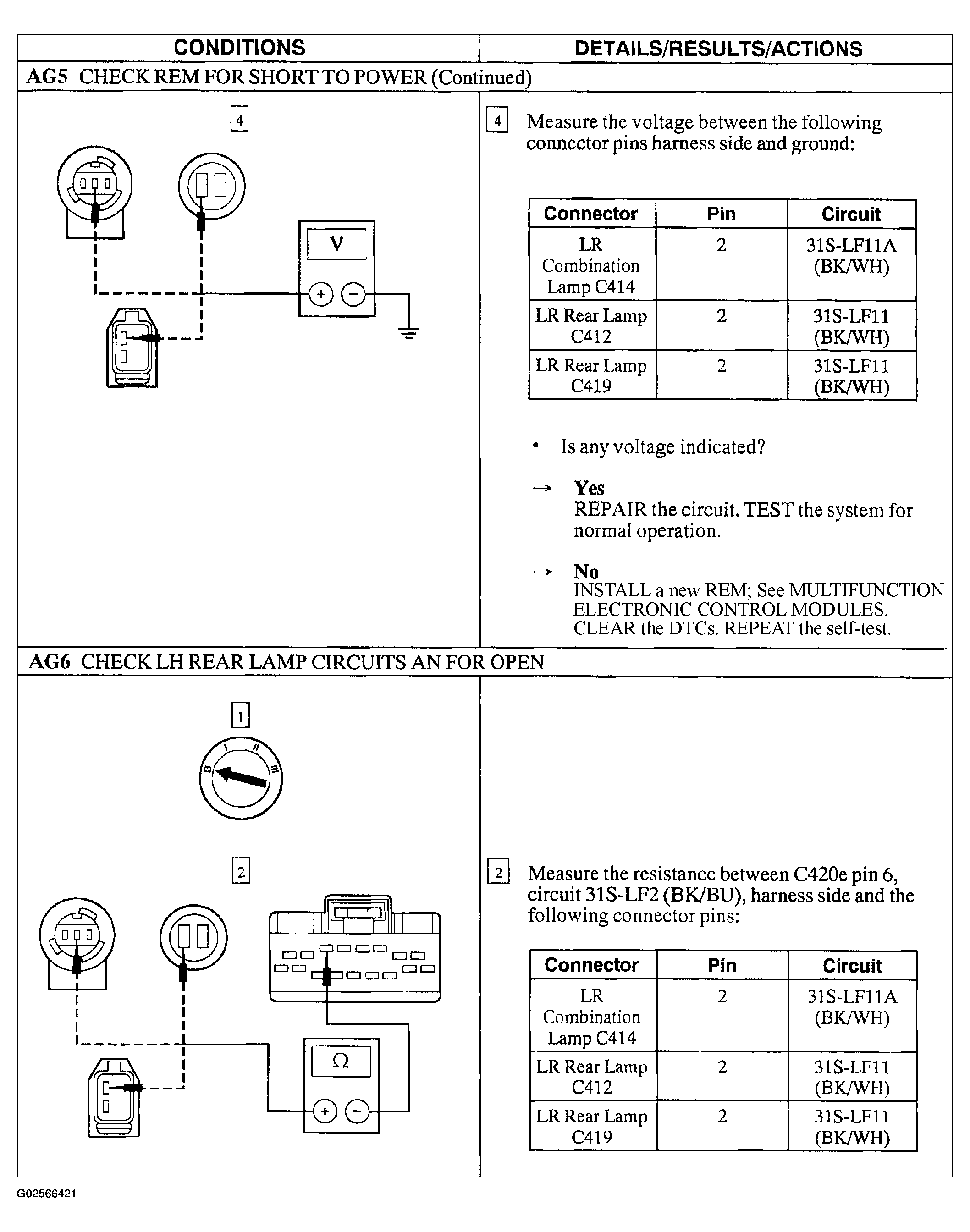

Fig 4: Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps (Steps AG5 Cont. -AG6)

Courtesy of FORD MOTOR CO.

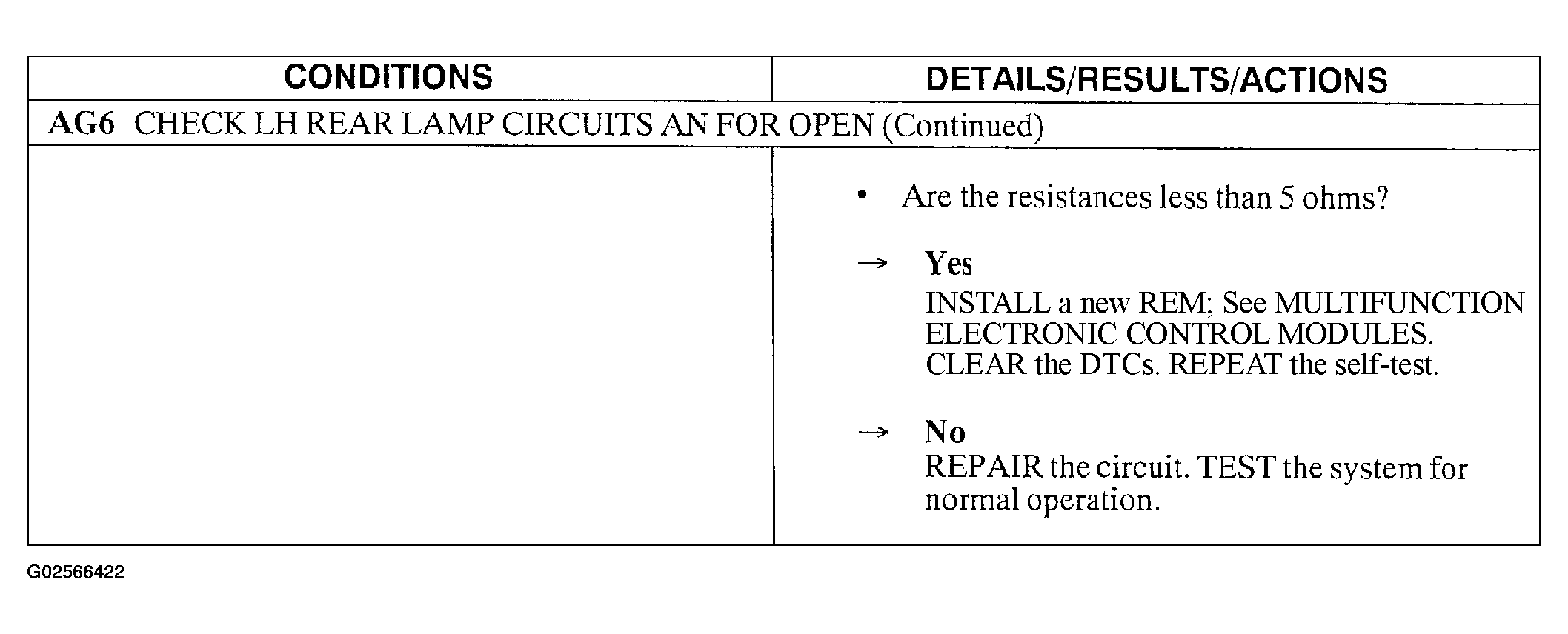

Fig 5: Pinpoint Test AG: One Or More Parking, Rear Or License Lamps Are Inoperative - Left Rear Lamps (Step AG6 Cont.)

Courtesy of FORD MOTOR CO.
