Pinpoint Test M: The Power Supply Relay Is Inoperative - SSP4

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION and SSP RELAY INDEX for complete details of SSP4 powered features.

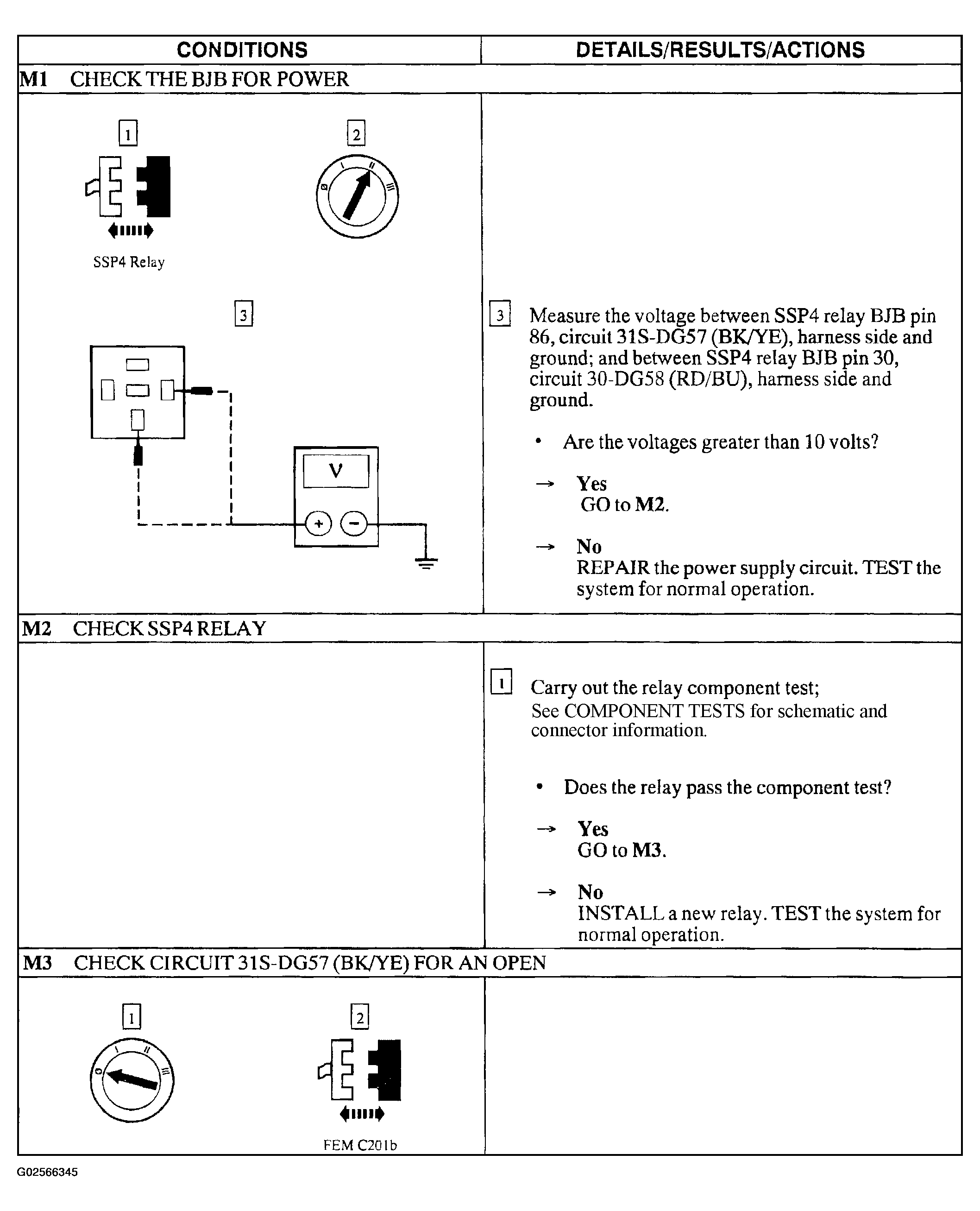

Fig 1: Pinpoint Test M: The Power Supply Relay Is Inoperative - SSP4 (Steps M1-M3)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test M: The Power Supply Relay Is Inoperative - SSP4 (Step M3 Cont.)

Courtesy of FORD MOTOR CO.
