Pinpoint Test L: The Power Supply Relay Is Inoperative - SSP3

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION and SSP RELAY INDEX for complete details of SSP3 powered features.

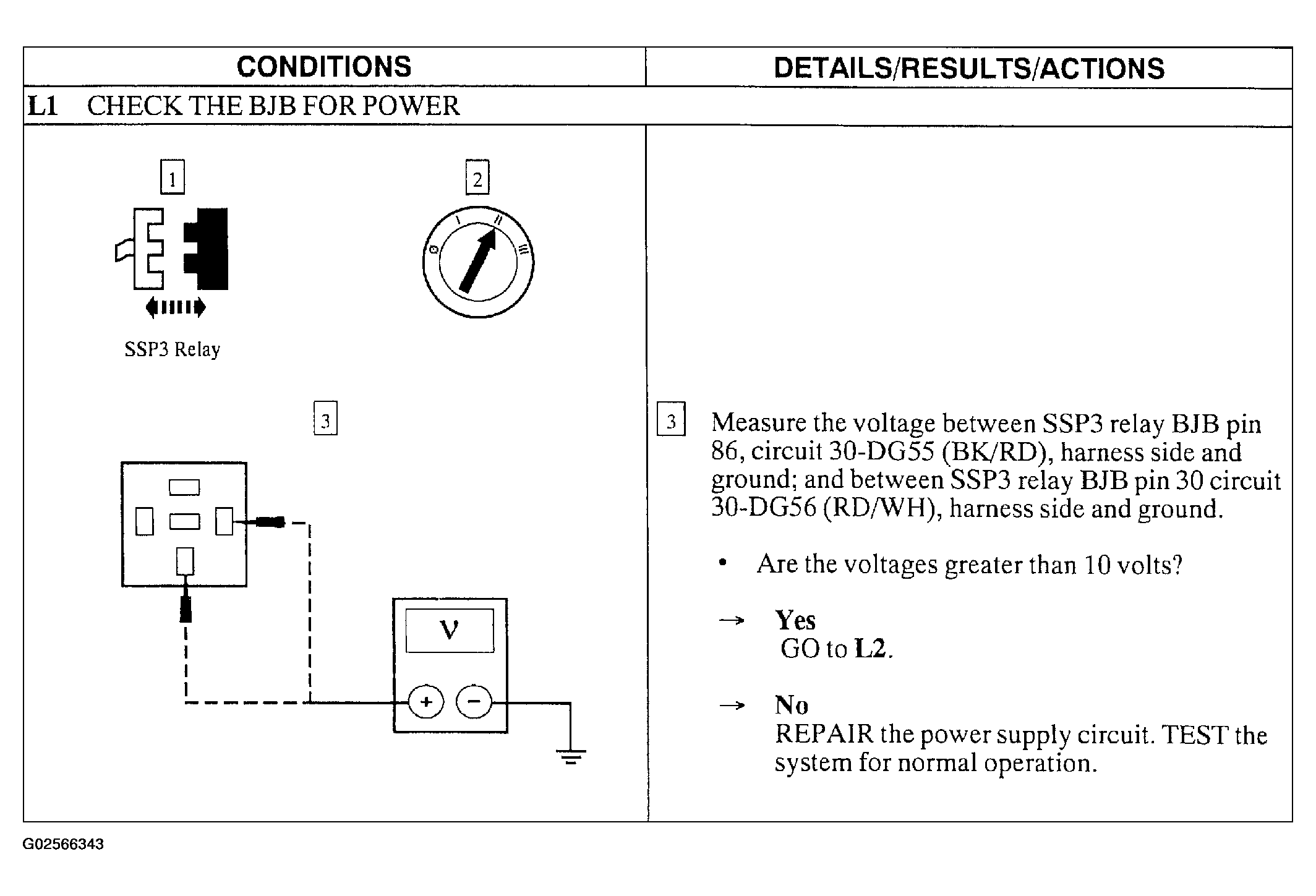

Fig 1: Pinpoint Test L: The Power Supply Relay Is Inoperative - SSP3 (Step L1)

Courtesy of FORD MOTOR CO.

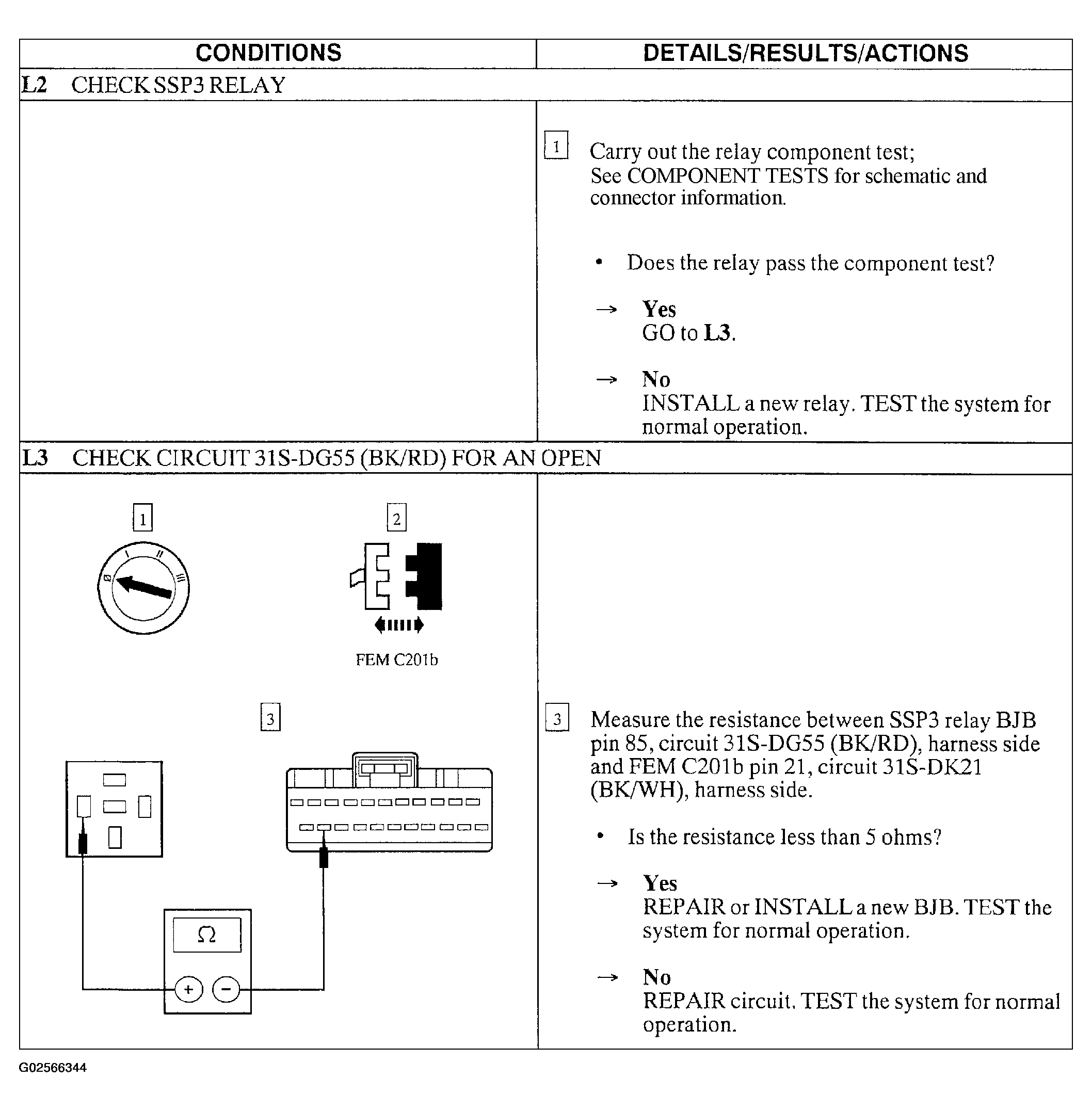

Fig 2: Pinpoint Test L: The Power Supply Relay Is Inoperative - SSP3 (Steps L2-L3)

Courtesy of FORD MOTOR CO.
