Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

NOTE: Refer to PRINCIPLES OF OPERATION and SSP RELAY INDEX for complete detail of SSP powered features.

Fig 1: Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features (Step I1)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features (Steps I1 Cont. -I2)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features (Steps I3-I4)

Courtesy of FORD MOTOR CO.

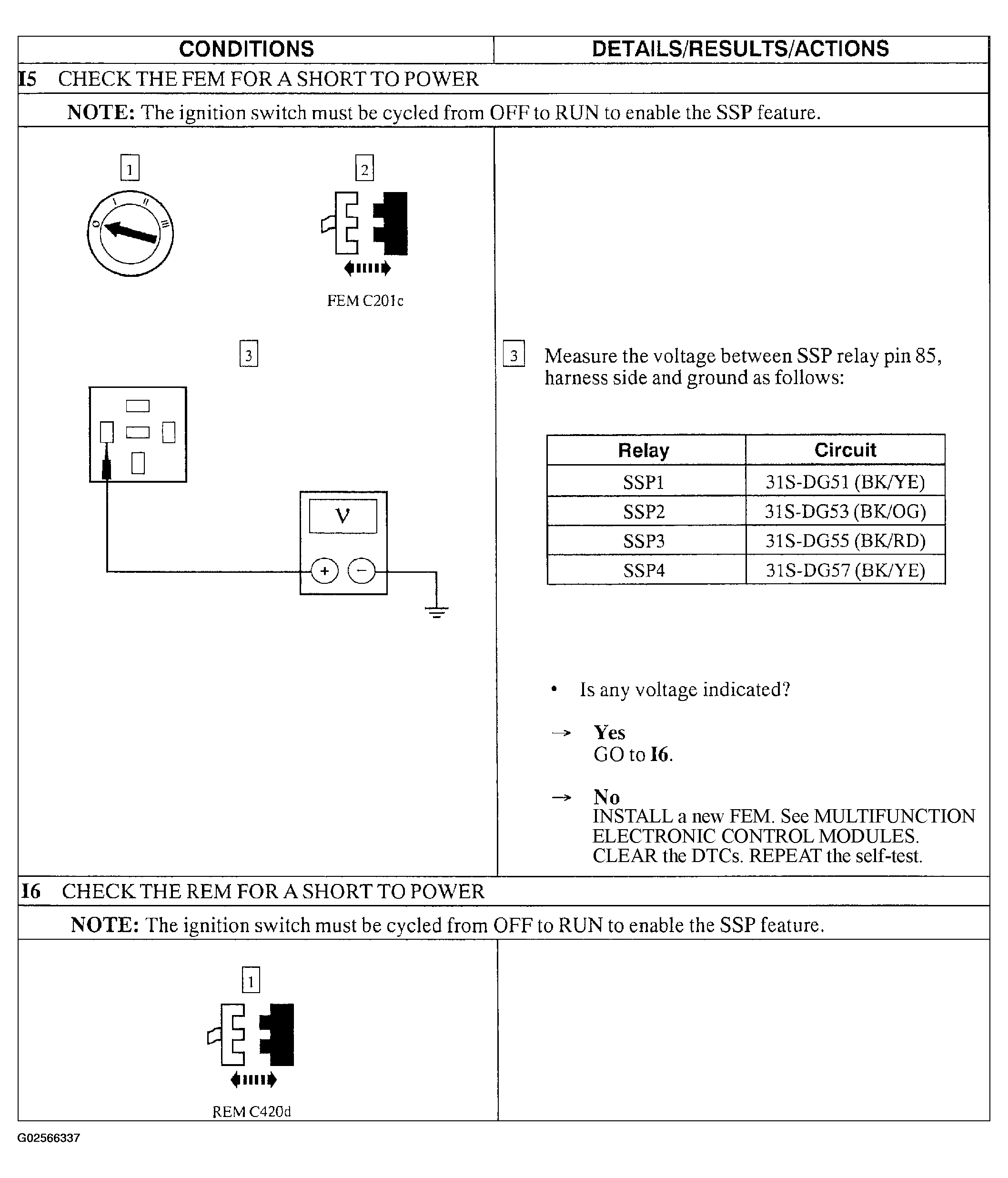

Fig 4: Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features (Steps I5-I6)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test I: The Power Supply Relay Is Inoperative - All SSP Features (Step I6 Cont.)

Courtesy of FORD MOTOR CO.
