Pinpoint Test H: The Headlamps Are On Continuously - Single Low/High Beams

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

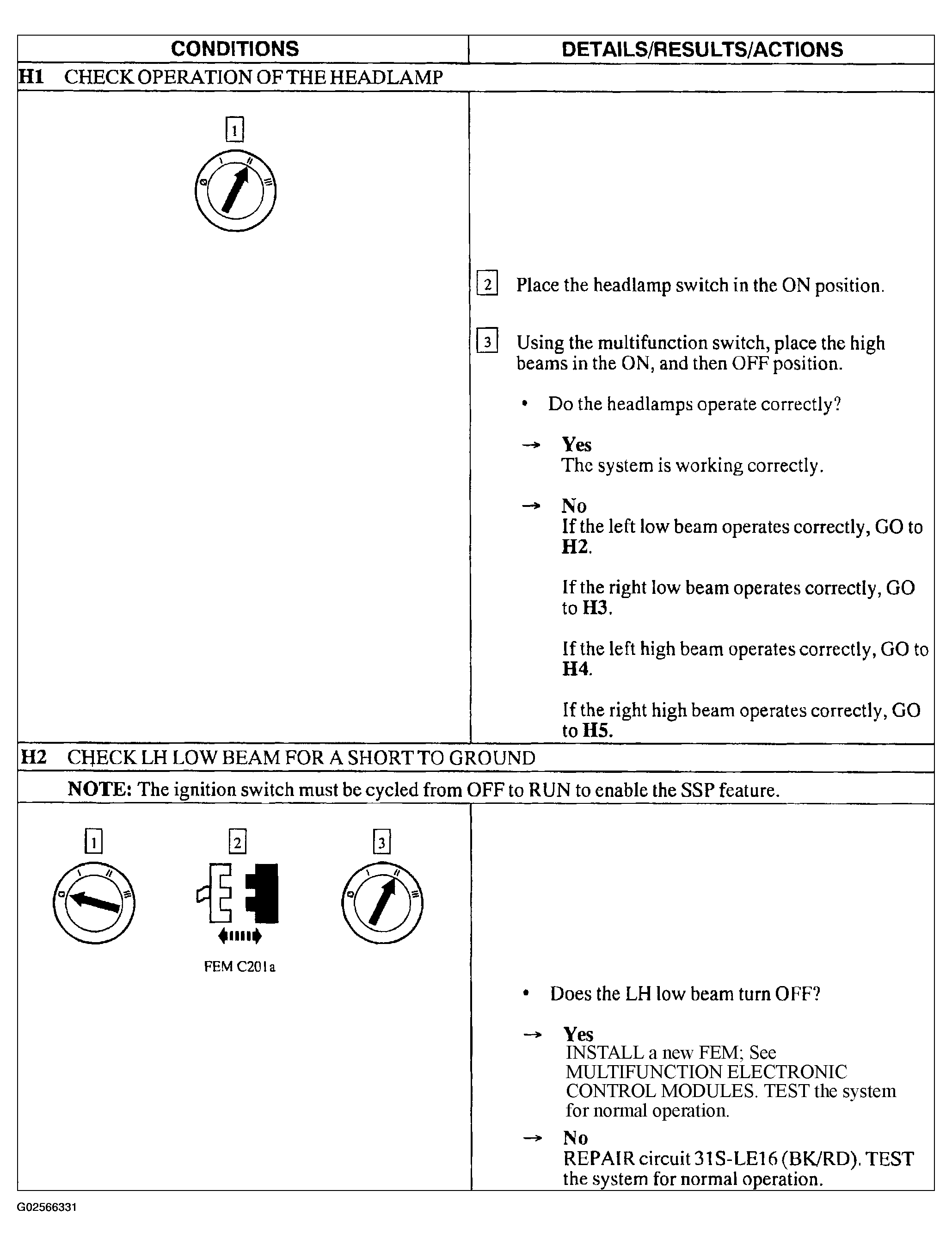

Fig 1: Pinpoint Test H: The Headlamps Are On Continuously - Single Low/High Beams (Steps H1-H2)

Courtesy of FORD MOTOR CO.

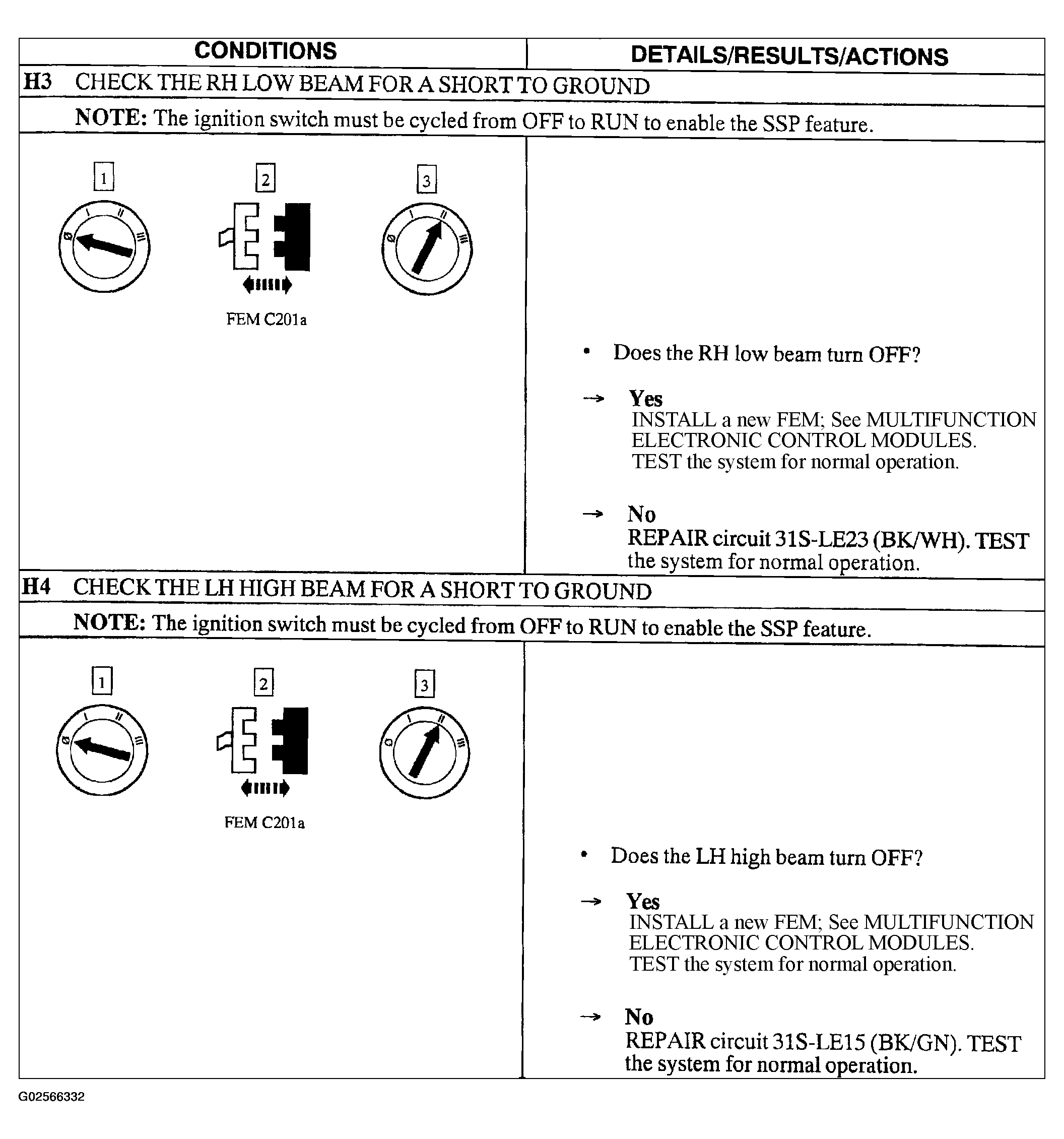

Fig 2: Pinpoint Test H: The Headlamps Are On Continuously - Single Low/High Beams (Steps H3-H4)

Courtesy of FORD MOTOR CO.

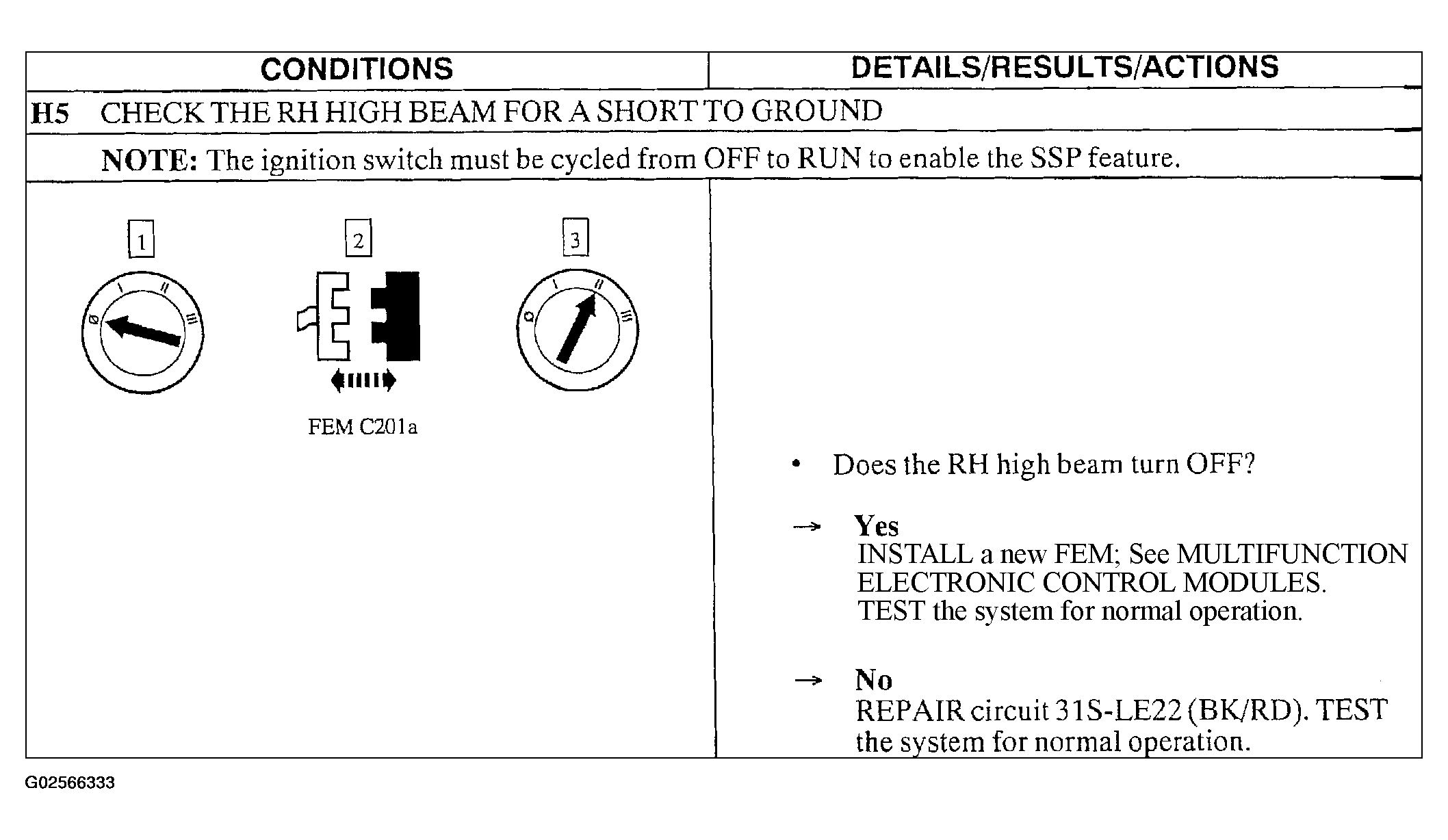

Fig 3: Pinpoint Test H: The Headlamps Are On Continuously - Single Low/High Beams (Step H5)

Courtesy of FORD MOTOR CO.
