Pinpoint Test B: No Communication With The Rear Electronic Module

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

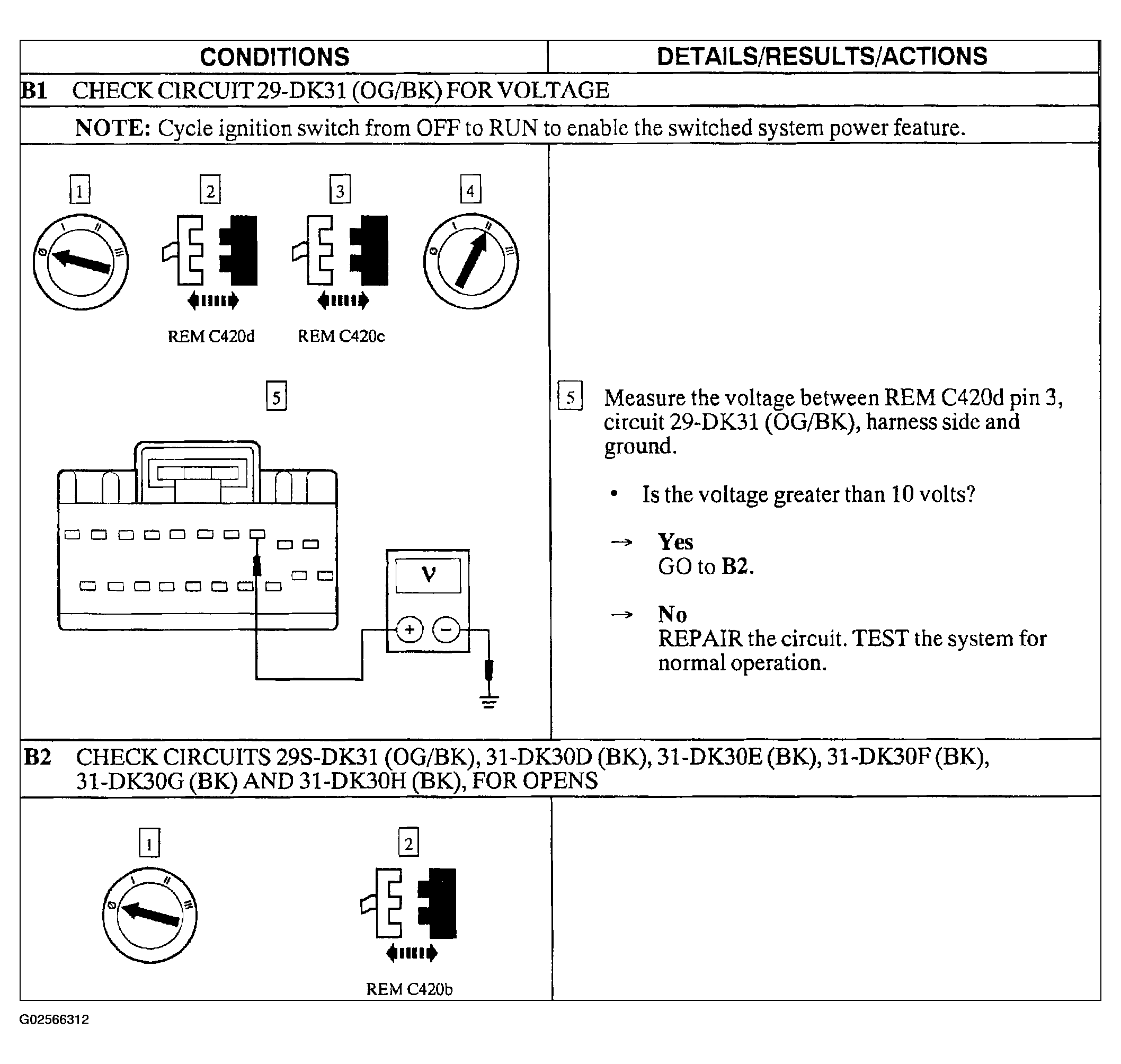

Fig 1: Pinpoint Test B: No Communication With The Rear Electronic Module (Steps B1-B2)

Courtesy of FORD MOTOR CO.

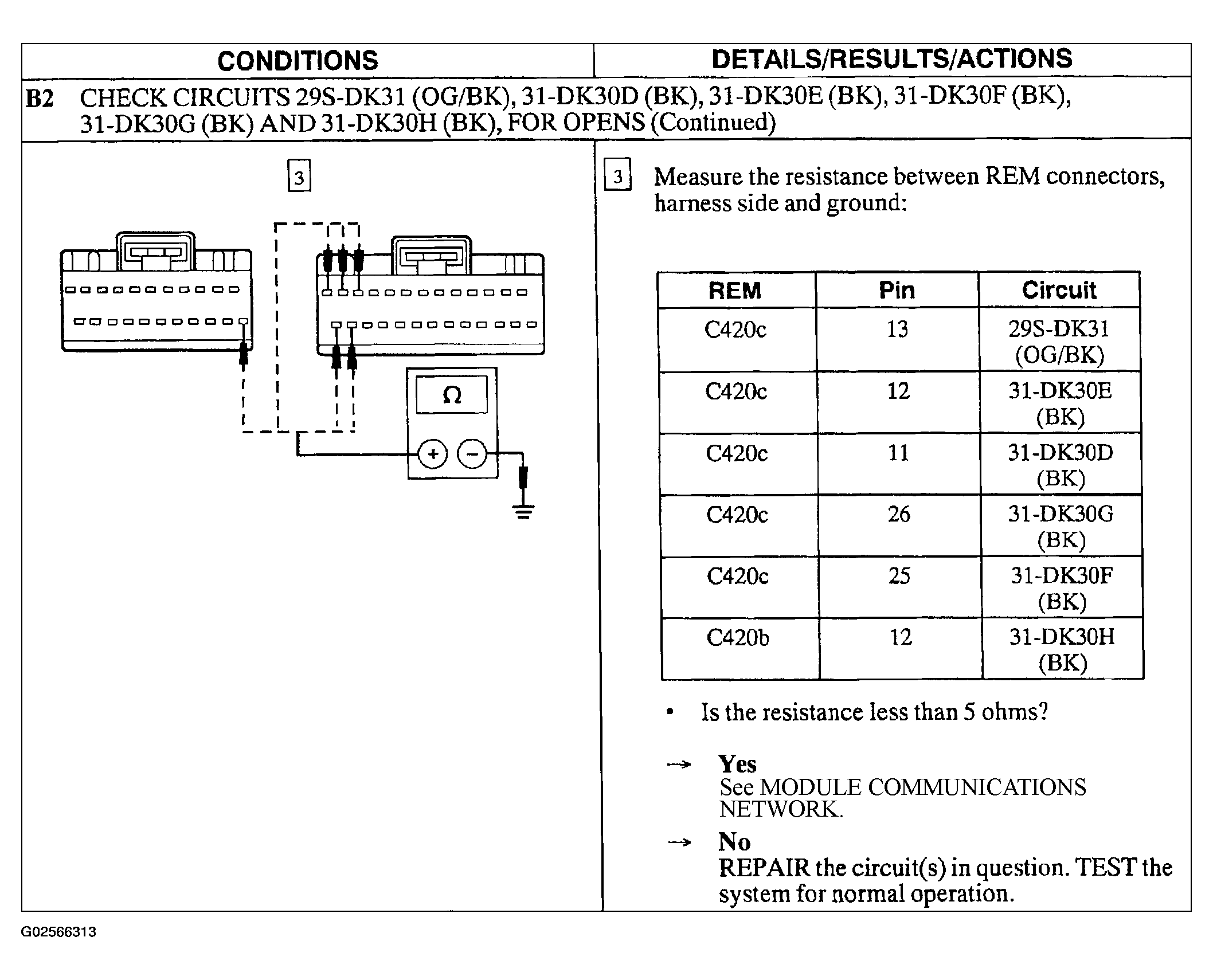

Fig 2: Pinpoint Test B: No Communication With The Rear Electronic Module (Step B2 Cont.)

Courtesy of FORD MOTOR CO.
