Pinpoint Test AR: The Individual Fog Lamp Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test AR: The Individual Fog Lamp Is Inoperative (Steps AR1-AR2)

Courtesy of FORD MOTOR CO.

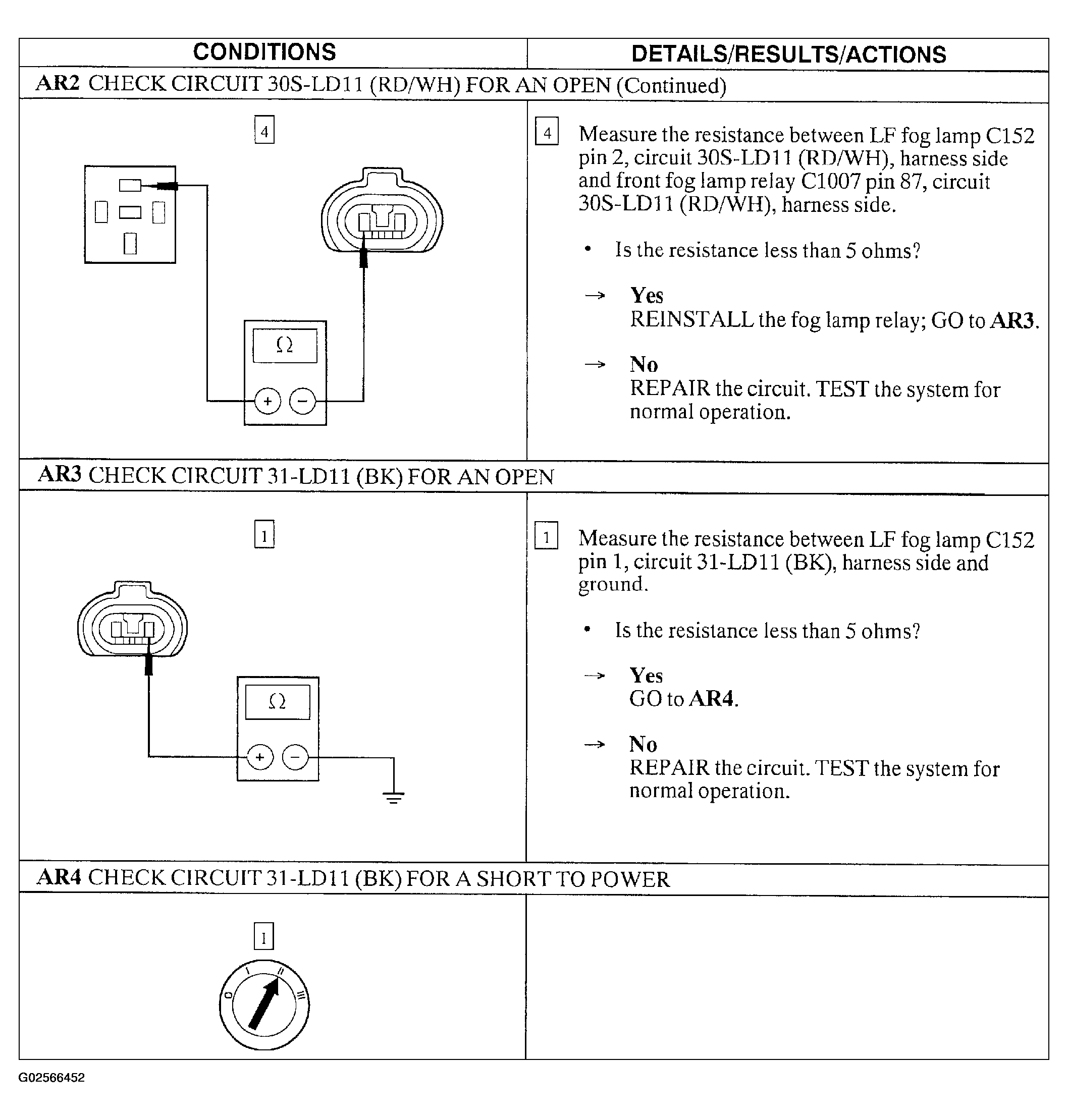

Fig 2: Pinpoint Test AR: The Individual Fog Lamp Is Inoperative (Steps AR2 Cont. -AR4)

Courtesy of FORD MOTOR CO.

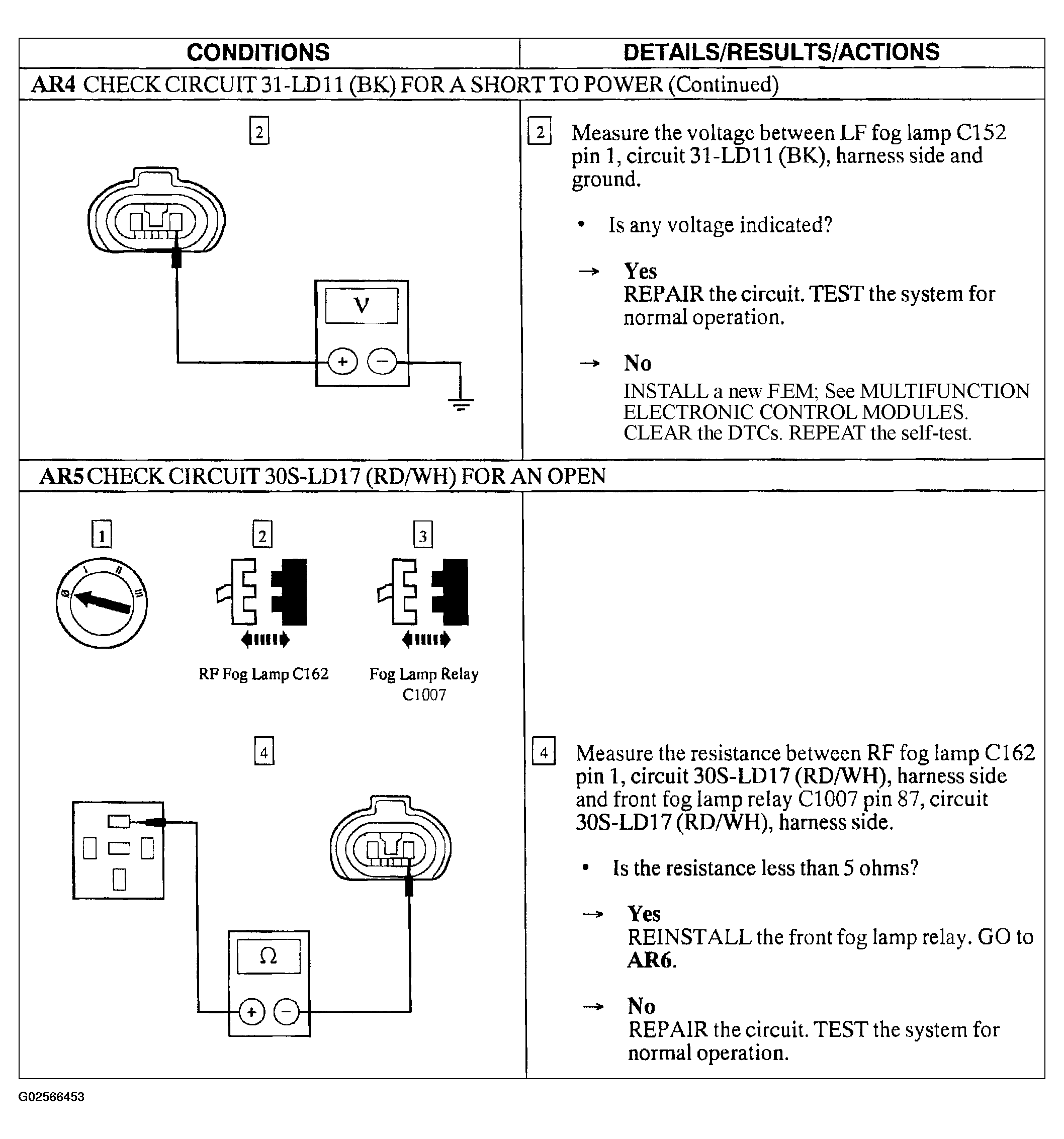

Fig 3: Pinpoint Test AR: The Individual Fog Lamp Is Inoperative (Steps AR4 Cont. -AR5)

Courtesy of FORD MOTOR CO.

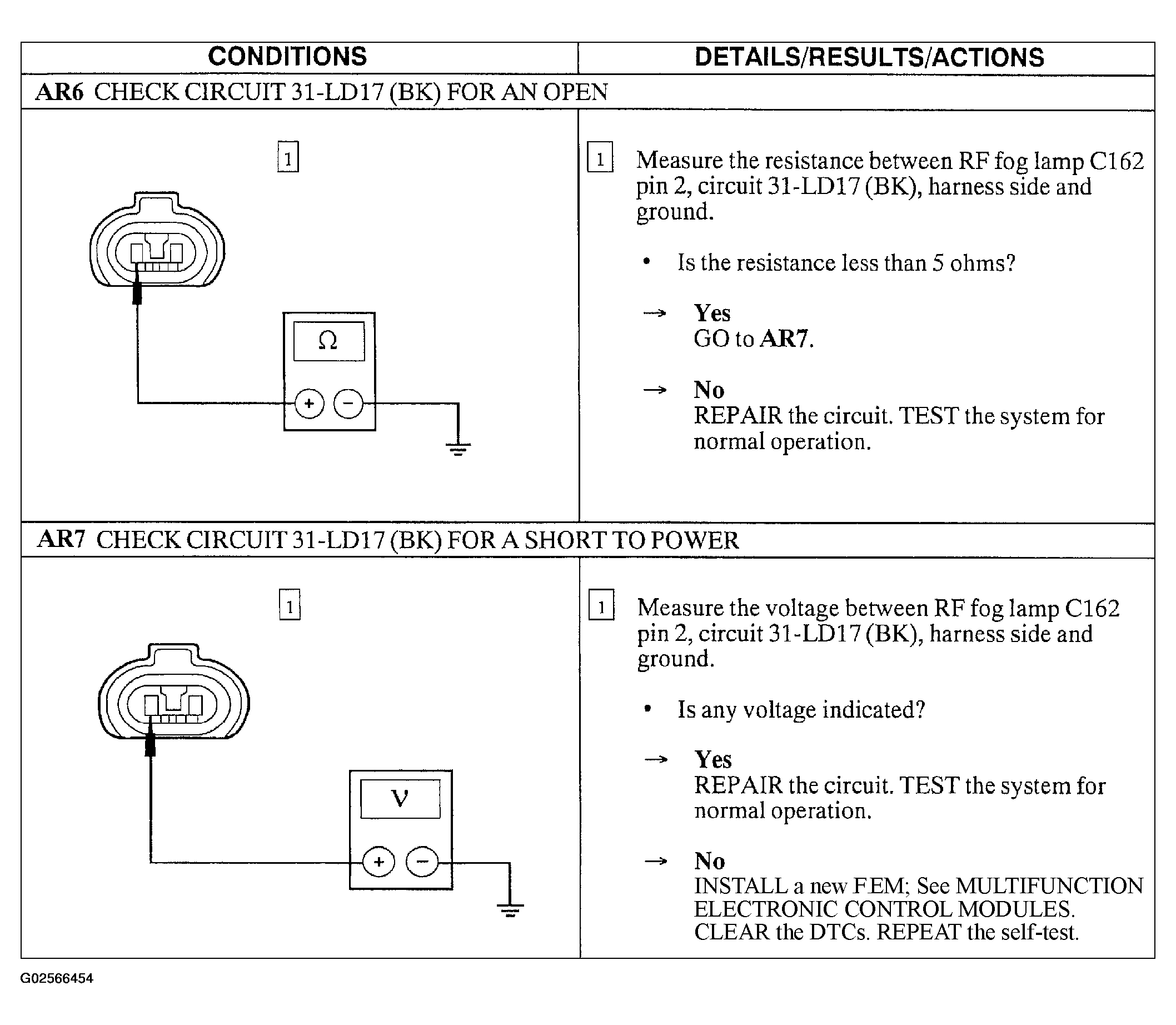

Fig 4: Pinpoint Test AR: The Individual Fog Lamp Is Inoperative (Steps AR6-AR7)

Courtesy of FORD MOTOR CO.
