Pinpoint Test AQ: The Fog Lamps Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

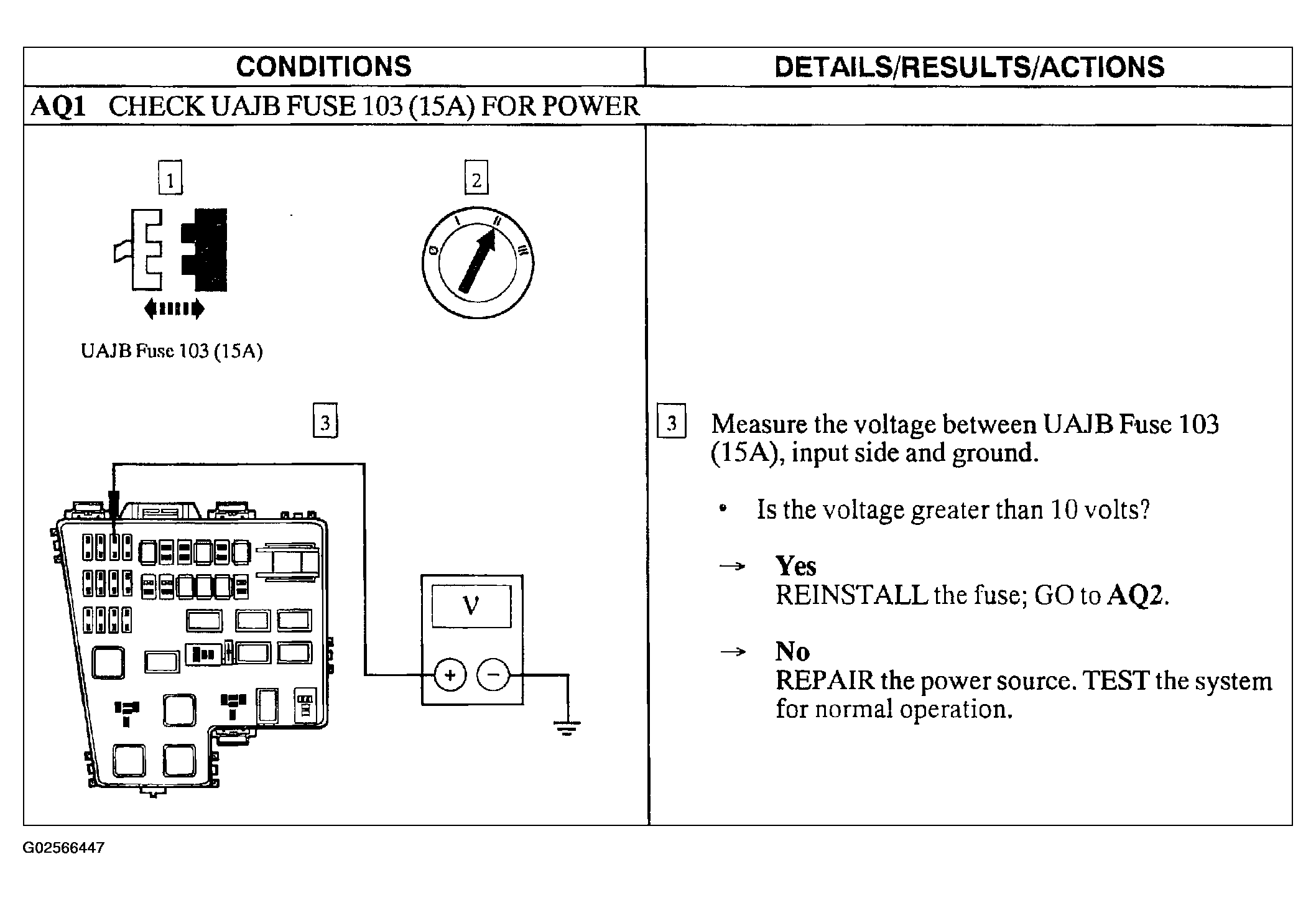

Fig 1: Pinpoint Test AQ: The Fog Lamps Are Inoperative (Step AQ1)

Courtesy of FORD MOTOR CO.

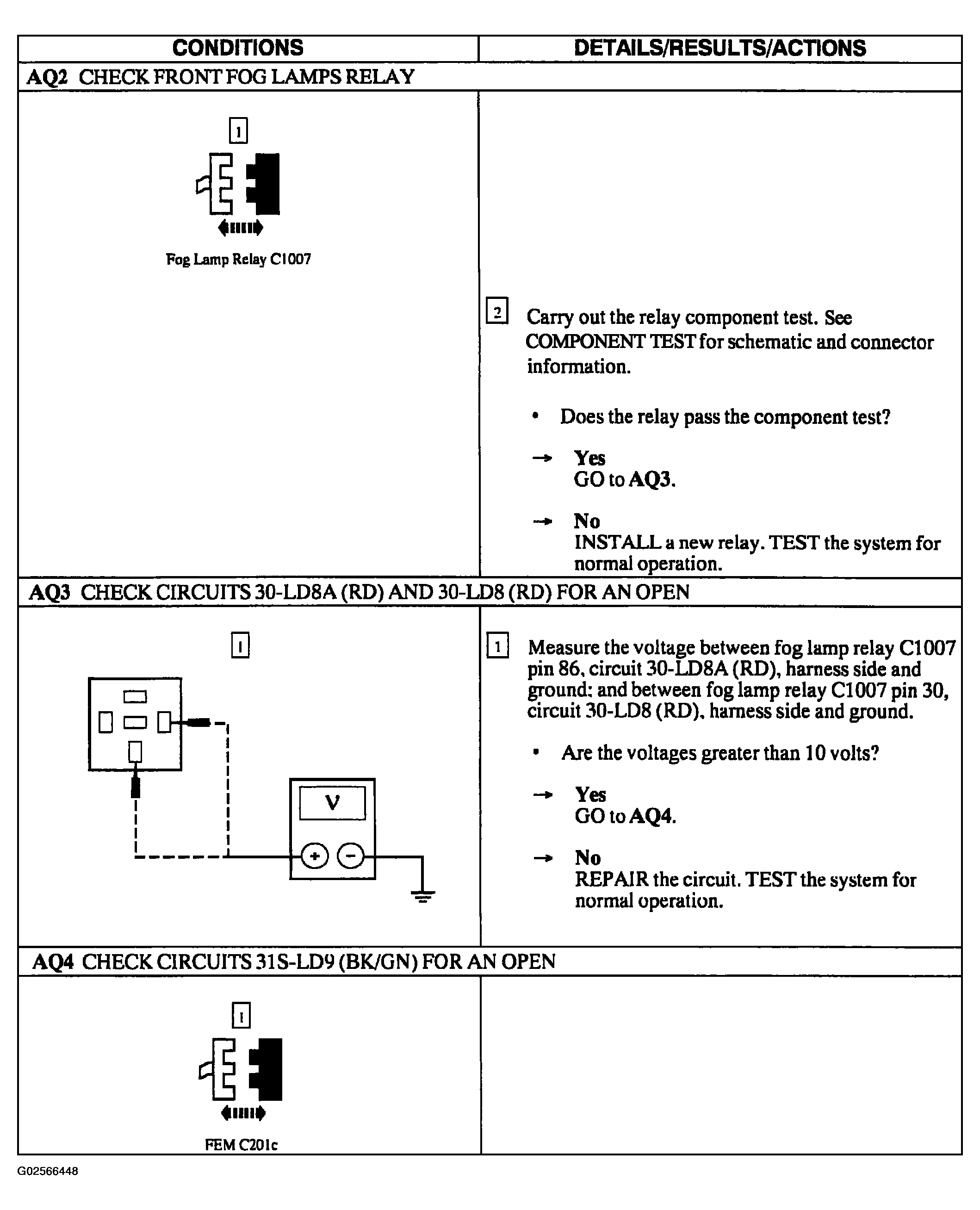

Fig 2: Pinpoint Test AQ: The Fog Lamps Are Inoperative (Steps AQ2-AQ4)

Courtesy of FORD MOTOR CO.

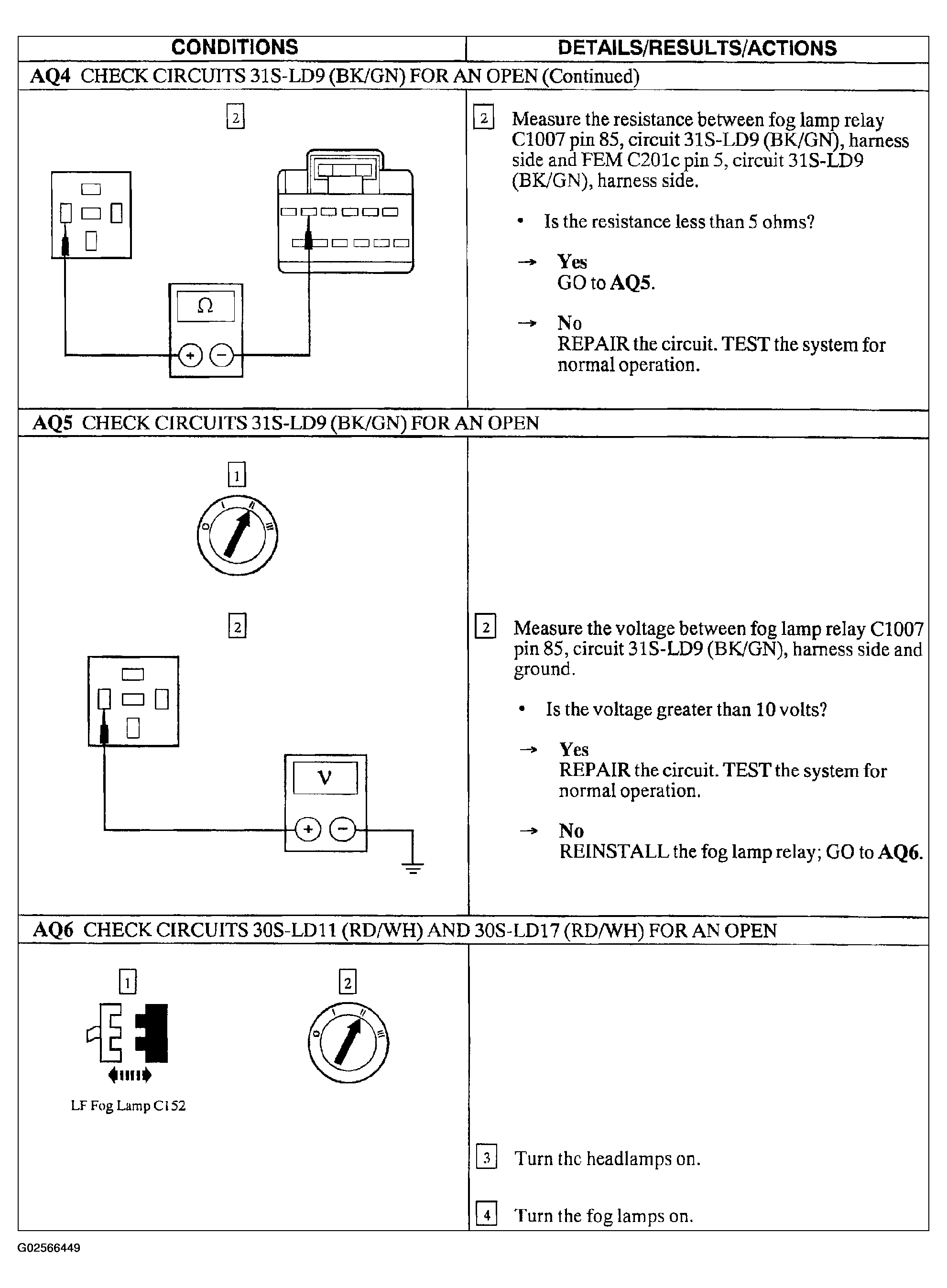

Fig 3: Pinpoint Test AQ: The Fog Lamps Are Inoperative (Steps AQ4 Cont. -AQ6)

Courtesy of FORD MOTOR CO.

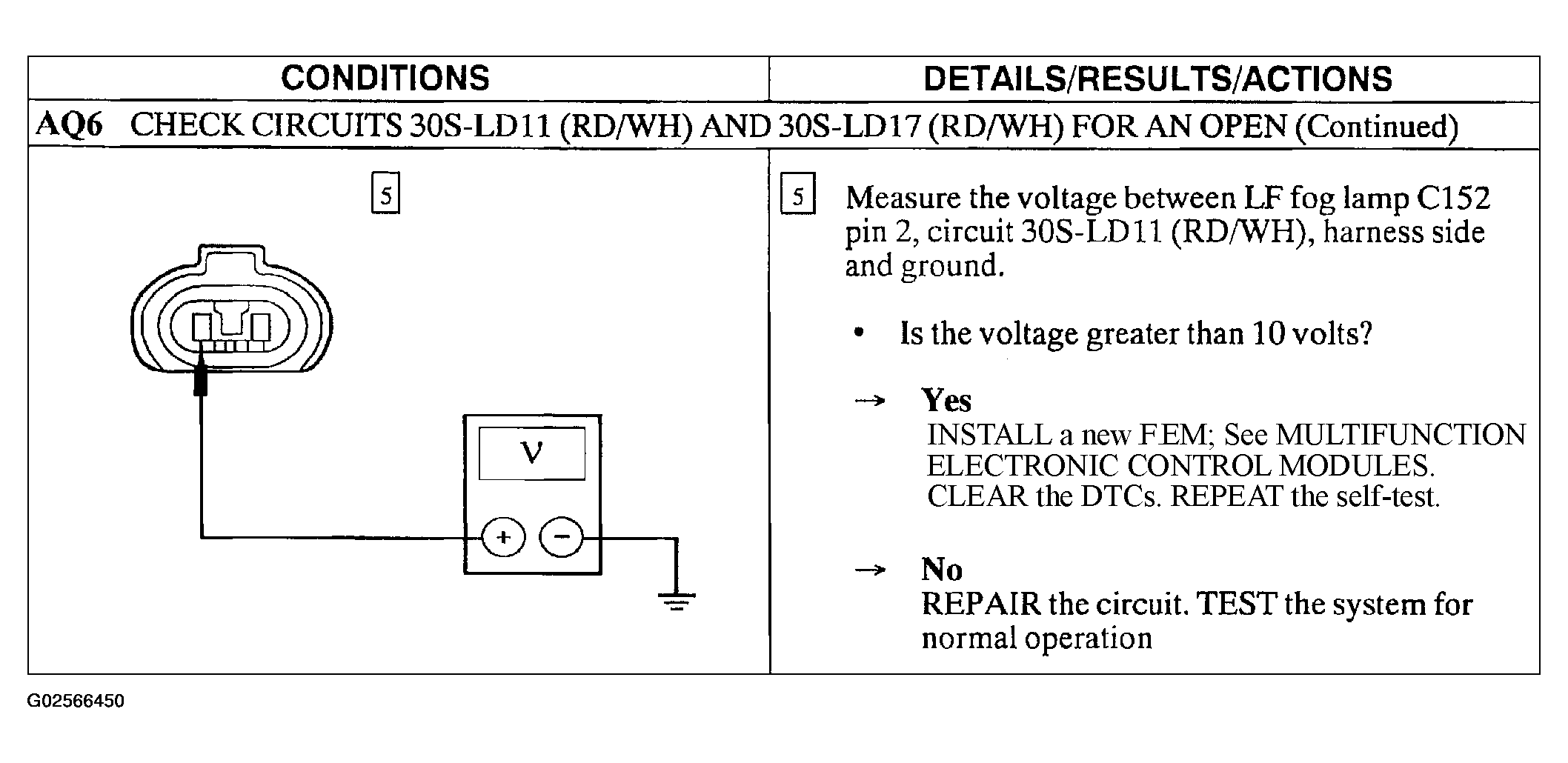

Fig 4: Pinpoint Test AQ: The Fog Lamps Are Inoperative (Step AQ6 Cont.)

Courtesy of FORD MOTOR CO.
