Pinpoint Test N: The Autolamps Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The ignition switch must be cycled from OFF to RUN to enable the SSP feature.

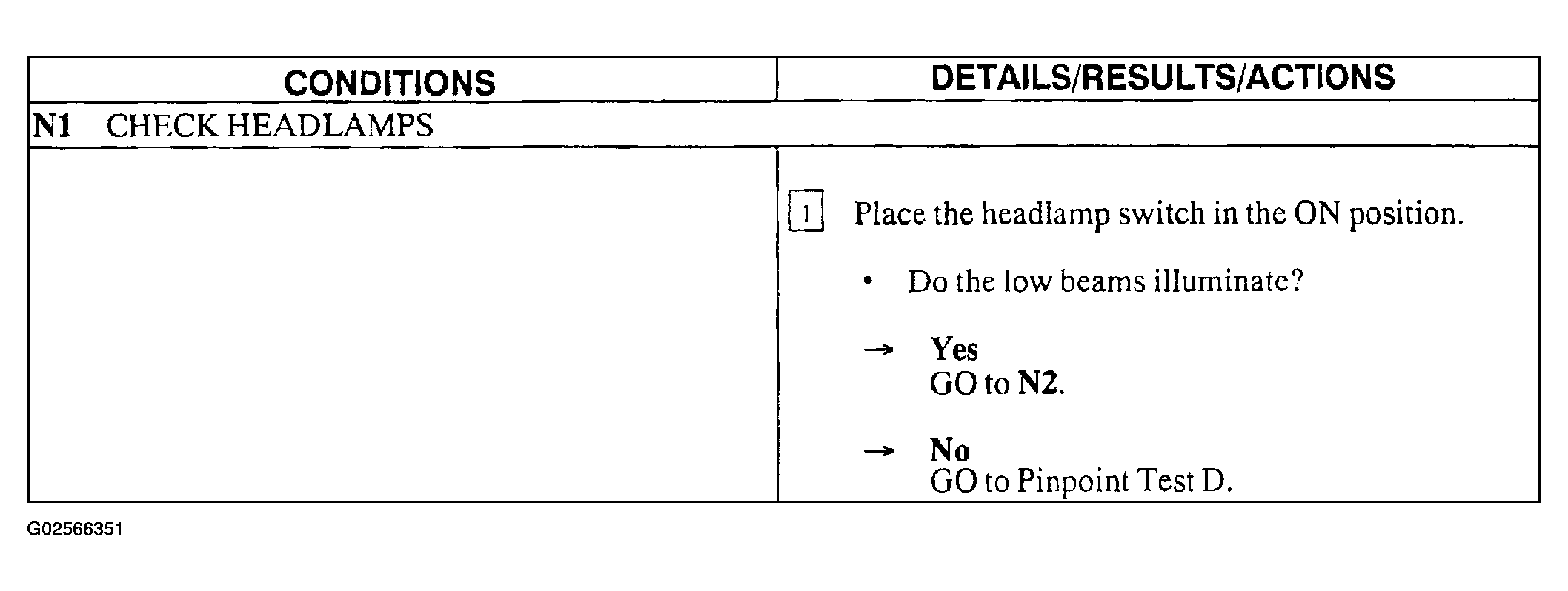

Fig 1: Pinpoint Test N: The Autolamps Are Inoperative (Step N1)

Courtesy of FORD MOTOR CO.

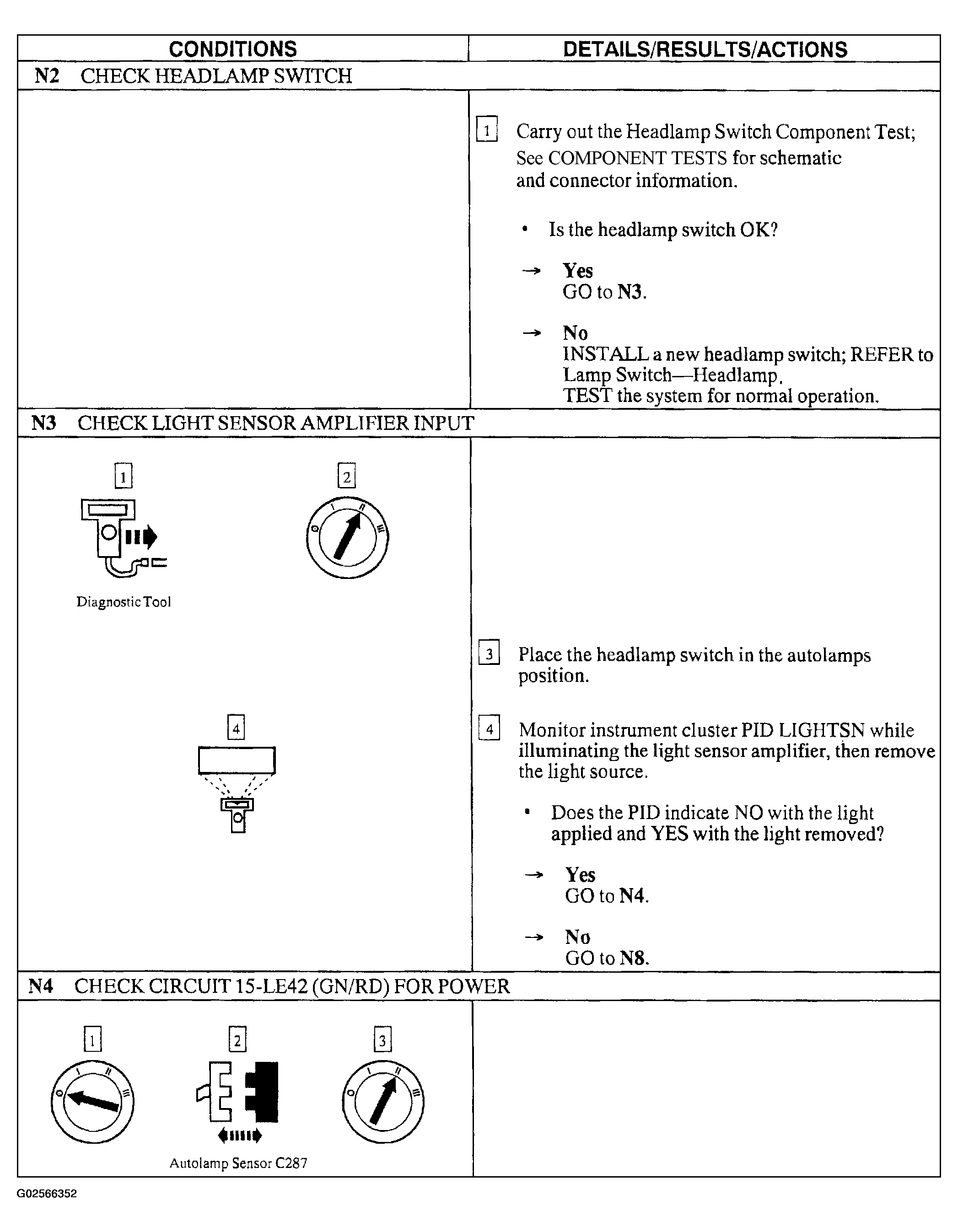

Fig 2: Pinpoint Test N: The Autolamps Are Inoperative (Steps N2-N4)

Courtesy of FORD MOTOR CO.

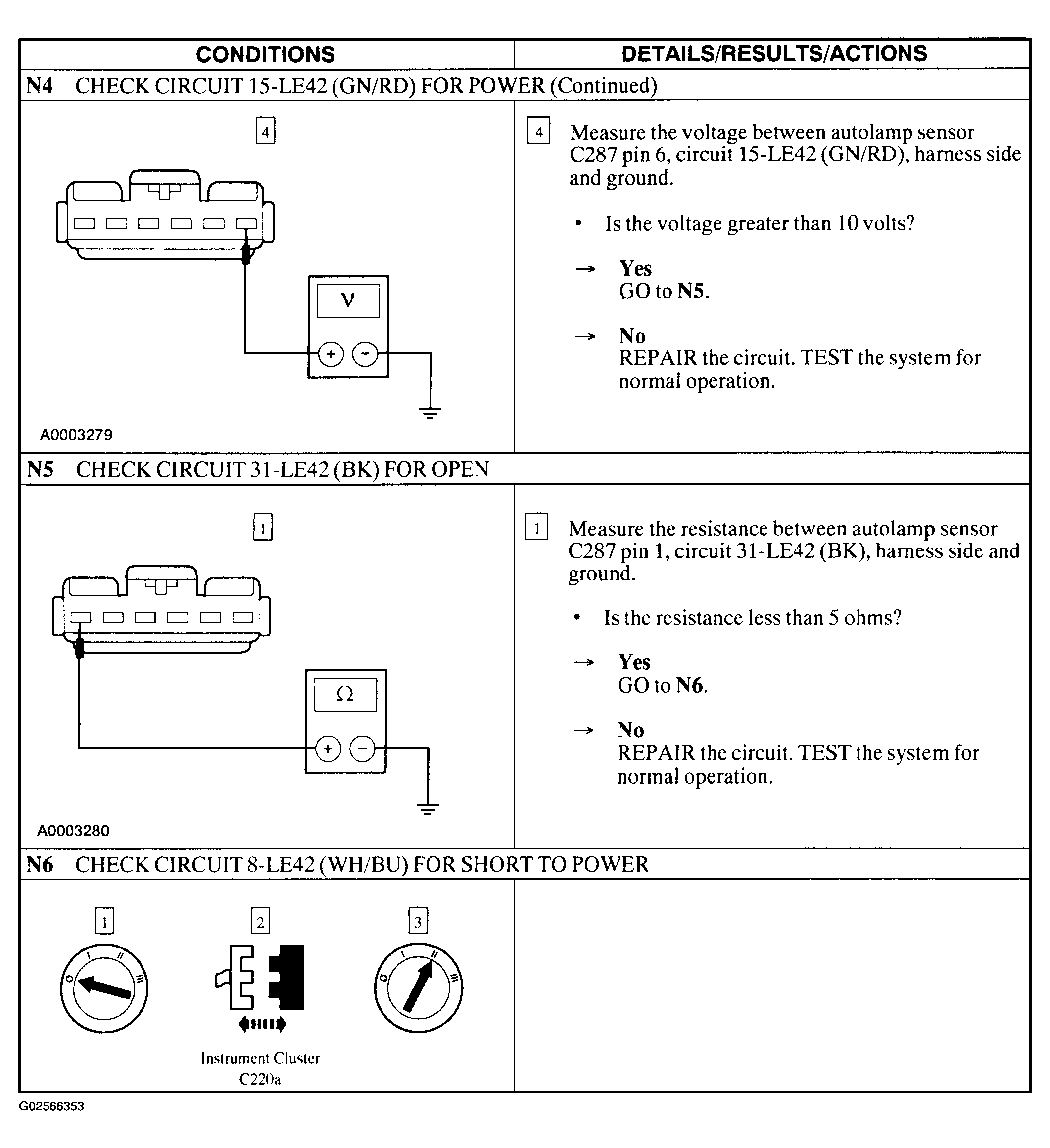

Fig 3: Pinpoint Test N: The Autolamps Are Inoperative (Steps N4 Cont. -N6)

Courtesy of FORD MOTOR CO.

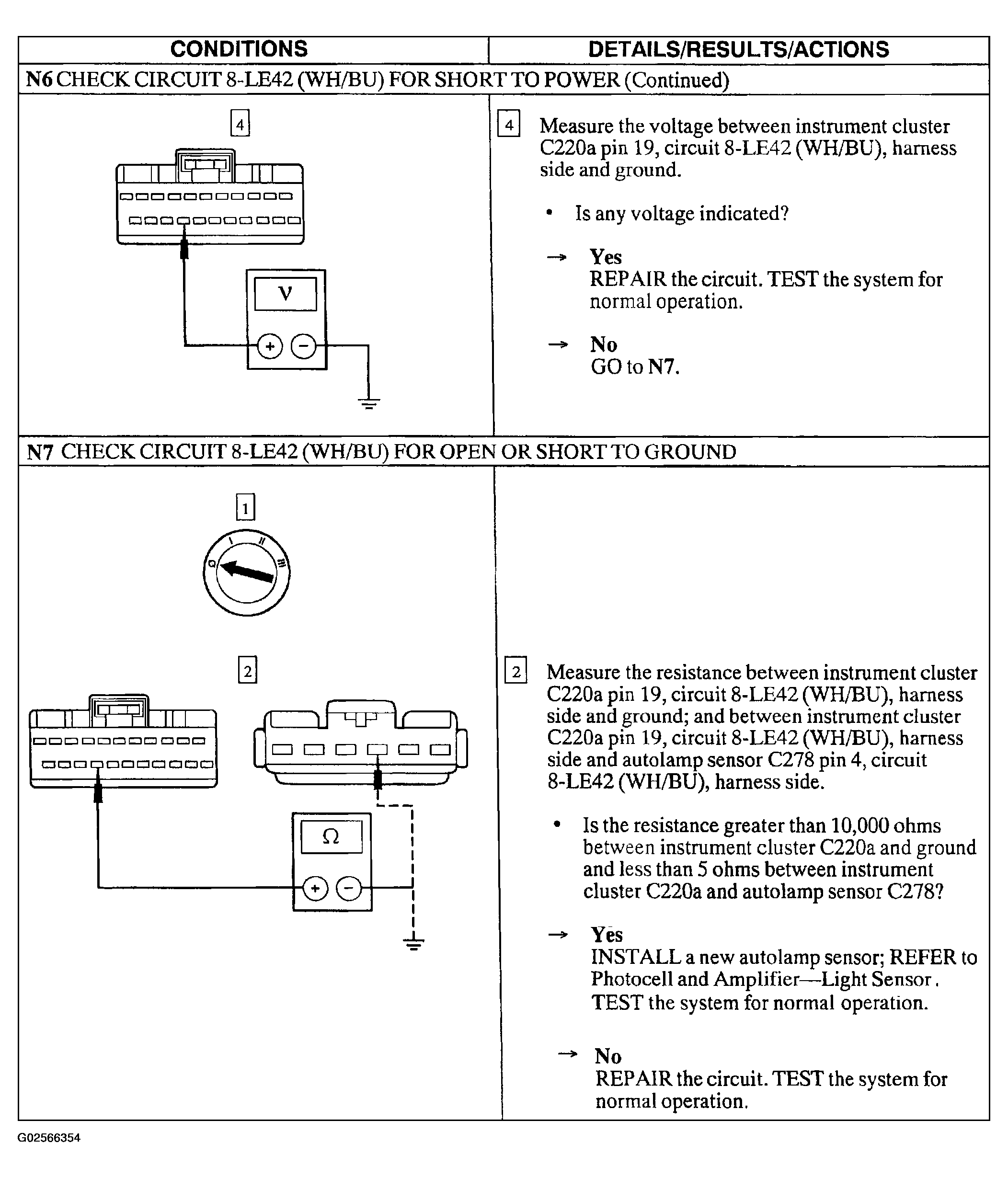

Fig 4: Pinpoint Test N: The Autolamps Are Inoperative (Steps N6 Cont. -N7)

Courtesy of FORD MOTOR CO.

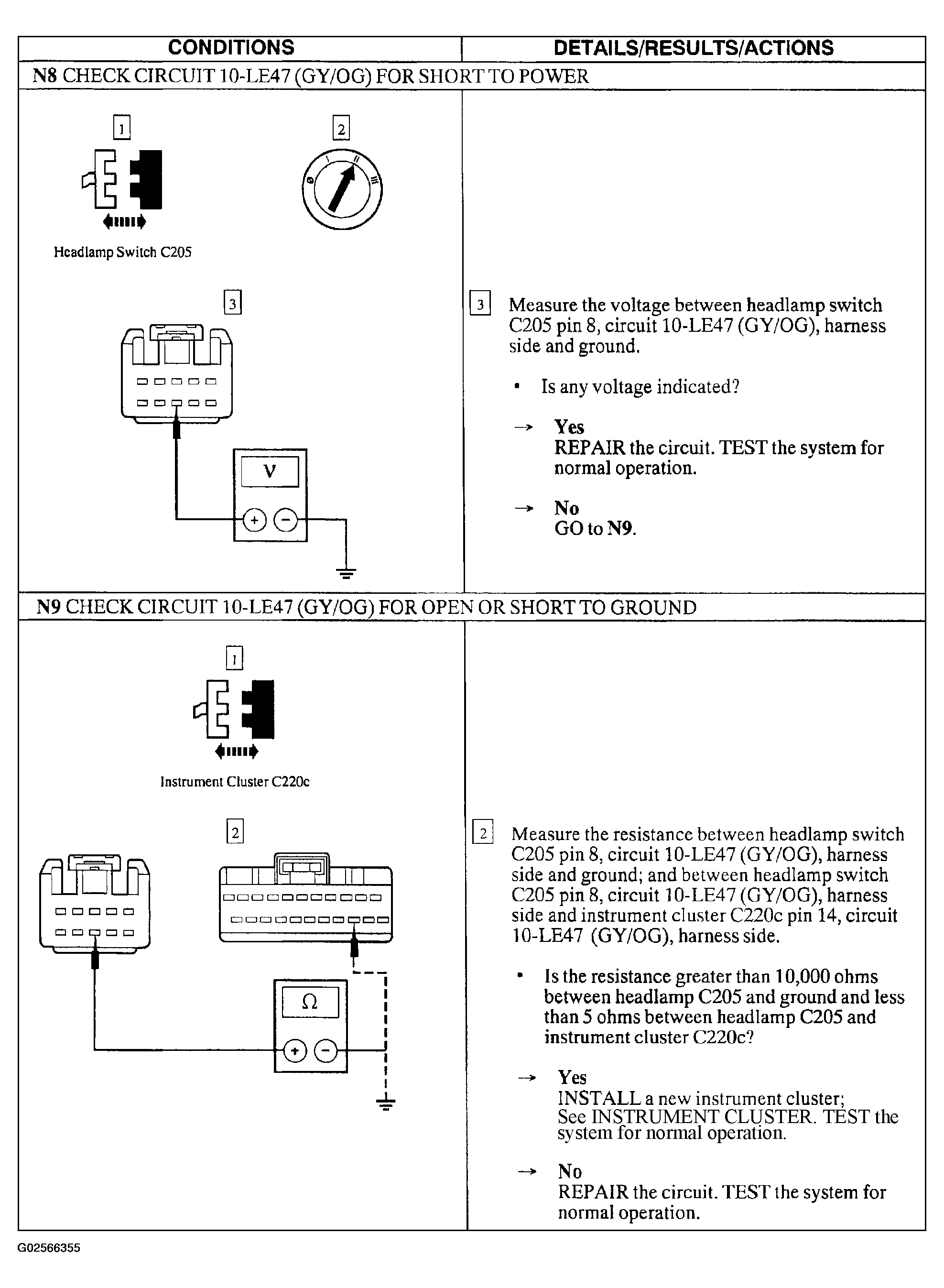

Fig 5: Pinpoint Test N: The Autolamps Are Inoperative (Steps N8-N9)

Courtesy of FORD MOTOR CO.
