Inspection and Verification

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Verify the customer concern by operating the autolamps following these steps:
    1. Place the ignition switch (11572) in the ON position.
    2. Place the headlamp switch (11654) in the ON position.
    3. NOTE: For headlamp concerns, refer to HEADLAMPS .
    4. Verify the low beam operation.
    5. Place the headlamps in the autolamp position.
    6. NOTE: When aiming light and covering the light sensor amplifier, there may be a one minute delay for the autolamps to change conditions.
    7. Verify the autolamp operation by aiming a light at the light sensor amplifier and removing the light source and covering the light sensor amplifier. The headlamps should turn OFF with the light and illuminate with the light sensor amplifier covered.
  2. Visually inspect for obvious signs of mechanical and electrical damage.

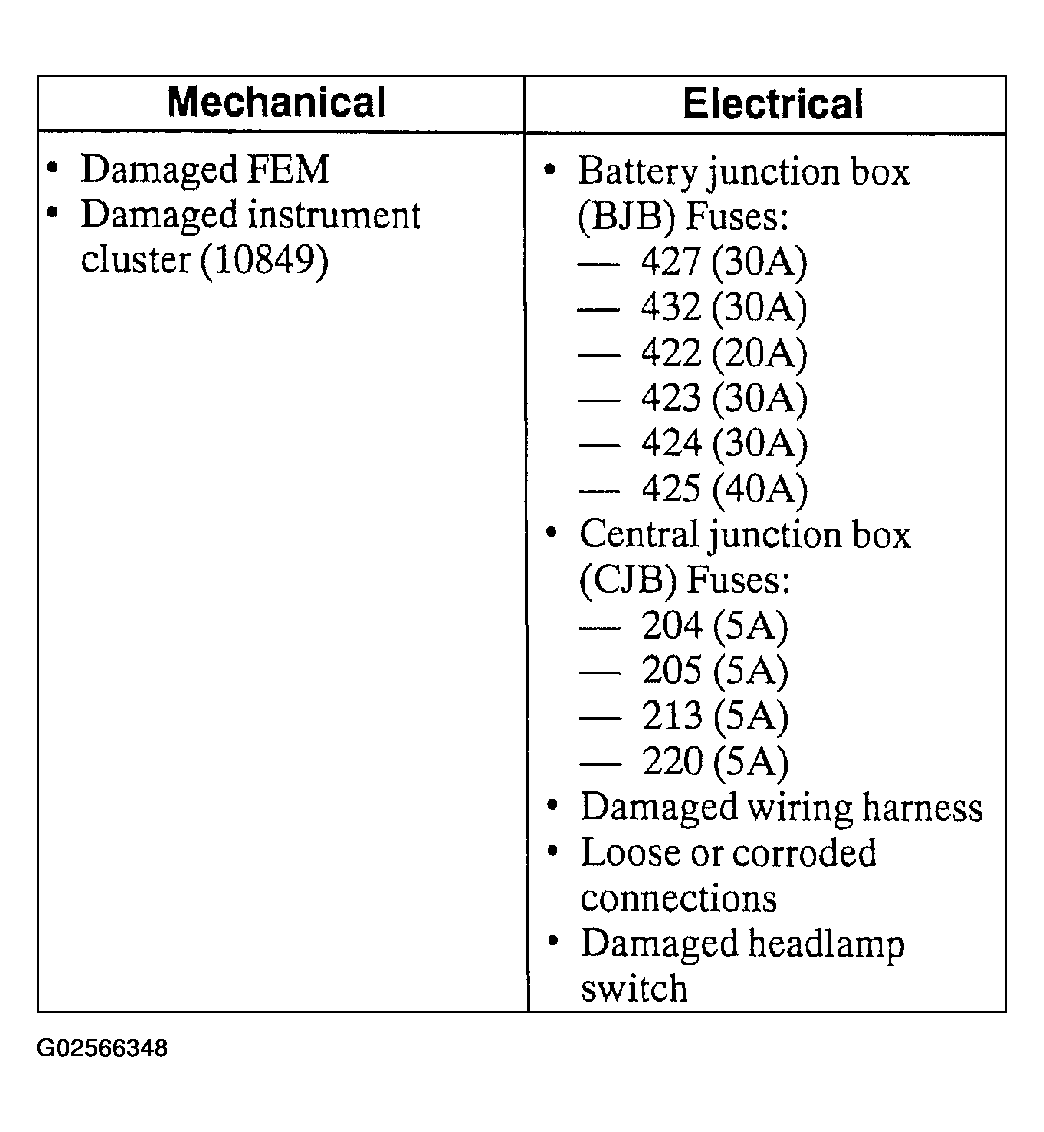

    Fig 1: Visual Inspection Chart
    G02566348Courtesy of FORD MOTOR CO.
  3. If the concern remains after the inspection, connect the diagnostic tool to the data link connector (DLC) located beneath the instrument panel and select the vehicle to be tested from the diagnostic tool menu. If the diagnostic tool does not communicate with the vehicle:
    • Check that the program card is correctly installed.
    • Check the connections to the vehicle.
    • Check the ignition switch position.
  4. If the diagnostic tool still does not communicate with the vehicle, refer to the diagnostic tool manual.
  5. Carry out the DATA LINK DIAGNOSTIC TEST. If the diagnostic tool responds with:
    • CKT 914, CKT 915 or CKT 70 = ALL ECUS NO RESP/NOT EQUIP, see MODULE COMMUNICATIONS NETWORK .
    • NO RESP/NOT EQUIP for FEM, go to PINPOINT TEST A .
    • NO RESP/NOT EQUIP for instrument cluster, go to PINPOINT TEST C .
    • SYSTEM PASSED, retrieve and record the continuous diagnostic trouble codes (DTCs), erase the continuous DTCs and carry out self-test diagnostics for the FEM.
  6. If the DTCs retrieved are related to the concern, go to FEM DIAGNOSTIC TROUBLE CODE (DTC) INDEX , REM DIAGNOSTIC TROUBLE CODE (DTC) INDEX , INSTRUMENT CLUSTER DIAGNOSTIC TROUBLE CODE (DTC) INDEX , or SSP RELAY INDEX  to continue diagnostics. Refer to HEADLAMPS .
  7. If no DTCs related to the concern are retrieved, proceed to SYMPTOM CHART  to continue diagnostics.
