Electrical Shift on the Fly (ESOF) Vacuum Schematic: Notes

WARNING: This page is about a different car, the 2001 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

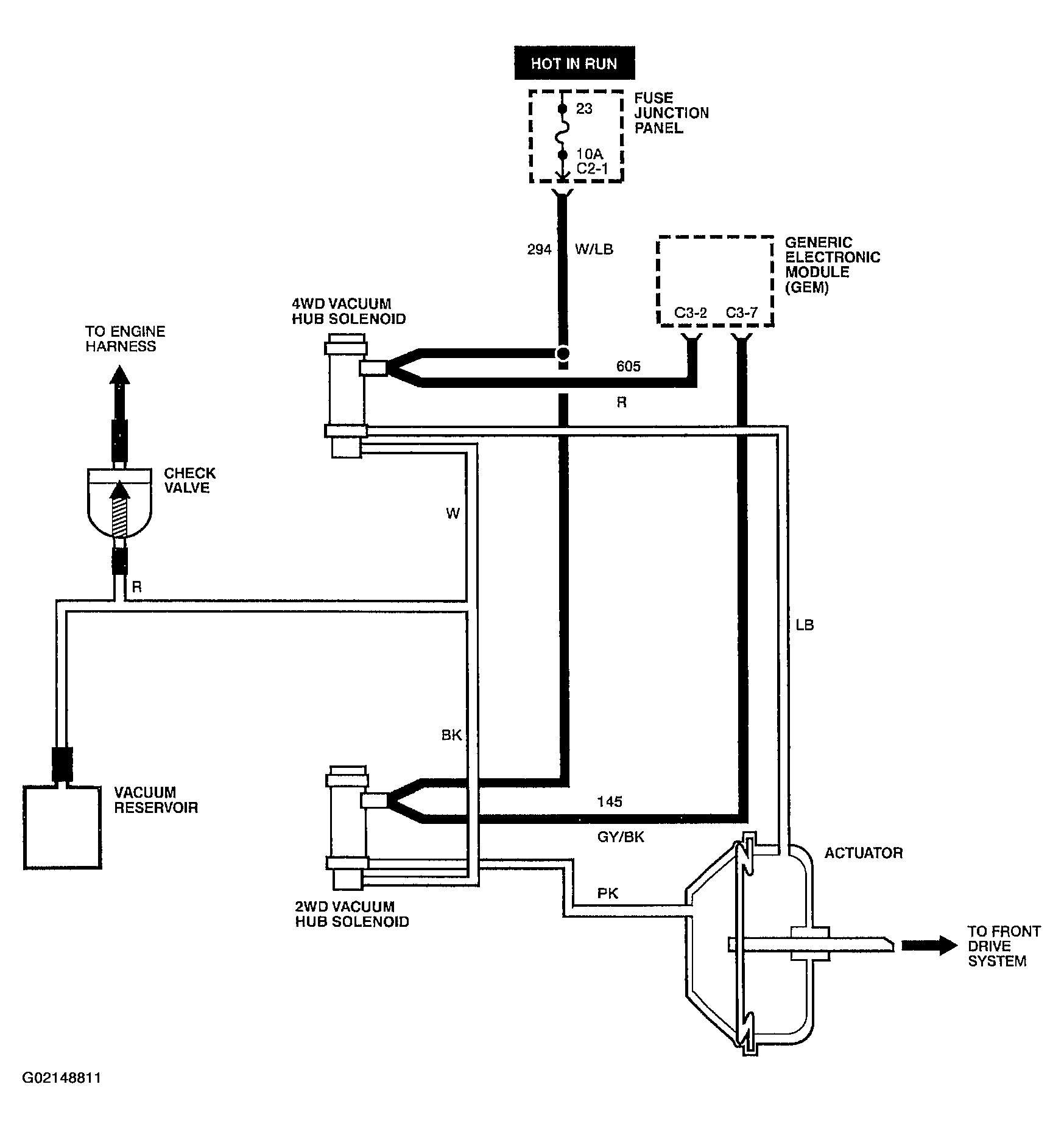

Fig 1: Electrical Shift On The Fly (ESOF) Vacuum Schematic
G02148811
