Steering Column Lock Actuator: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the steering column. For additional information, see STEERING COLUMN .
  2. Remove the steering column lock actuator.
    1. Remove the screws.
    2. Remove the steering column lock actuator.

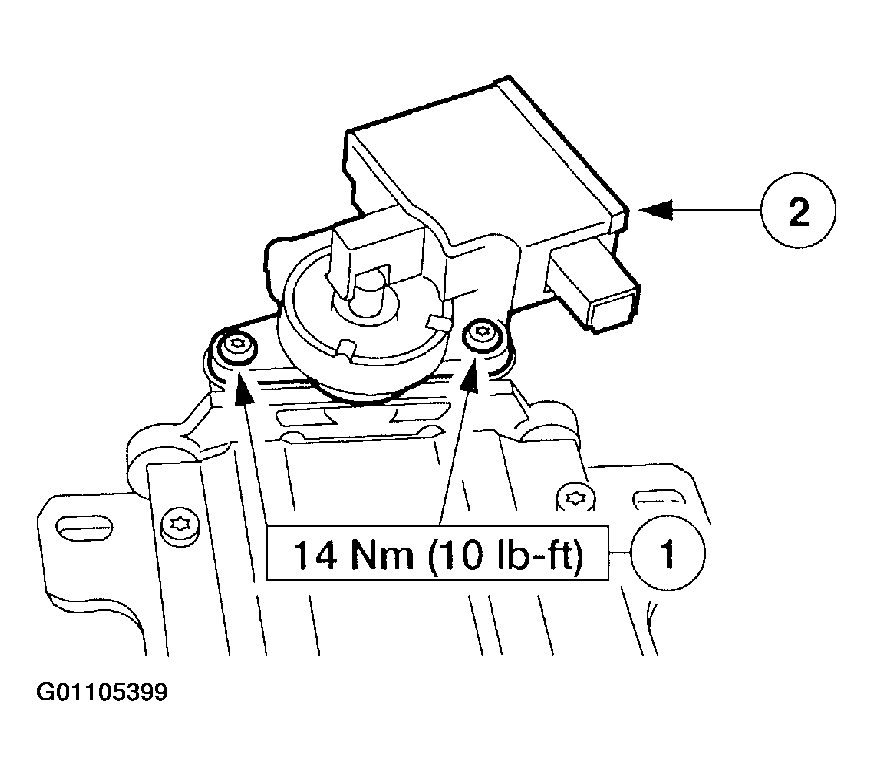

    Fig 1: Removing Steering Column Lock Actuator
    G01105399Courtesy of FORD MOTOR CO.
